SFP+
Overview
LongXing's SFP+ transceiver are multi-purpose optical modules for 10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fibre Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-SW/SR/LR/ER, 1000 Base-SX Ethernet.
Features
l Compliant to SFP+ Electrical MSA SFF-8431
l Compliant to SFP+ Mechanical MSA SFF-8432
l Multi rate of up to 11.3Gb/s
l 10G Ethernet compliance
l Transmission distance up to 80km
l Low power consumption
l 0 to +70C case operating temperature range
l Laser Class 1 IEC / CDRH compliant
l RoHS 6 Compliant
l Compliant with product safety standards
| Specifications | |||||||||
| Package | P/N | Data Rate | Wavelength | OSA Type | Distance | Connector | Case Temp. | DDM | Application |
| SFP+ | LXD7AM39-DCL | 9.95~10.3G | 850nm | VSCEL/PIN | <300m | LC | 0~70 | D | 10G, 10GFC |
| SFP+ | LXD7AM39-DEL | 9.95~10.3G | 850nm | VSCEL/PIN | <300m | LC | -10~85 | D | 10G, 10GFC |
| SFP+ | LXD7BM29-DCL | 9.95~10.3G | 1310nm | FP/PIN | <220m | LC | 0~70 | D | 10G, 10GFC |
| SFP+ | LXD7B029-DCL | 9.95~10.3G | 1310nm | FP/PIN | 2km | LC | 0~70 | D | 10G, 10GFC |
| SFP+ | LXD7B029-DIL | 9.95~10.3G | 1310nm | FP/PIN | 2km | LC | -40~85 | D | 10G, 10GFC |
| SFP+ | LXD7D109-DCL | 9.95~10.3G | 1310nm | DFB/PIN | 10km | LC | 0~70 | D | 10G, 10GFC |
| SFP+ | LXD7D109-DIL | 9.95~10.3G | 1310nm | DFB/PIN | 10km | LC | -40~85 | D | 10G, 10GFC |
| SFP+ | LXD7D209-DCL | 9.95~10.3G | 1310nm | DFB/PIN | 20km | LC | 0~70 | D | 10G, 10GFC |
| SFP+ | LXD7D209-DIL | 9.95~10.3G | 1310nm | DFB/PIN | 20km | LC | -40~85 | D | 10G, 10GFC |
| SFP+ | LXD7D409-DCL | 9.95~10.3G | 1310nm | DFB/PIN | 40km | LC | 0~70 | D | 10G, 10GFC |
| SFP+ | LXD7D409-DIL | 9.95~10.3G | 1310nm | DFB/PIN | 40km | LC | -40~85 | D | 10G, 10GFC |
| SFP+ | LXD7F709-DCL | 9.95~10.3G | 1310nm | DFB/APD | 70km | LC | 0~70 | D | 10G, 10GFC |
| SFP+ | LXD7E409-DCL | 9.95~10.3G | 1550nm | EML/PIN | 40km | LC | 0~70 | D | 10G, 10GFC |
| SFP+ | LXD7G809-DCL | 9.95~10.3G | 1550nm | EML/APD | 80km | LC | 0~70 | D | 10G, 10GFC |
| SFP+ | LXD7GA09-DCL | 9.95~10.3G | 1550nm | EML/APD | 100km | LC | 0~70 | D | 10G, 10GFC |

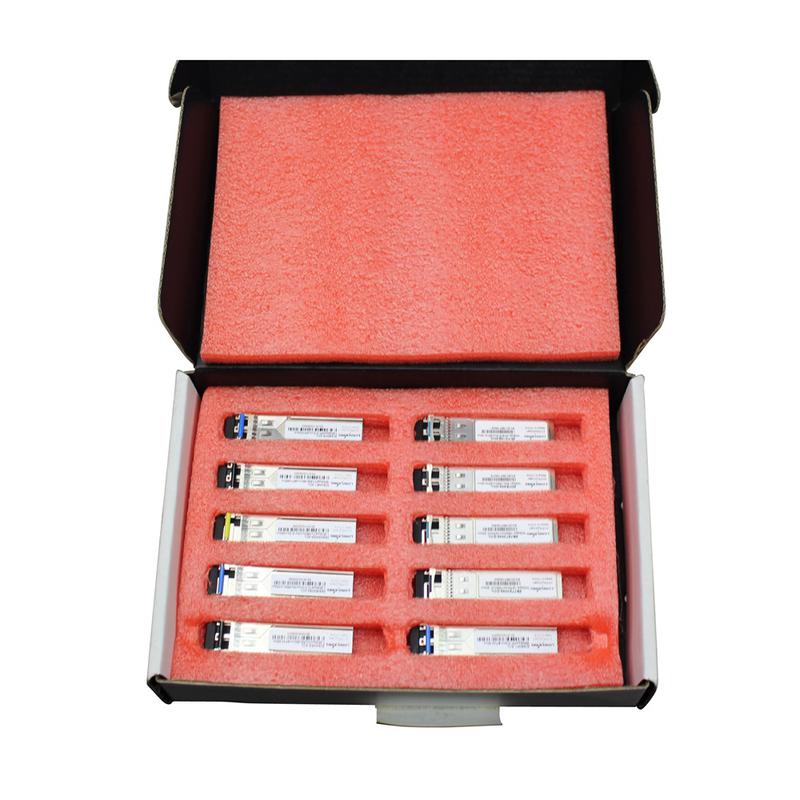

| Shipping Information | |
| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*H*D) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.5 KG |
| Lead Time | 10-15 working days normally |
