CLOSURES
LongXing optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection.

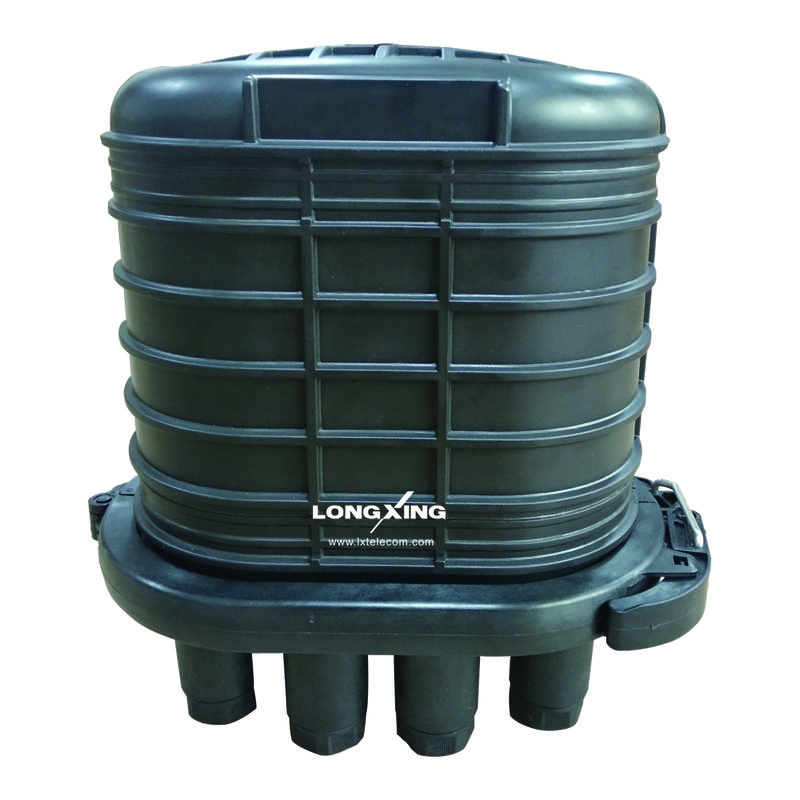

Dome Fiber Optic Splice Closure GPJ83-D18
Capacity: Customizable
Dimensions: Variable
Material: Plastic (PC)
Design Style: Dome
Adapter Type: N/A
Applications: Aerial/Pole/Wall
No.of Cable Entries & Exits: 7/9
Color: Black
Key Feature: Dome

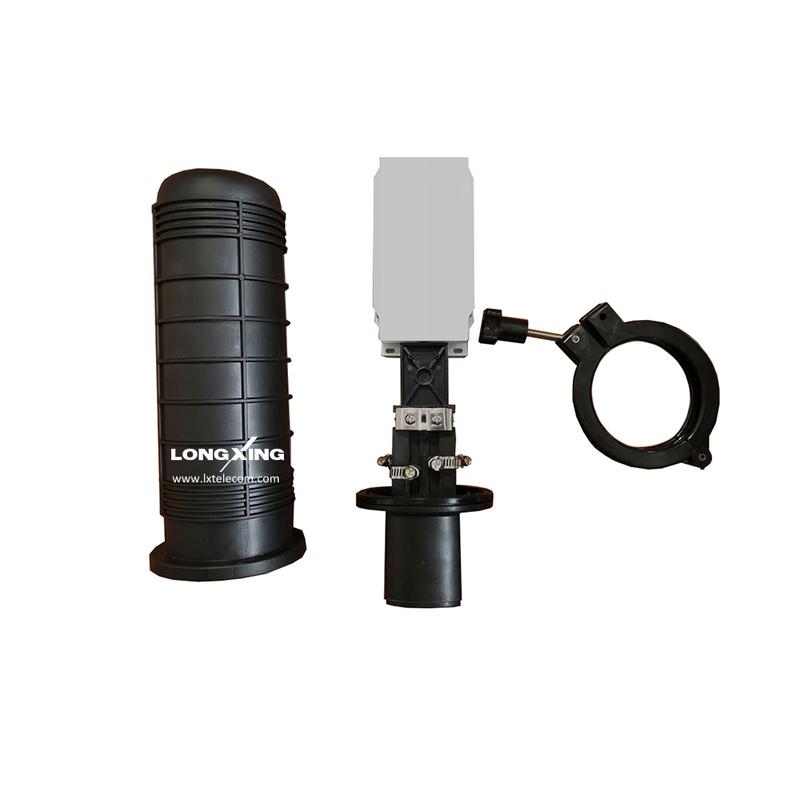

Dome Fiber Optic Splice Closure GPJ83-D16
Capacity: 12 (Single)/24 (Single)
Dimensions: (φ)85*(L)300 mm
Material: Plastic (PC)
Design Style: Dome
Adapter Type: N/A
Applications: Aerial/Underground/Burial
No.of Cable Entries & Exits: 1/2
Color: Black
Key Feature: Dome
Fiber Optic Splice Closure GPJ83-H16
Capacity: Bundle 288 cores
Dimensions: 395*245*130 mm
Material: Plastic (PP)
Design Style: Horizontal
Adapter Type: N/A
Applications: Aerial/Pipelined/Wall mounting/Manhole
No.of Cable Entries & Exits: 1 oval uncut port/6 round ports
Color: Black
Key Feature: Horizontal
Fiber Optic Splice Closure GPJ83-H15
Capacity: Bundle 96 cores
Dimensions: 385*245*130 mm
Material: Plastic (PP)
Design Style: Horizontal
Adapter Type: N/A
Applications: Aerial/Pipelined/Wall mounting/Manhole
No.of Cable Entries & Exits: 1 oval uncut port/6 round ports/16 drop cable ports
Color: Black
Key Feature: Horizontal
Fiber Optic Splice Closure GPJ83-H14
Capacity: Bundle48/Ribbon72 cores
Dimensions: 336*180*100 mm
Material: Plastic (PC)
Design Style: Horizontal
Adapter Type: N/A
Applications: Aerial/Underground/Burial
No.of Cable Entries & Exits: 4 pieces on each side (total 8 pieces)
Color: Black
Key Feature: Horizontal
Fiber Optic Splice Closure GPJ83-H13
Capacity: Bundle96/Ribbon144 cores
Dimensions: 460*182*120 mm
Material: Plastic (PC)
Design Style: Horizontal
Adapter Type: N/A
Applications: Aerial/Underground/Burial
No.of Cable Entries & Exits: 2 pieces on each side (total 4 pieces)
Color: Black
Key Feature: Horizontal

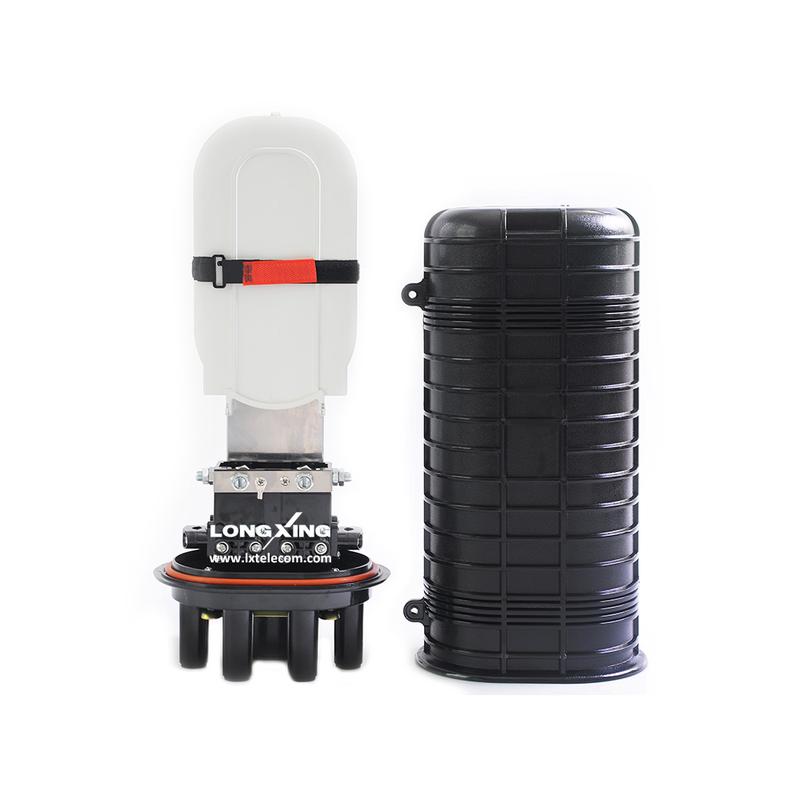

Fiber Optic Splice Closure GPJ83-D13
Capacity: Bundle 288/Ribbon 864 cores
Dimensions: (φ)220*(L)490 mm
Material: Plastic (PC)
Design Style: Dome
Adapter Type: N/A
Applications: Aerial/Underground/Burial
No.of Cable Entries & Exits: 6 pieces in general (max 6 pieces)
Color: Black
Key Feature: Dome

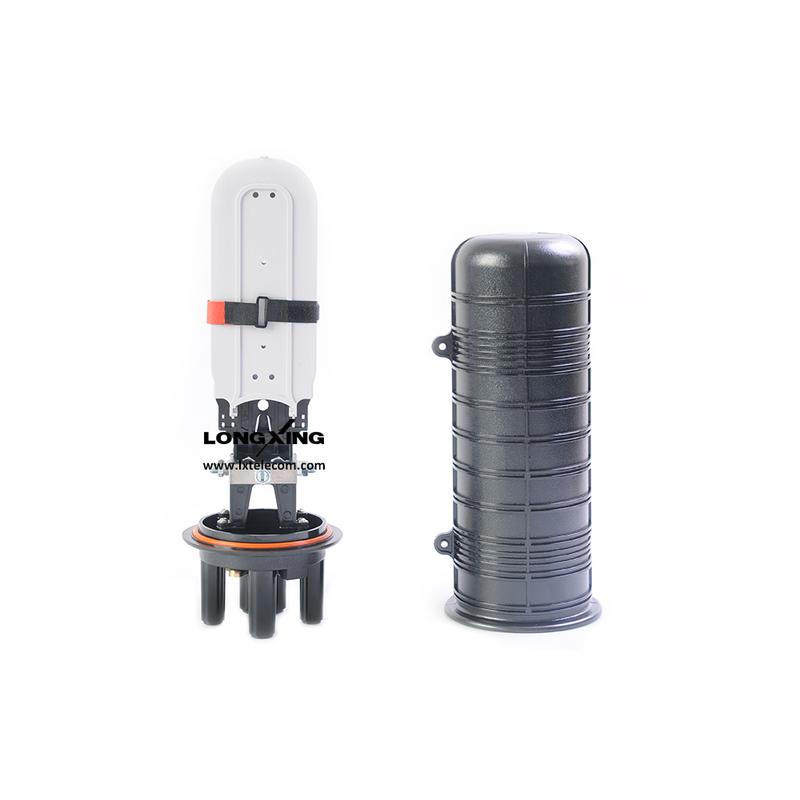

Fiber Optic Splice Closure GPJ83-D14
Capacity: Bundle 96/Ribbon 288 cores
Dimensions: (φ)190*(L)435 mm
Material: Plastic (PC)
Design Style: Dome
Adapter Type: N/A
Applications: Aerial/Underground/Burial
No.of Cable Entries & Exits: 5 pieces in general
Color: Black
Key Feature: Dome
Horizontal Fiber Optic Splice Closure GPJ83-H11
Capacity: Bundle96/Ribbon144 cores
Dimensions: 413*160*88 mm
Material: Plastic
Design Style: Horizontal
Adapter Type: N/A
Applications: Aerial/Underground/Burial
No.of Cable Entries & Exits: 2 (pieces) on each side (total 4 pieces)
Color: Black
Key Feature: Horizontal
Horizontal Fiber Optic Splice Closure GPJ83-H10
Capacity: Bundle96/Ribbon144 cores
Dimensions: 450*220*110 mm
Material: Plastic
Design Style: Horizontal
Adapter Type: N/A
Applications: Aerial/Underground/Burial
No.of Cable Entries & Exits: 4 pieces on each side (total 8 pieces)
Color: Black
Key Feature: Horizontal
Horizontal Fiber Optic Splice Closure GPJ83-H09
Capacity: Bundle144/Ribbon576 cores
Dimensions: 605*215*120 mm
Material: Plastic
Design Style: Horizontal
Adapter Type: N/A
Applications: Aerial/Underground/Burial
No.of Cable Entries & Exits: 2 pieces on each side (total 4 pieces)
Color: Black
Key Feature: Horizontal
Horizontal Fiber Optic Splice Closure GPJ83-H08
Capacity: Bundle48/Ribbon72 cores
Dimensions: 340*150*70 mm
Material: Plastic
Design Style: Horizontal
Adapter Type: N/A
Applications: Aerial/Underground/Burial
No.of Cable Entries & Exits: 2 pieces on each side (total 4 pieces)
Color: Black
Key Feature: Horizontal
