4G BiDi SFP
Overview
LongXing's BIDI 4G series is small form factor pluggable module for 4x/2x/1x Fibre Channel and 1000BASE-BX Gigabit Ethernet single fibre communications. It is with the SFP 20-pin connector to allow hot plug capability. The transmitter section uses class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Features
l Fibre Bi-Directional SFP Optical Transceiver
l Up to 4.25 Gb/s
l Compliant with Fibre Channel FC-PI 400/200/100
l Compliant with IEEE 802.3ah-2004 1000BASE-BX
l Simplex LC Connector or SC connector
l AC/AC Coupling according to MSA
l Single +3.3 V Power Supply
l RoHS Compliant
l 0 to 70C, -10 to 85C or -40 to 85C Case Operation Temperature Ranges
l Class 1 Laser International Safety Standard IEC 60825 Compliant
| Specifications | |||||||||
| Package | P/N | Data Rate | Wavelength | OSA Type | Distance | Connector | Case Temp. | DDM | Application |
| BIDI SFP | LXB535M166-Dxx | 4.25Gbps | 1310nm/1550nm | FP/PIN | 100m | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB553M166-Dxx | 4.25Gbps | 1550nm/1310nm | FP/PIN | 100m | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5350566-Dxx | 4.25Gbps | 1310nm/1550nm | FP/PIN | 5km | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5530566-Dxx | 4.25Gbps | 1550nm/1310nm | DFB/PIN | 5km | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5351066-Dxx | 4.25Gbps | 1310nm/1550nm | DFB/PIN | 10km | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5531066-Dxx | 4.25Gbps | 1550nm/1310nm | DFB/PIN | 10km | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5352066-Dxx | 4.25Gbps | 1310nm/1550nm | DFB/PIN | 20km | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5532066-Dxx | 4.25Gbps | 1550nm/1310nm | DFB/PIN | 20km | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5353066-Dxx | 4.25Gbps | 1310nm/1550nm | DFB/PIN | 30km | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5533066-Dxx | 4.25Gbps | 1550nm/1310nm | DFB/PIN | 30km | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5354066-Dxx | 4.25Gbps | 1310nm/1550nm | DFB/PIN | 40km | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5534066-Dxx | 4.25Gbps | 1550nm/1310nm | DFB/APD | 40km | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5111166-Dxx | 4.25Gbps | CWDM/CWDM | DFB/PIN | 11dB | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5111866-Dxx | 4.25Gbps | CWDM/CWDM | DFB/PIN | 18dB | LC/SC | Com./Ind. | D | FC |
| BIDI SFP | LXB5112466-Dxx | 4.25Gbps | CWDM/CWDM | DFB/APD | 24dB | LC/SC | Com./Ind. | D | FC |

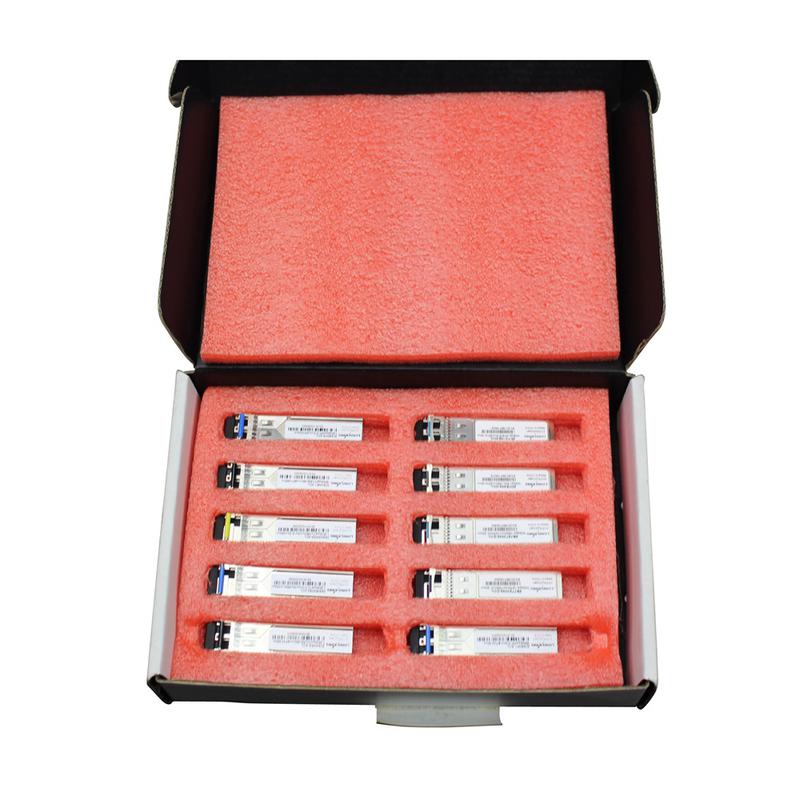

| Shipping Information | |
| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*D*H) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.5 KG |
| Lead Time | 10-15 working days normally |
