SDH SFP+
Overview
LongXing's SDH SFP+ transceiver is a high performance, cost effective modules for serial optical data communications applications specified for signal rates of 9.95 Gb/s to 11.3 Gb/s. The modules are designed for single mode fiber and operates at a nominal wavelength of 850/1310/1550 nm. The transmitter section incorporates uncooled directly modulated 1310 nm distributed feedback laser (DFB) or EML cooled laser 1550nm. The receiver section uses PIN photo detector for low dark current and excellent responsivity or APD high sensitivity receiver.
Features
l Supports 9.95Gb/s to 11.3Gb/s bit rates
l CDR both at Tx and Rx side.
l IEC 60825-1 Class 1/CDRH Class 1 laser eye safety.
l Hot-pluggable SFP+ footprint
l Maximum link length of 80km
l DFB or Temperature-stabilized EML Transmitter
l Duplex LC connectors
l Low Power dissipation
l Superior Thermal and EMI integrity performance to support high port densities
l LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
l Built-in digital diagnostic functions, DDMI
l Temperature range -5°C to 70°C or Industrial Temperature range on request
l RoHS-6, CE, FDA, FCC, TUV, UL certificates
| Specifications | ||||||||||||
| Package | P/N | Duplex/Bi-directiona | Data Rate | Wavelength | OSA Type | Distance | Connector | Case Temp. | DDM | Application | ||
| 10G SFP+ with CDR | ||||||||||||
| SFP+ | LXD7AM39-DCL | Duplex | 9.95~10.3G | 850nm | VSCEL/PIN | <300m | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7AM39-DCL | Duplex | 9.95~10.3G | 850nm | VSCEL/PIN | <300m | LC | Ext. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7BM29-DCL | Duplex | 9.95~10.3G | 1310nm | FP/PIN | <220m | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7B029-DCL | Duplex | 9.95~11.1G | 1310nm | FP/PIN | 2km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7D109-DCL | Duplex | 9.95~11.1G | 1310nm | DFB/PIN | 10km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7D209-DCL | Duplex | 9.95~11.1G | 1310nm | DFB/PIN | 20km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7D409-DCL | Duplex | 9.95~11.1G | 1310nm | DFB/PIN | 40km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7F709-DCL | Duplex | 9.95~11.1G | 1310nm | DFB/APD | 70km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7E409-DCL | Duplex | 9.95~11.1G | 1550nm | EML/PIN | 40km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7G809-DCL | Duplex | 9.95~11.1G | 1550nm | EML/APD | 80km | LC | Com. | D | Eth, SDH, 10GFC | ||
| 10G SFP+ BIDI with CDR | ||||||||||||
| SFP+ | LXB7781099-DCL | BIDI | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 10km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7871099-DCL | BIDI | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 10km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7782099-DCL | BIDI | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 20km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7872099-DCL | BIDI | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 20km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7784099-DCL | BIDI | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 40km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7874099-DCL | BIDI | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 40km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7786099-DCL | BIDI | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 60km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7876099-DCL | BIDI | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 60km | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7781099-DEL | BIDI | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 10km | LC | Ext. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7871099-DEL | BIDI | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 10km | LC | Ext. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7782099-DEL | BIDI | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 20km | LC | Ext. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7872099-DEL | BIDI | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 20km | LC | Ext. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7784099-DEL | BIDI | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 40km | LC | Ext. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7874099-DEL | BIDI | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 40km | LC | Ext. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7786099-DEL | BIDI | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 60km | LC | Ext. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXB7876099-DEL | BIDI | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 60km | LC | Ext. | D | Eth, SDH, 10GFC | ||
| 10G CWDM/DWDM SFP+ with CDR | ||||||||||||
| SFP+ | LXD7H309-DCLxx | Duplex | 9.95~11.1G | 1270~1330nm | DFB/PIN | 10dB | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7H409-DCLxx | Duplex | 9.95~11.1G | 1270~1330nm | DFB/PIN | 14dB | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7H309-DCLxx | Duplex | 9.95~11.1G | 1470~1610nm | DFB/PIN | 10dB | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7H409-DCLxx | Duplex | 9.95~11.1G | 1470~1610nm | EML/PIN | 14dB | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD71809-DCLxx | Duplex | 9.95~11.1G | 1470~1610nm | EML/APD | 23dB | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD71809-DCLxx | Duplex | 9.95~11.1G | 1270~1330nm | DFB/APD | 23dB | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7J409-DCxx | Duplex | 9.95~11.1G | DWDM | EML/PIN | 14dB | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7K809-DCxx | Duplex | 9.95~11.1G | DWDM | EML/APD | 23dB | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7J409-DCxx | Duplex | 9.95~11.1G | DWDM 50GHz |
EML/PIN | 14dB | LC | Com. | D | Eth, SDH, 10GFC | ||
| SFP+ | LXD7K809-DCxx | Duplex | 9.95~11.1G | DWDM 50GHz |
EML/APD | 23dB | LC | Com. | D | Eth, SDH, 10GFC | ||

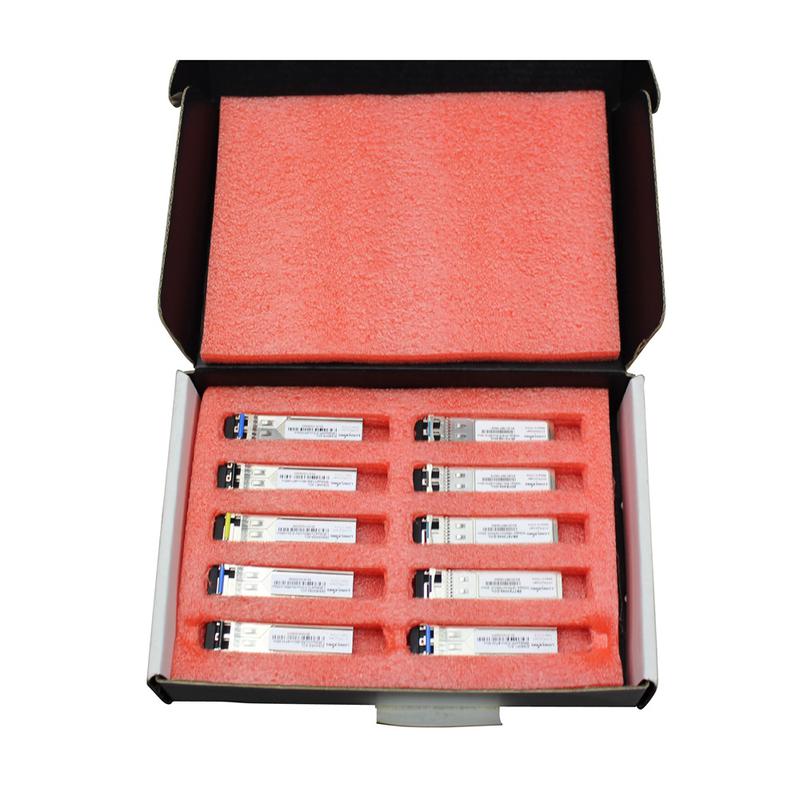

| Shipping Information | |
| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*H*D) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.82 KG |
| Lead Time | 10-15 working days normally |
