Communication Power Supply 4860S
Overview

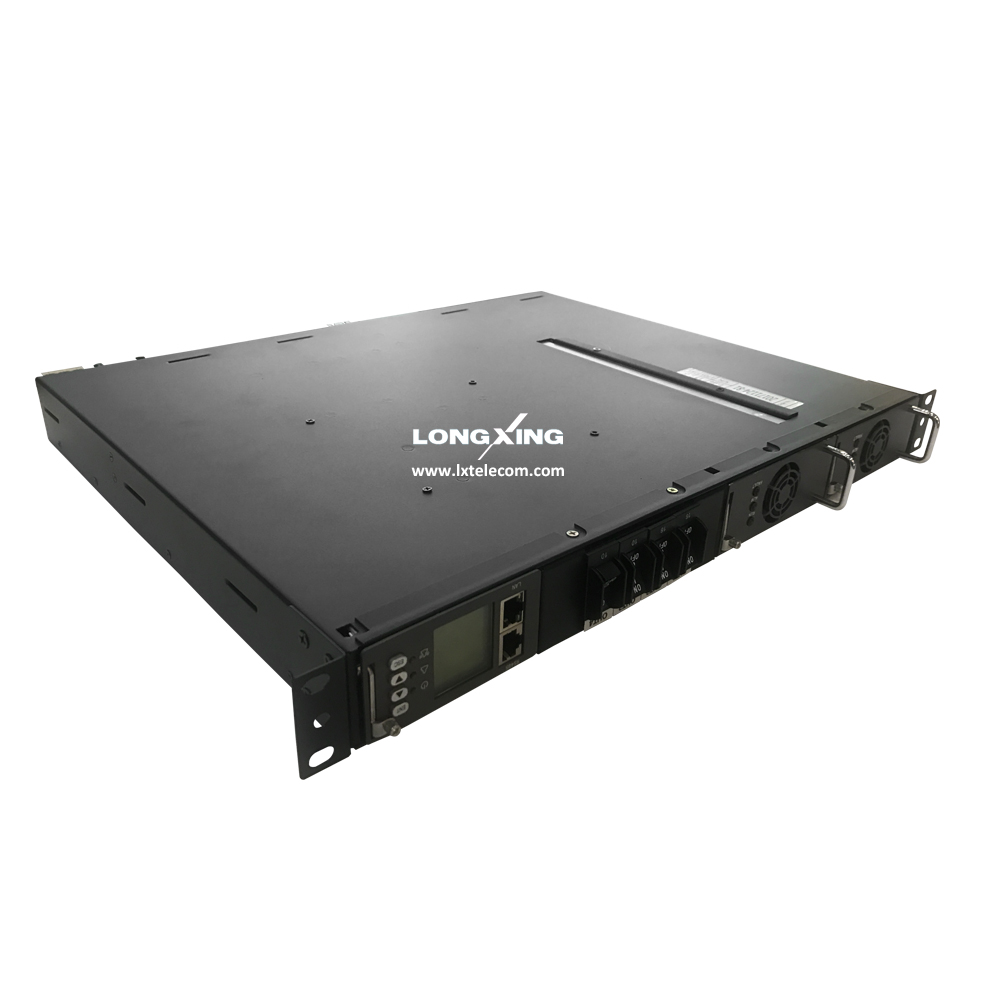

The LXPower4860S is specially designed to meet the demand for compact, flexible, high performance, high reliability power supply. The system consists of 1-2 units LXPower1800 high/standard efficiency rectifier modules of their mixture, a LX1800D/LX2000 monitor module, AC/DC distributors. 19 inc hes and 1U height standard structure adapts t ovarious telecom cabinets and racks.
Features
l Cost effective solution: high integrated power supply including rectifier modules, controller, lightning protection, distributions
l Easy maintenance: hot plug rectifier module and fully front-access maintenance system for wall against or corner mounting
l Advanced battery management improves battery lifespan, especially suitable for poor AC mains application
l Extreme wide input voltage: 85V～300V AC
l Extreme wide operation temperature: -30℃～+65℃
l High/standard efficiency rectifier modules are compatible
l 1U height compact design
l System rated capacity: -53.5V DC/60A
l Whole monitor ports, RS232/485/SNMP, dry contactors
l LCD display with a state-of-the-art interface allows simple and convenient local set up, control and remote monitor
l Design standards: IEC/EN60950
Add To Quote List
Add To Compare
Inquiry Now
l Easy maintenance: hot plug rectifier module and fully front-access maintenance system for wall against or corner mounting
l Advanced battery management improves battery lifespan, especially suitable for poor AC mains application
l Extreme wide input voltage: 85V～300V AC
l Extreme wide operation temperature: -30℃～+65℃
l High/standard efficiency rectifier modules are compatible
l 1U height compact design
l System rated capacity: -53.5V DC/60A
l Whole monitor ports, RS232/485/SNMP, dry contactors
l LCD display with a state-of-the-art interface allows simple and convenient local set up, control and remote monitor
l Design standards: IEC/EN60950
| Power Specifications | ||
| Specification | Remark | |
| lnput voltage | 85~300V/45~65Hz | TN/TT grounding system |
| Output voltage | -42-58.5V | Nominal -53.5V |
| Rectifier power | 1800W | LXPower1800/2000M/2000H |
| Surge current capacity | / | / |
| / | / | |
| Mechanical Specifications | ||
| Parts | Dimension/mm | Weight/kg |
| Subrack | 1Ux482.6x370 | / |
| Rectifier module | 40.5x106x298.5 | 1.7 |
| Monitor | 42.5x85x230 | 0.8 |
| Battery chamber | / | / |
| Mounting | 19" rack | / |
| Operation Ambient | ||
| Item | Specification | Remark |
| Storage temperature | -40~+70℃ | / |
| Operation temperature | -30~+65℃ | / |
| Safety | / | According to EN60950 and IEC60950 |
| Communication | RS232+dry contact+SNMP | / |
| Operation moisture | 10~95% | Non-condensing |
| System Configuration | ||||
| Model | DC Capacity | Rectifiers | Monitor | Battery Access |
| LXPower4860S | 48V/60A | 1~2 units | LX1800D/LX2000 | 1~2 strings |
| Distribution | ||
| / | LXPower4860S | Remark |
| AC input | 220V input | / |
| Battery | 1 positive terminal; 1 negative terminal | / |
| DC output | 4 positive terminal; 4 negative terminal | / |
| / | / | / |
