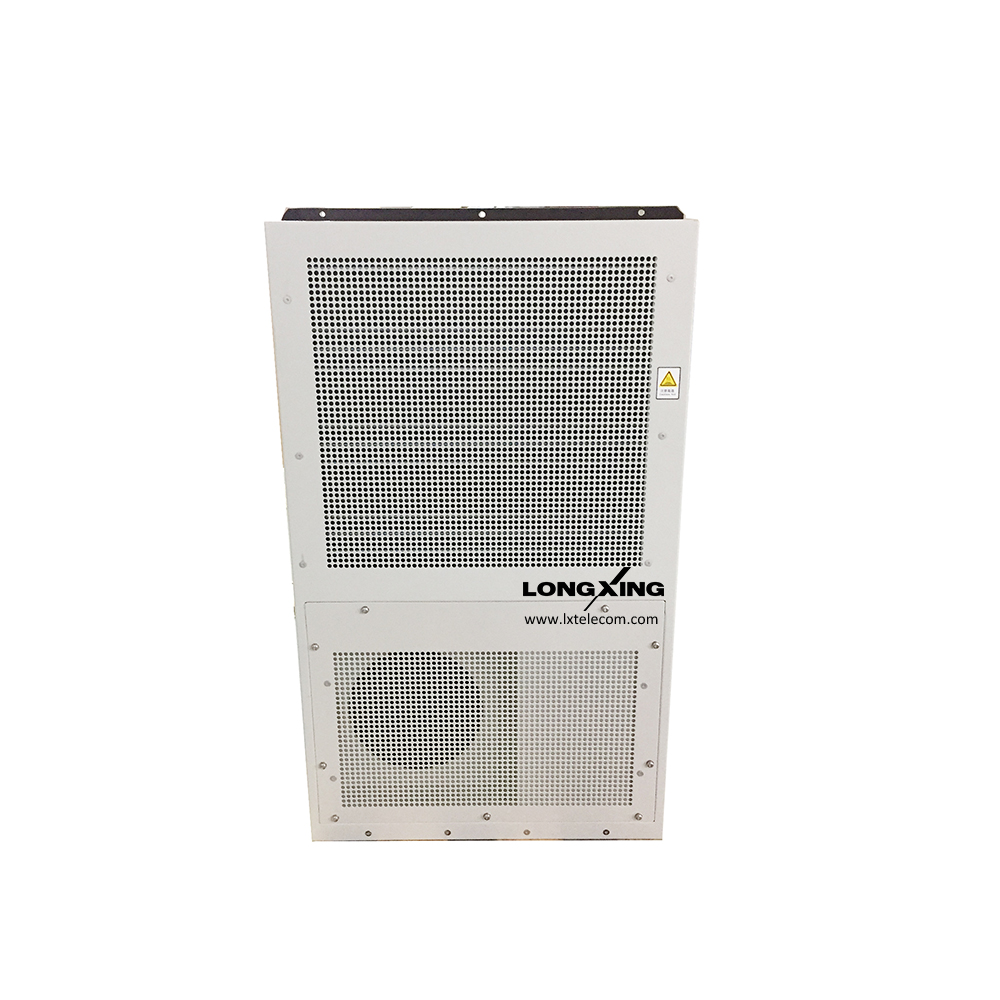

Enclosure Air Conditioner AC2000

Overview

LongXing Air Conditioner Cooling Solution can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc. LongXing air conditioners are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments. Our electronic cabinet cooling systems are designed for use with a wide range of enclosures and transit cases. Models are available for both indoor and outdoor use in AC and DC power configurations. Coolers feature corrosion-resistant stainless steel construction.

Features

l Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
l Strict process control and famous brand components to ensure high quality and reliability of this product;
l Fit for harsh condition (T3), R134a refrigerant ;
l Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU protocol);
l LED display, all the settings can changed at the field;
l The heating function and the hydrogen function is optional;
l Dry contact alarm output,NO/NC optional;
Add To Quote List Add To Compare
Technical parameters
Name Outdoor Cabinet Air Conditioner
Code AC2000
Mounting Method Semi-embedded Mounting
Power Supply 230VAC±15%  50Hz
Cooling Capacity 200W@L35/L35
Power Consumption 870W@L35/L35
Cooling Capacity 1200W@L35/L55
Power Consumption 1090W@L35/L55
Internal Airflow 700m³/h
Working Temperature Range -40℃~+55℃
Max Noise Level 63dB(A)
IP Grade IP55
Net Weight 34kg
Refrigerant R134a
Dimensions(H*W*D) 783mm*479mm*200mm
CE&RoHS Compliant Yes
Surface Treatment Outdoor type powder coating
Standard color:RAL7035
Heater Optional (1000W), not included by default
Hydrogen Function Optional, not included by default
