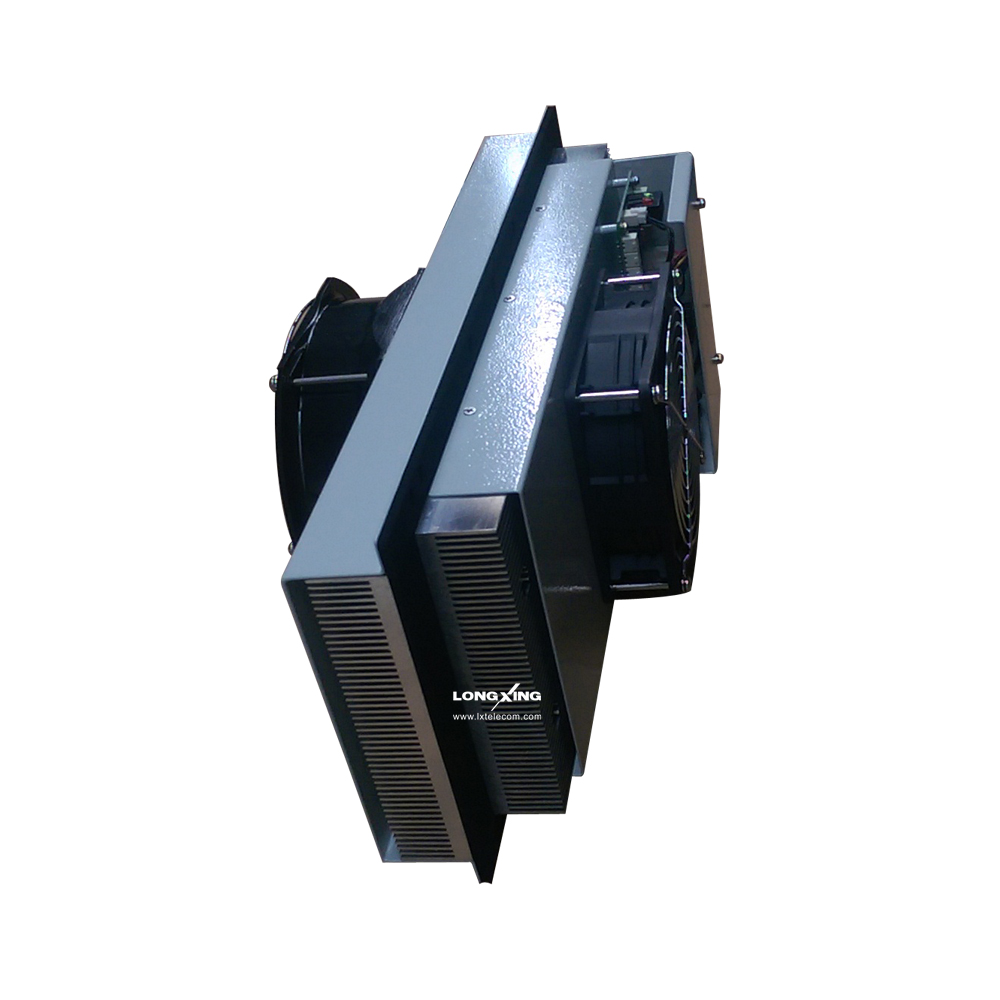

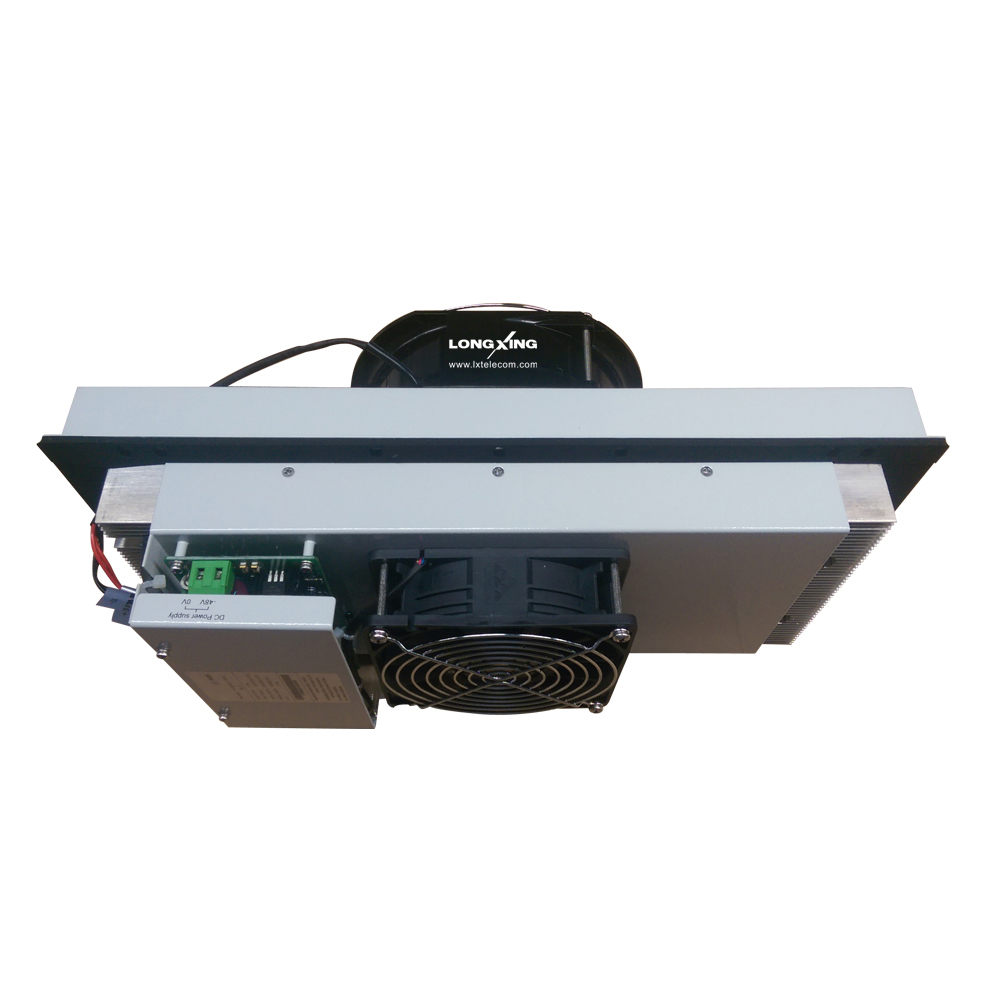

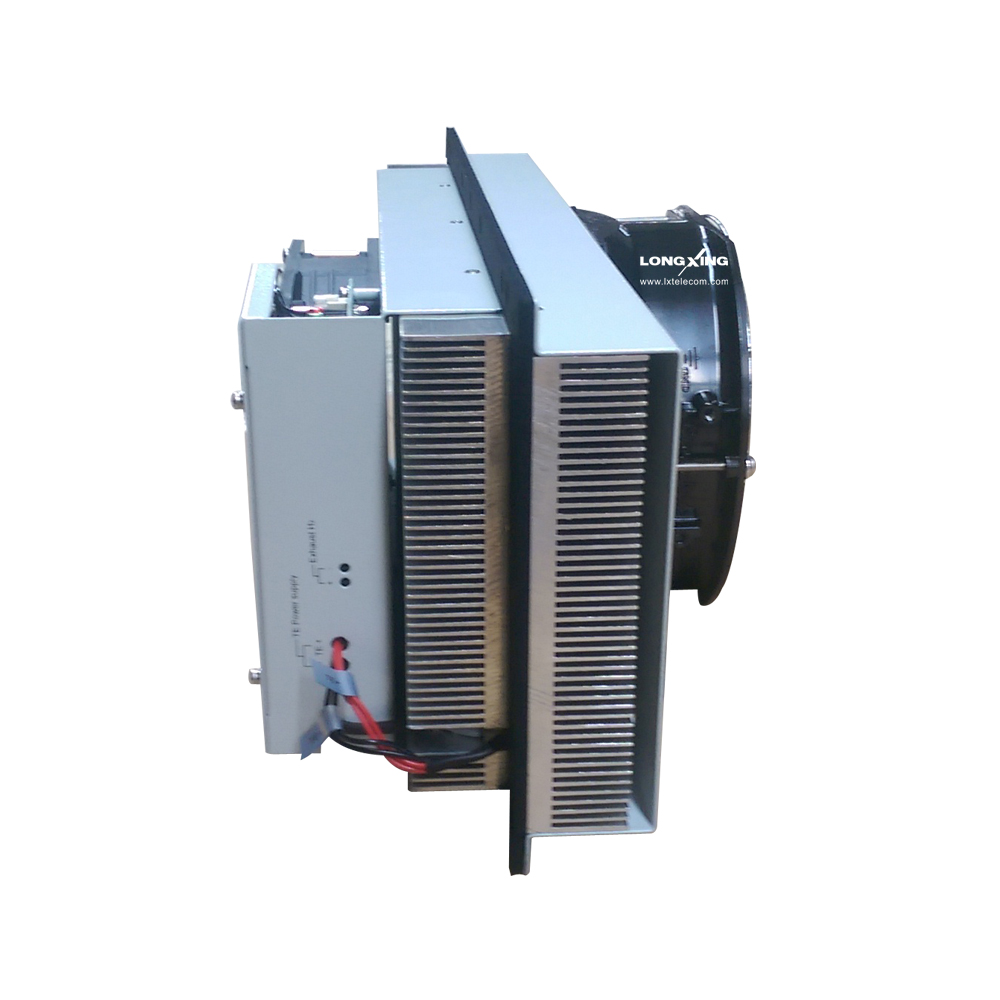

Thermoelectric Air Conditioner DC200

Overview

LongXing Air Conditioner Cooling Solution can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc. LongXing air conditioners are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments. Our electronic cabinet cooling systems are designed for use with a wide range of enclosures and transit cases. Models are available for both

Features

l Refrigeration system is not used refrigerants, few movement part, small volume;
l Strict process control and international brand parts deployed to ensure high quality and reliable of this product;
l Multiple self protection design , RS485 communication through MODBUS protocol;
l Circulation fans stepless speed regulation function;
l The heating function optional;
l Eliminate hydrogen function optional;
l Dry contact alarm output,NO/NC optional;
Add To Quote List Add To Compare
Technical parameters
Name Thermoelectric Air Conditioner
Code DC200
Power Supply -48VDC Nominal(-44VDC ~ -58VDC)
Cooling Capacity 200W@L32/L32
Consumption 350W@L32/L32
Heating Capacity(Optional) 300W@L35/L35
Internal Airflow 240m³/h
Working Temperature Range -10℃~+55℃
Noise Level 67dB(A)
IP Grade IP55
Net Weight 7.0kg
Mounting Method Semi-embedded Mounting
Dimensions(H*W*D) 400mm*180mm*178mm
CE&RoHS Compliant Yes
