Cabinet Filter Without Splitter WDM-F2

Overview

In fiber-optic communications, WDM (wavelength-division multiplexing) is a technology which multiplexes a number of optical carrier signals onto a single optical fiber by using different wavelengths (i.e., colors) of laser light. This technique enables bidirectional communications over one strand of fiber as well as multiplication of capacity. Generally, WDM technology is applied to an optical carrier which is typically described by its wavelength.

Features

l Wide Operating Wavelength Range
l Low Insertion Loss
l Ultra Flat Wide Passband
l High Channel Isolation
l High Stability and reliability
l Epoxy-free on Optical Path

Add To Quote List Add To Compare Inquiry Now

Optical Specifications
Item	Parameters		Specification			Units	Symbol
Item	Parameters		Min	Typ	Max	Units	Symbol
1.	Reflect Port	DWDM Band	1525~1630			nm	λR1
1.	Reflect Port	OTDR Band	1636~1671			nm	λR2
2.	Pass Port	GPON Band	1260 ~1500			Nm	λP
3.	Insertion Loss, without connector	Pass Port, λP			0.6	dB	IL
		Reflect Port, λR1			0.45	dB
		Reflect Port, λR2			0.6	dB
4.	WDL, each band	Pass Port			0.3	dB
4.	WDL, each band	Reflect Port			0.3	dB
5.	Isolation	Pass Port @ λR1	25			dB	IS
5.	Isolation	Reflect Port @ λP	15			dB	IS
6.	Polarizations Dependent Loss				0.15	dB	PDL
7.	Return Loss	Without connector	50			dB	RL
7.	Return Loss	With connector	45			dB	RL
8.	Directivity		50			dB	DIR
9.	Polarization Mode Dispersion				0.2	ps	PMD
10.	Optical Power				27	dBm
11.	Maximum Relative Humidity, non-condensing				85	%
12.	Operationg Temperature		-5		70	°C
13.	Storage Temperature Range		-40		70	°C
14.	Relative Humidity, non-condensing		5		95	RH

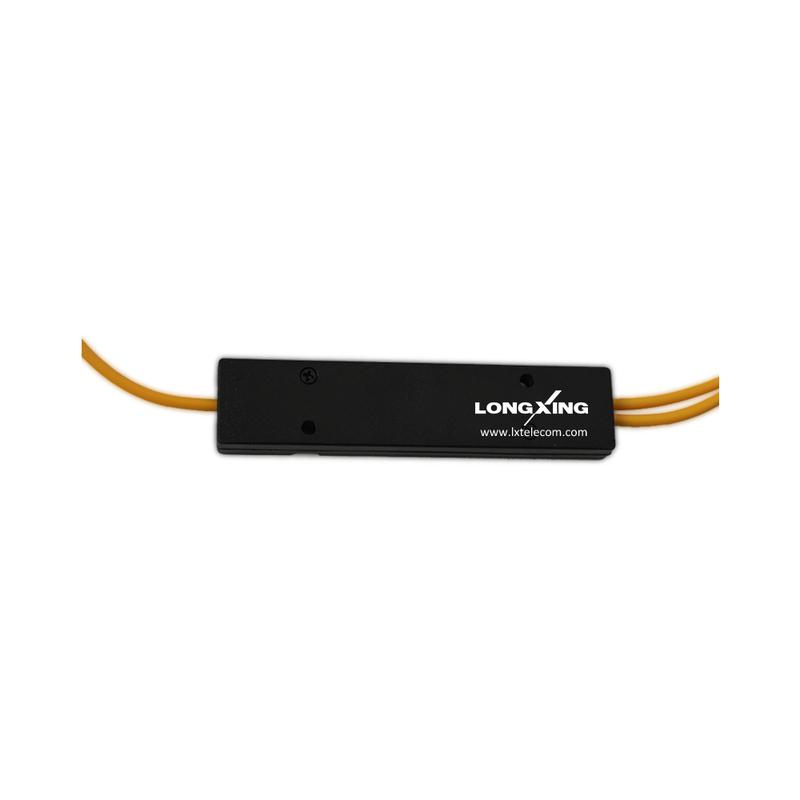

Filter in the Street Cabinet

It will be Y cable filter with SC/APC connectors.

Y-Cable
Item	Parameters			Min	Typ		Max		Units	Note
1.	Fiber Type			G.657A1
2.	Fiber Jacket			250μm bare fiber
3.	Fiber Length	COM				0.5			m
		DWDM+OTDR
		GPON

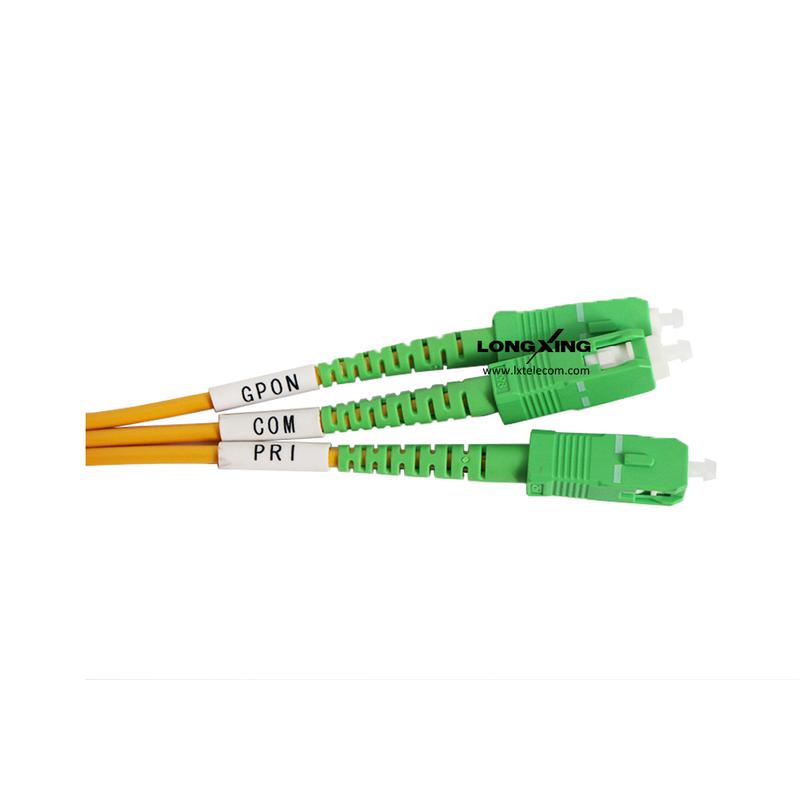

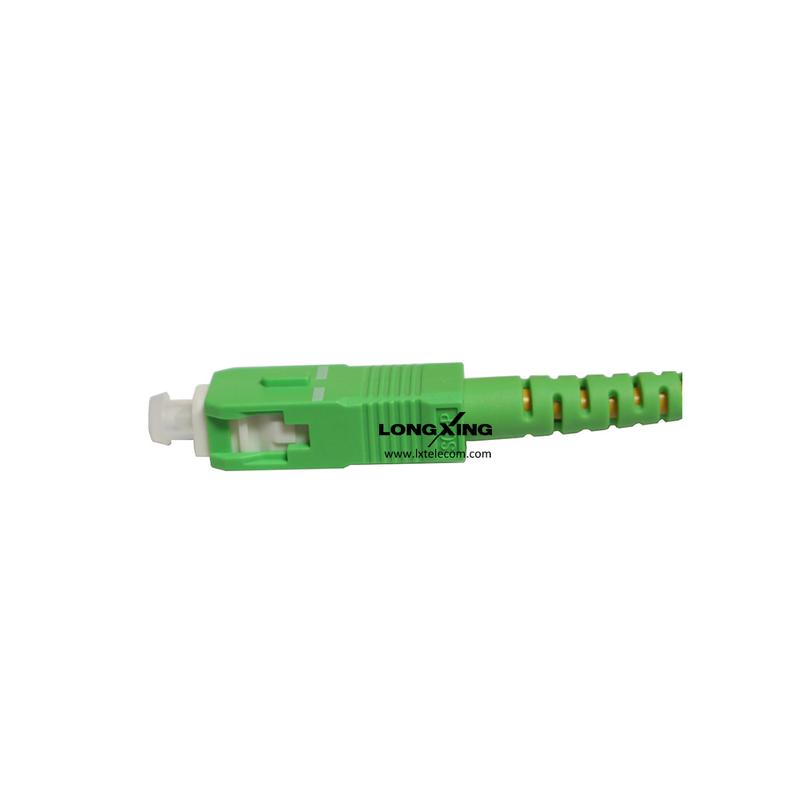

4.	Connector Type		All ports	SC/APC
5.	Connector Loss, per pair							0.3	dM
6.	Packaging Dimensions			90 x 16 x 9					mm
7.	Port Identifications			Refer drawing below

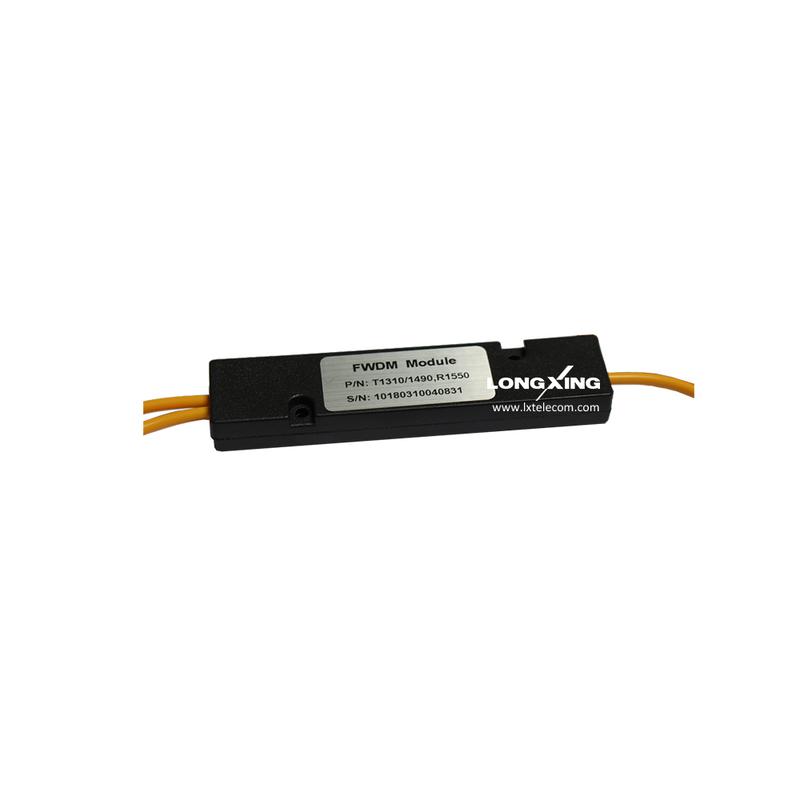

8.	Product Label			Show Customer P/N, SN
