Optical Splitter Module Type

Overview

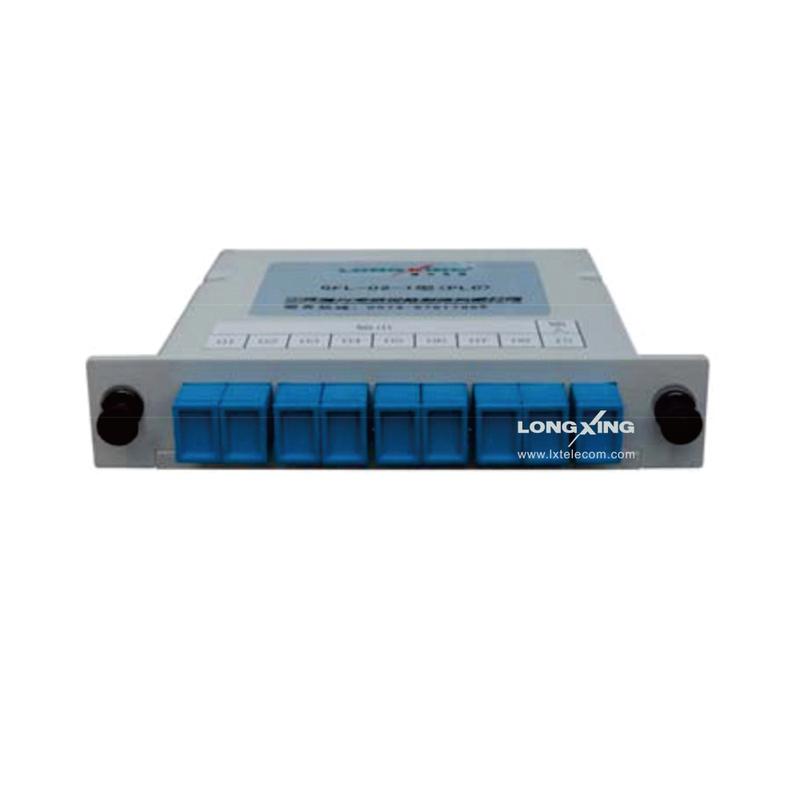

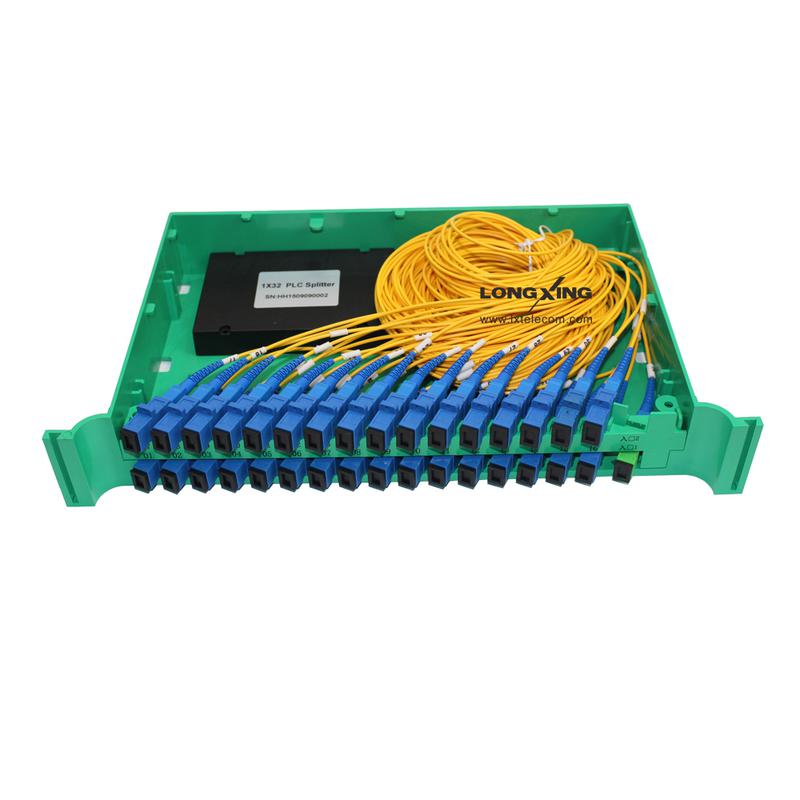

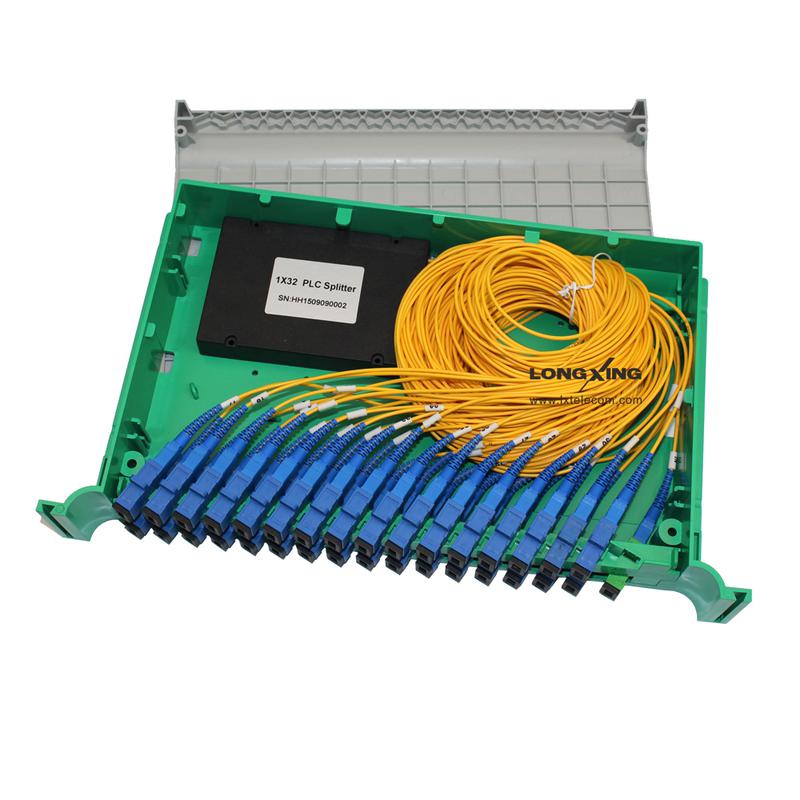

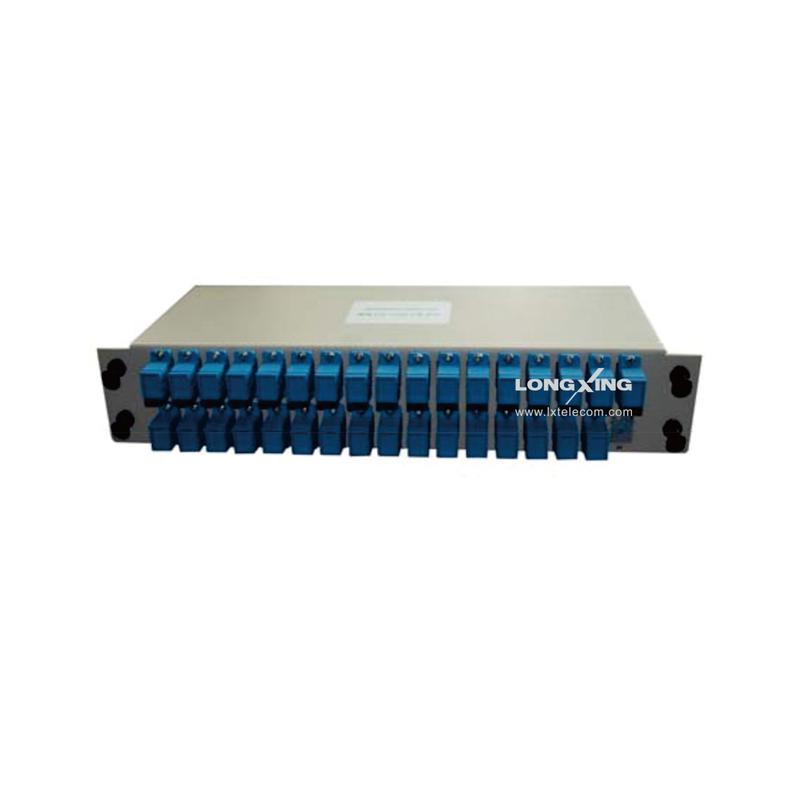

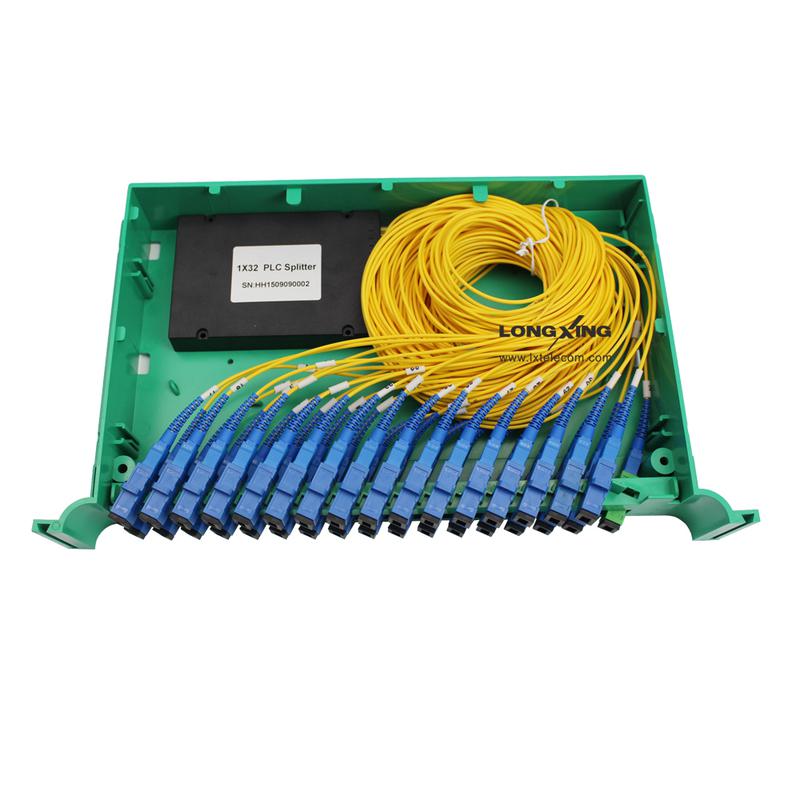

This optical splitter module use Planer Lightwave Circuit (PLC) technology for split ratio 2, 4, 8, 16 and 32. The Optical splitter module is designed by standard of YD/T2000-2009, YD/T1117-2001. Optical splitter module is ready by flame retardant material box or plate packaging. Mainly suitable for cable points fiber box and wall mounted terminal box. Application for FTTX network, LAN/WAN or CATV network.

Features

l Low Insertion loss
l Low PDL
l Compact Design
l Good channel-to-channel uniformity
l Wide Operating Wavelength: From 1260nm to 1650nm
l Wide Operating Temperature: From -40℃to 85℃
l High Reliability and Stability

Add To Quote List Add To Compare Inquiry Now

Technical Specification 1×N Series
Parameters	1×4	1×8	1×16	1×32	1×64	1×64
Operation Wavelength (nm)	1260 - 1650					1310 ± 40 1490 ± 10 1550 ± 40
Insertion Loss (dB)	≤ 7.4	≤ 10.7	≤ 13.9	≤ 17.2	≤ 21.5	≤ 20.1
PDL	≤0.3	≤0.3	≤0.3	≤0.3	≤0.5	≤0.3
Uniformity of l.L	≤0.8	≤ 1.0	≤ 1.4	≤ 1.6	≤ 2.0	≤ 1.6
Return loss (dB)	≥ 55
Directivity (dB)	≥ 55
Working / Storage Temperature (℃)	-40 ~ + 85

Technical Specification 2×N Series
Parameters	2×4	2×8	2×16	2×32	2×64	2×64
Operation Wavelength (nm)	1260 - 1650					1310 ± 40 1490 ± 10 1550 ± 40
Insertion Loss (dB)	≤ 7.6	≤ 11.0	≤ 14.8	≤ 17.9	≤ 21.5	≤ 20.1
PDL	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.3	≤ 0.5
Uniformity of l.L	≤ 0.8	≤ 1.0	≤ 1.4	≤ 1.4	≤ 1.6	≤ 2.0
Return Loss (dB)	≥ 55
Directivity (dB)	≥ 55
Working / Storage Temperature (℃)	-40 ~ + 85

Operation Conditions
Temperature	-40℃ -- 85℃
Humidity	93% at 40℃
Air Pressure	62kPa – 101kPa

Shipping Information
Package Contents	Optical Splitter PLC Mini Type 1 unit
Package Dimensions(WHD)	It depends on the dimensions of the product.
Material	Plastic Box
Weight	It depends on the weight of the product.
Lead Time	10-15 working days normally
