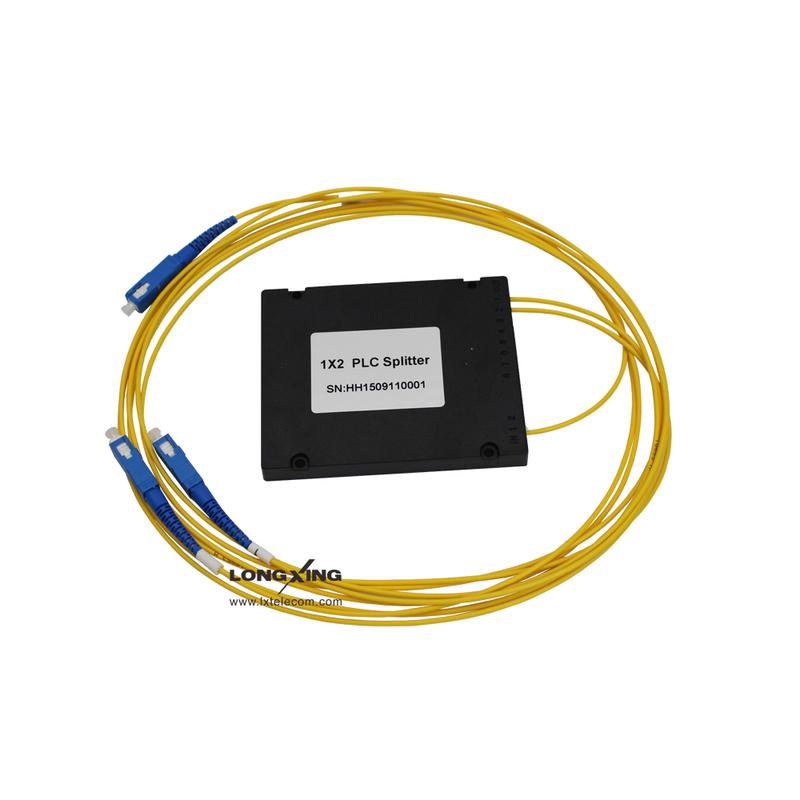

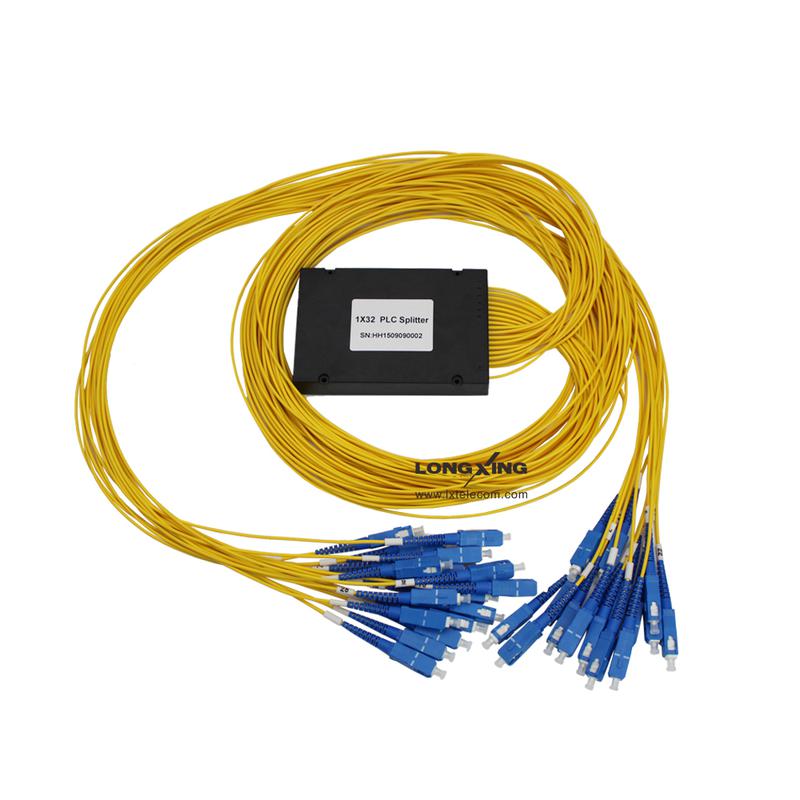

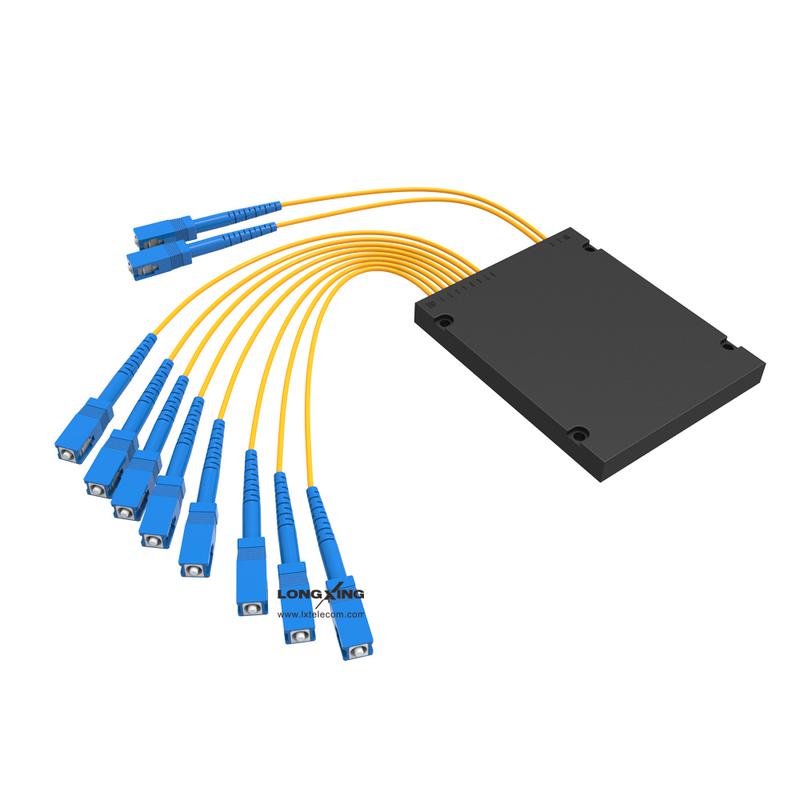

Optical Splitter Cassette Type
Overview
This optical splitter use Planer Lightwave Circuit (PLC) technology for split ratio 2, 4, 8, 16, 32 and 64. The Optical Splitter is designed for cassette splitter type by standard of YD/T2000-2009, YD/T1117-2001. Optical splitter cassette type refers to the port 2.0 mm / 3.0mm slip-on fiber multichannel direct output with a plastic box packaging protection and easy to use. Application for FTTX network, LAN/WAN or CATV network.
Features
l Low Insertion loss
l Low PDL
l Compact Design
l Good channel-to-channel uniformity
l Wide Operating Wavelength: From 1260nm to 1650nm
l Wide Operating Temperature: From -40℃to 85℃
l High Reliability and Stability
Add To Quote List
Add To Compare
Inquiry Now
l Low PDL
l Compact Design
l Good channel-to-channel uniformity
l Wide Operating Wavelength: From 1260nm to 1650nm
l Wide Operating Temperature: From -40℃to 85℃
l High Reliability and Stability
| Technical Specifications | |||
| Parameters | FC/PC | FC/UPC | FC/APC |
| Working Temperature (°C) | -40 — +80 | ||
| Insertion Loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss( dB) | ≥45 | ≥50 | ≥60 |
| Durability(Times) | ≥600 | ≥600 | ≥600 |
| Tensile strength(N) | ≥55 | ≥55 | ≥55 |
