Optical Distribution Frame GPX82-9 Series
Overview

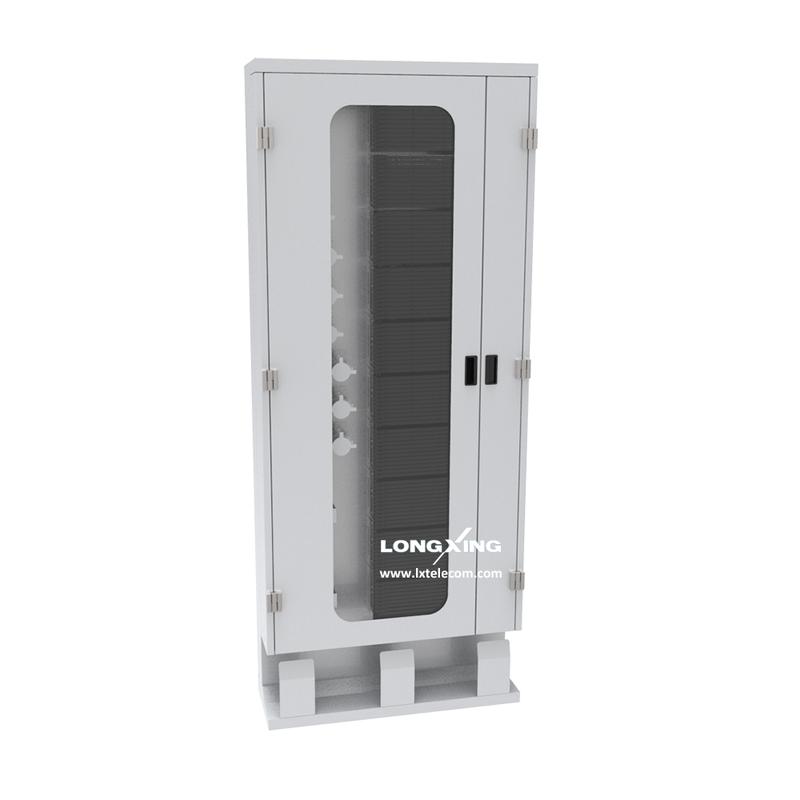

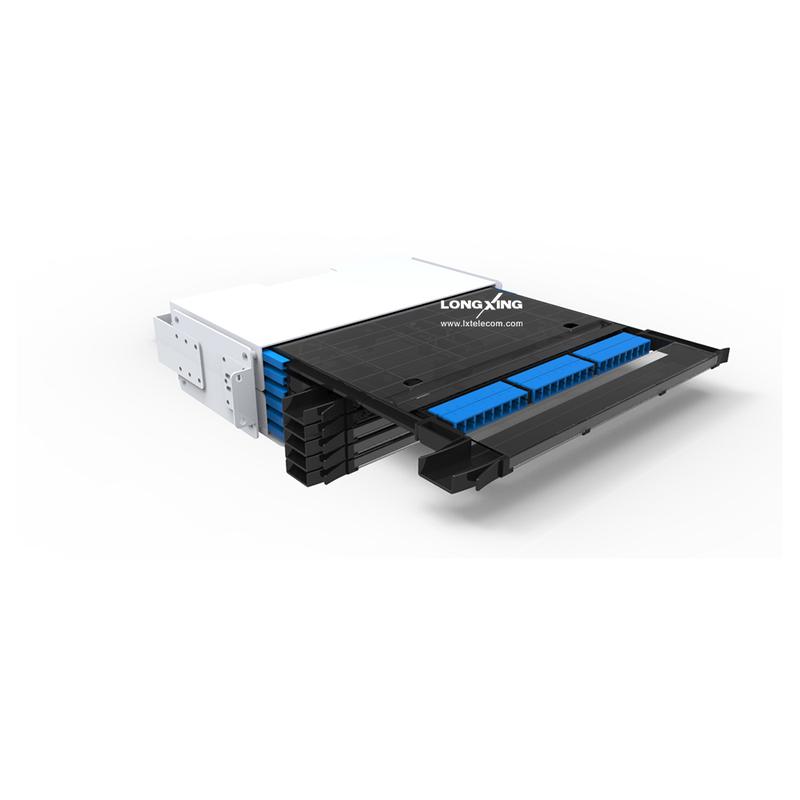

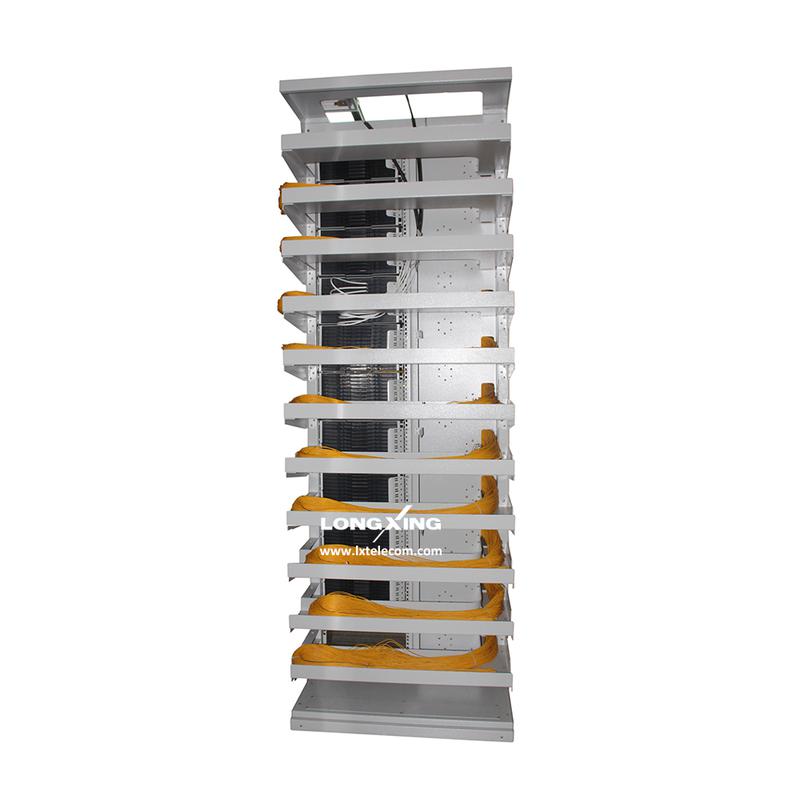

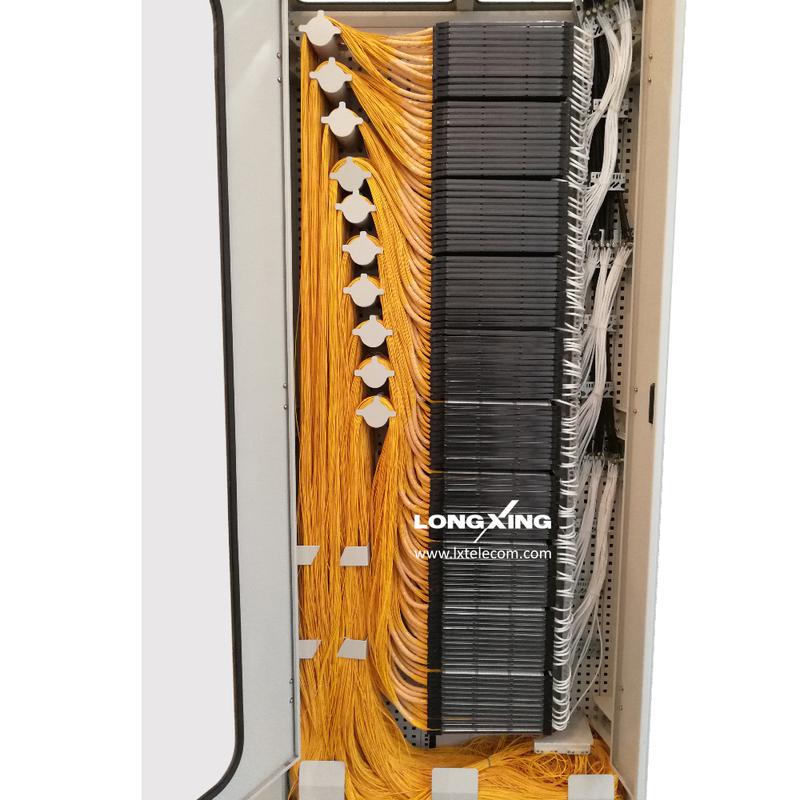

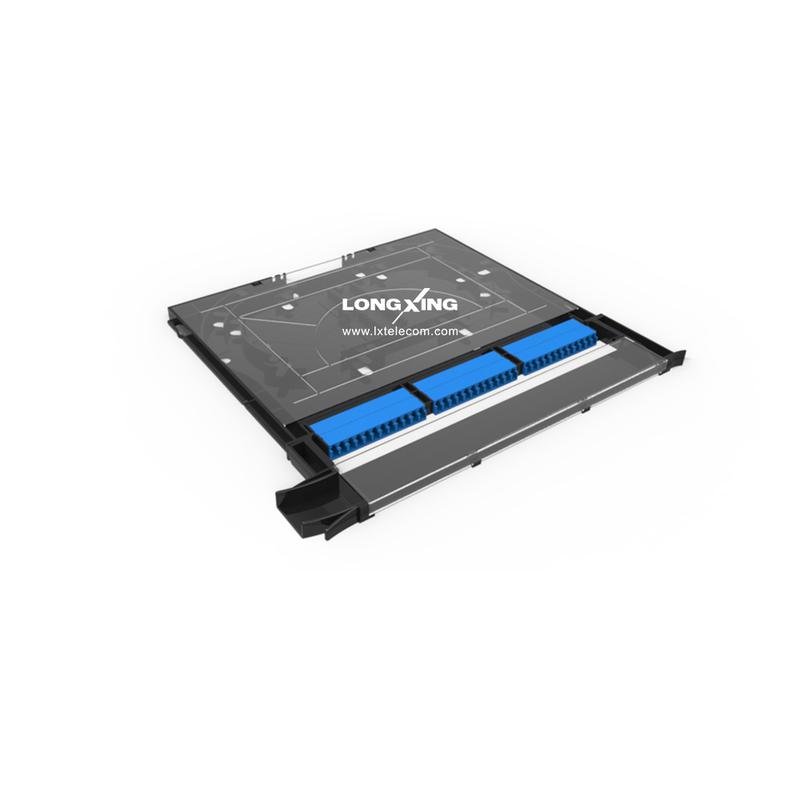

LongXing optical fiber distribution frame GPX82-9 Series is made of top quality steel treated with galvanizing, oxidation and electrostatic plastic spraying. The frame has solid structure and pleasing appearance. The rack mount patch panel is made of top quality metal material and could contain up to 12 high density integrated splice and distribution unit (up to 432 LC or 288 SC). Splice and distribution are integrated in H distribution module .This module provides flexibility and functionality within a single frame without sacrificing space. Each module cassette contains up to either 24 SC or 36 LC connector adapters
Features
l Supports up to 4752 LC or 3168 SC ports per frame: Saves space through increased port density.
l Front or Rear cable access options available.
l Modular design: Enables one rack for many application spaces e.g. central office, headend, FTTx and data center.
l Increased patch cord routing space: Supports standard 1.6 and 2.0 mm patch cords.
Add To Quote List
Add To Compare
Inquiry Now
l Front or Rear cable access options available.
l Modular design: Enables one rack for many application spaces e.g. central office, headend, FTTx and data center.
l Increased patch cord routing space: Supports standard 1.6 and 2.0 mm patch cords.
| GPX82-9-1 Dimensions and Capability | |||||
| Dimensions(H*W*D) | Max Capacity (SC) | Max Capacity (LC) | Patch Panels | ||
| 2200*760*610 | 3168 | 4752 | Model | SC | LC |
| 1U | 72 | 108 | |||
| 2U | 144 | 216 | |||
| 4U | 288 | 432 | |||
| GPX81-9-2 Dimensions and Capability | |||||
| Dimensions(H*W*D) | Max Capacity (SC) | Max Capacity (LC) | Patch Panels | ||
| 2200*900*300 | 2880 | 4320 | Model | SC | LC |
| 1U | 72 | 108 | |||
| 2U | 144 | 216 | |||
| 4U | 288 | 432 | |||
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | ODF 1 unit |
| Package Dimensions(W*H*D) | It depends on the dimensions of the product |
| Material | wooden box |
| Weight | It depends on the dimensions of the product |
| Lead Time | 10-15 working days normally |
