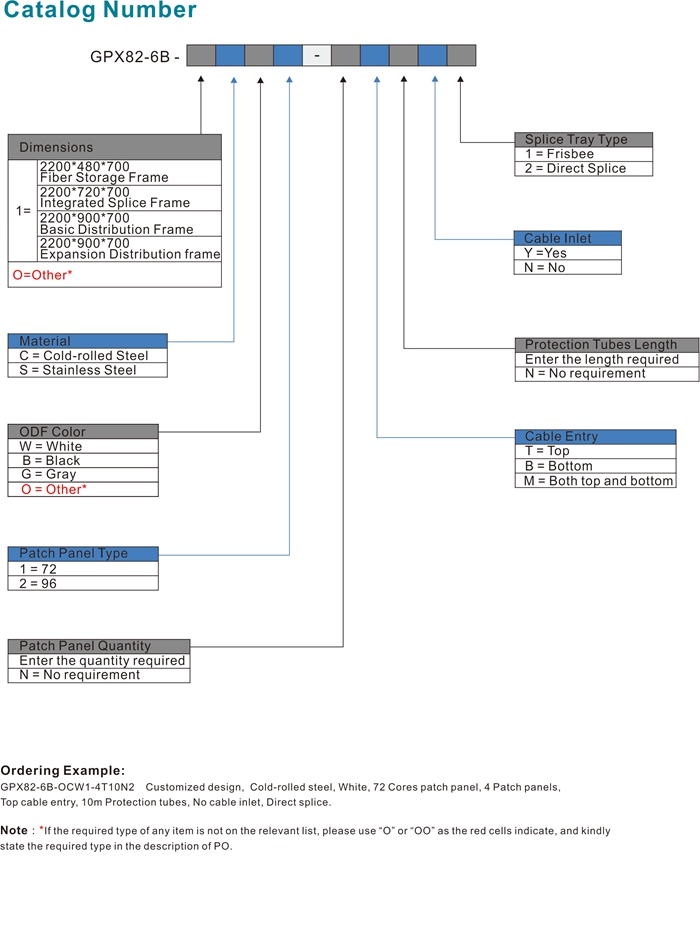

Optical Distribution Frame GPX82-6B

l The combination consists of basic frame, expansion frame, integrated splice frame and fiber storage frame (custom combinations available)
l Hierarchical structure with the advantages of good performance of installation, maintenance and operational efficiency
l This frame is suitable for large-capacity fiber optic into the client side management and business development needs
l Modular design
l Integrated splice frame comprises cable inlet systems (which provide strong fixing units for outdoor cables), large amount of splice tray slots (both left and right rides)
l Optical distribution frame is comprised of optical distribution module, fiber splice tray module, rear horizontal fiber support groove
l Fiber storage frame contains fiber winding shaft and rear horizontal fiber support groove
l The rear horizontal fiber support grooves of optical distribution frame and fiber storage frame connect directly. The rear horizontal fiber support grooves connect between distribution frame and splice frame through the eyelet on the right of splice frame

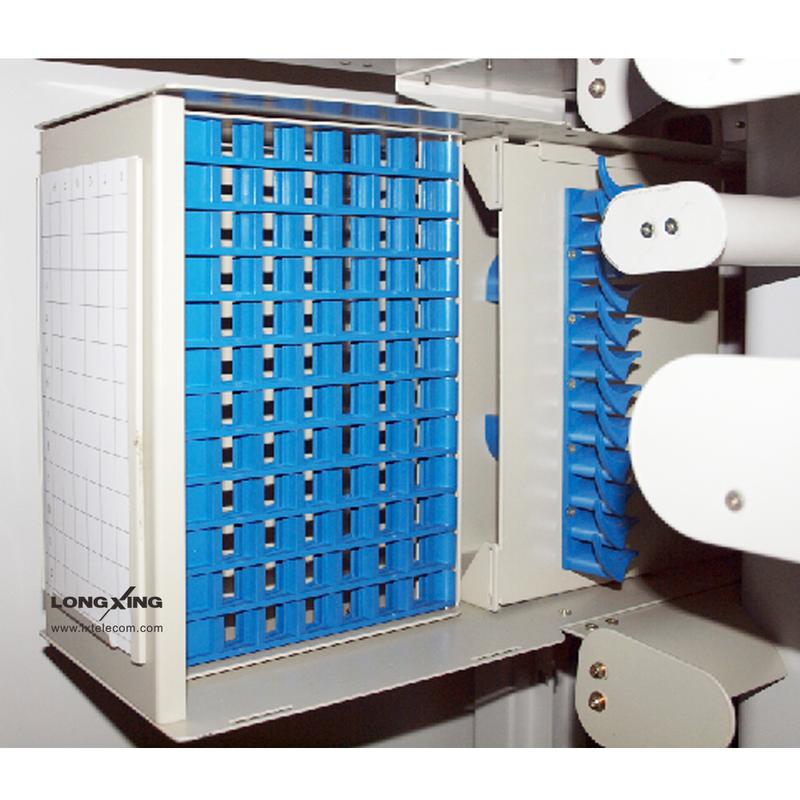

l The distribution modules have the options of 72 cores and 96 core modules
l At the back of each optical distribution frame, opposite to the two fiber distribution modules at left and right of frame front, a fiber support channel is equipped to facilitate fiber jumping between units, as well as the direct jumping between frames without passing frame top. Common optical distribution frame does not have such advantage
l According to customers’ needs, fiber support channel is provided for both single-layered structure and double-layered structure
l Enough space for fiber support channel, convenient for maintenances and operations
l According to customers’ needs, optic cable inlet device is provided for both single-layered structure and double-layered structure
