Optical Distribution Frame GPX82-1-2
Overview
LongXing optical fiber distribution frame GPX82-1-2 is made of top quality steel and deformed aluminum alloy and treated with galvanizing, oxidation and electrostatic plastic spraying. The frame has solid structure and pleasing appearance. This frame and subrack are very popular worldwide, especially in South East, European, Latin American market. One of our partners in Vietnam is Pyramid Vietnam Coporation.
Features
l This frame is made of top quality steel and deformed aluminum alloy and treated with galvanizing, oxidation and electrostatic plastic spraying. The frame has solid structure and pleasing appearance.

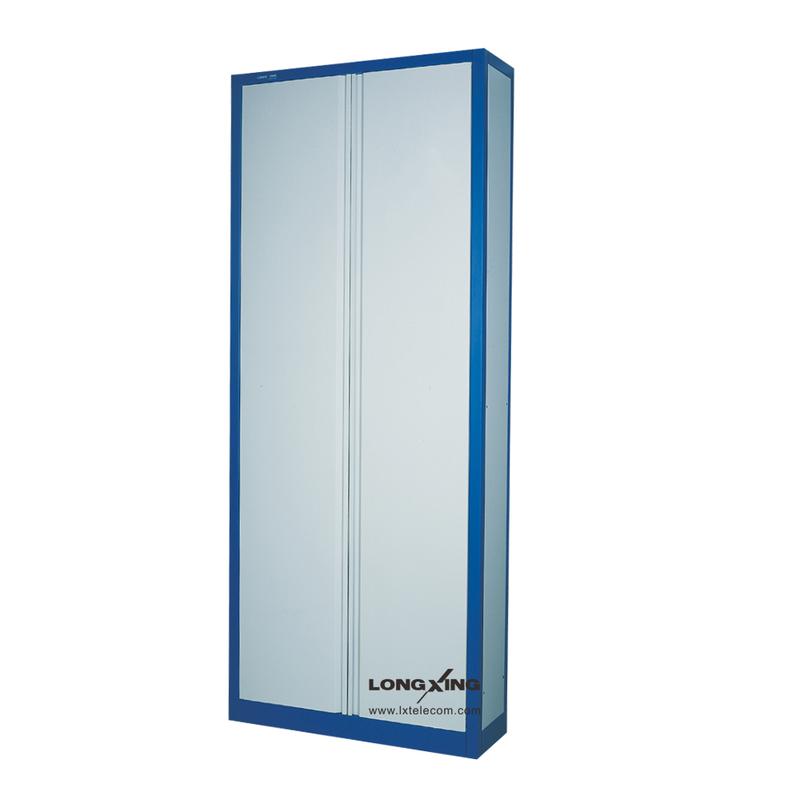

l Fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance.
l Enough space for fiber distribution and storage space and very easy for installation and operations.
l Fully front side operation, convenient for maintenances.

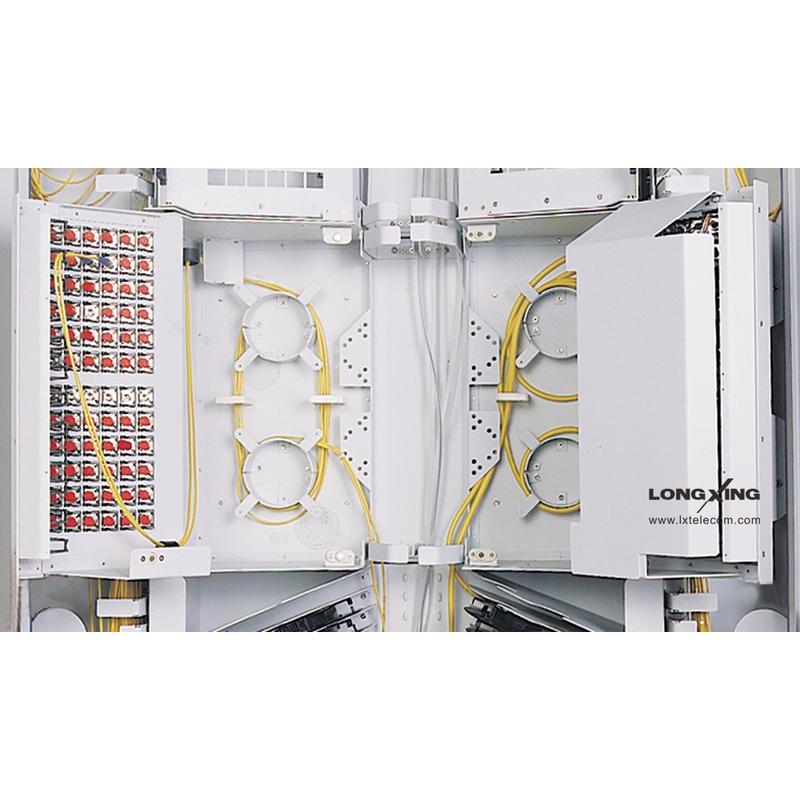

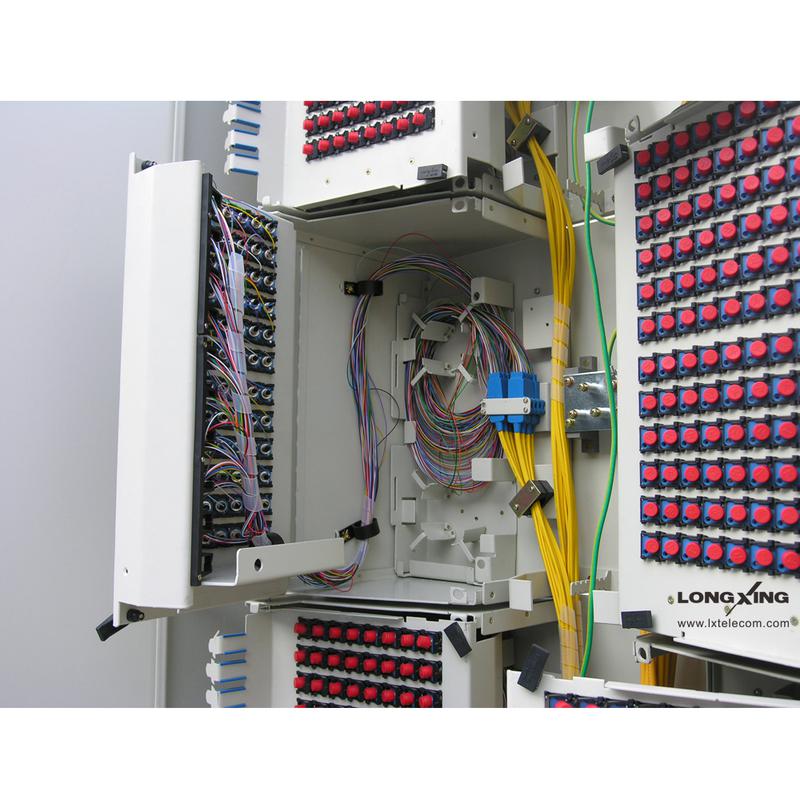

l Splice and distribution are separated and spread uniformly on the top and bottom sides of the frame. Compact structure and distinct layer for convenient management.
l Frisbee style (UFO style) splice tray is adopted; up to 48 trays can be hold in one frame.
l Curvature radius of 40mm.
l This frame is suitable for both common bundle cables and ribbon type cables.
l Reliable cable fixture cover and earth protection device provided
Add To Quote List
Add To Compare
Inquiry Now
l Fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance.
l Enough space for fiber distribution and storage space and very easy for installation and operations.
l Fully front side operation, convenient for maintenances.
l Splice and distribution are separated and spread uniformly on the top and bottom sides of the frame. Compact structure and distinct layer for convenient management.
l Frisbee style (UFO style) splice tray is adopted; up to 48 trays can be hold in one frame.
l Curvature radius of 40mm.
l This frame is suitable for both common bundle cables and ribbon type cables.
l Reliable cable fixture cover and earth protection device provided
| Dimensions and Capability | ||
| Dimensions(H*W*D) | Modules | Capacity (FC) |
| 2600*900*300 | 8 | 576 |
| 2200*900*300 | 6 | 432 |
| 2000*900*300 | 4 | 288 |
| 2600*600*300 | 4 | 288 |
| 2200*600*300 | 3 | 216 |
| 2000*600*300 | 2 | 144 |
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | ODF 1 unit |
| Package Dimensions(W*H*D) | It depends on the dimensions of the product |
| Material | wooden box |
| Weight | It depends on the dimensions of the product |
| Lead Time | 10-15 working days normally |
