Optical Distribution Frame GPX09P
Overview

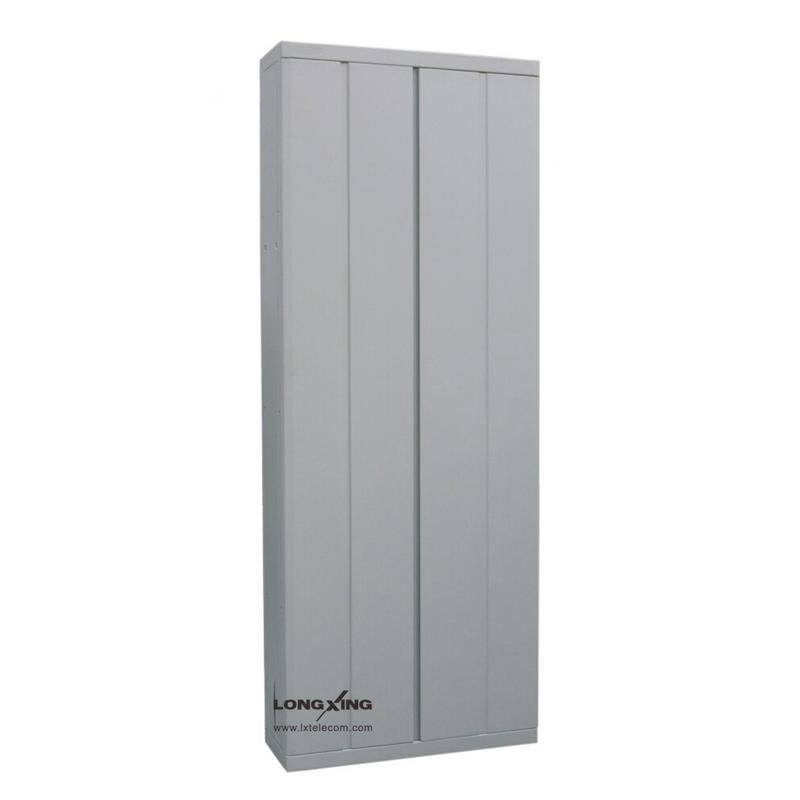

LongXing optical fiber distribution frame GPX09P is made of top quality steel and deformed aluminum alloy and treated with galvanizing, oxidation and electrostatic plastic spraying. The frame has solid structure and pleasing appearance.
Features
l This frame is made of top quality steel and deformed aluminum alloy and treated with galvanizing, oxidation and electrostatic plastic spraying.
l The frame has solid structure and pleasing appearance.

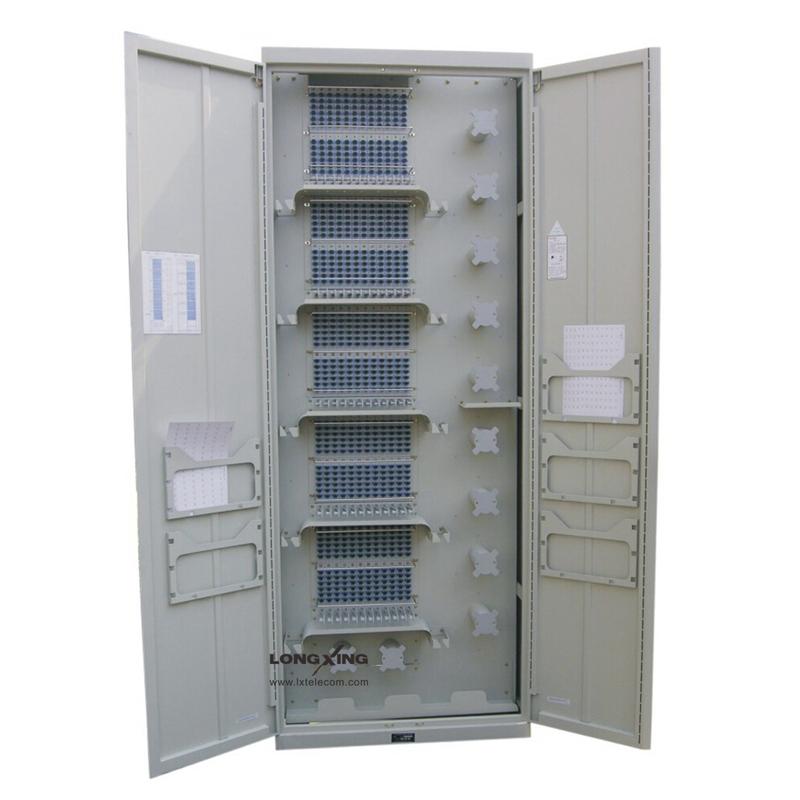

l The indoor frame contains the functions of optical fiber terminal, distribution, transfer and storage, with the advantage of big capacity, convenient for operation, as well as plays a major role in optical cable communications.
l Fully front side operation.

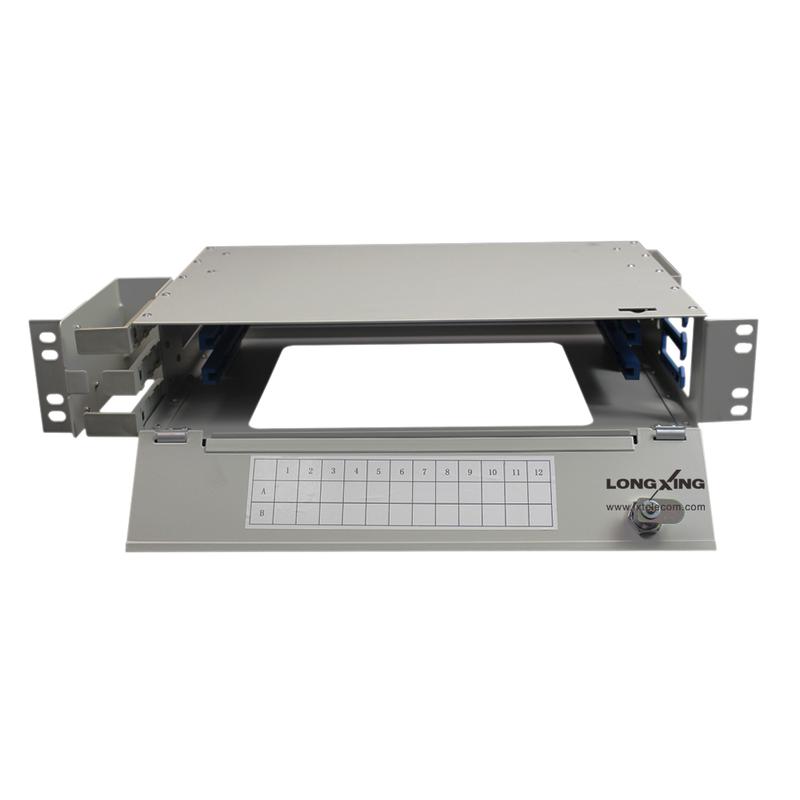

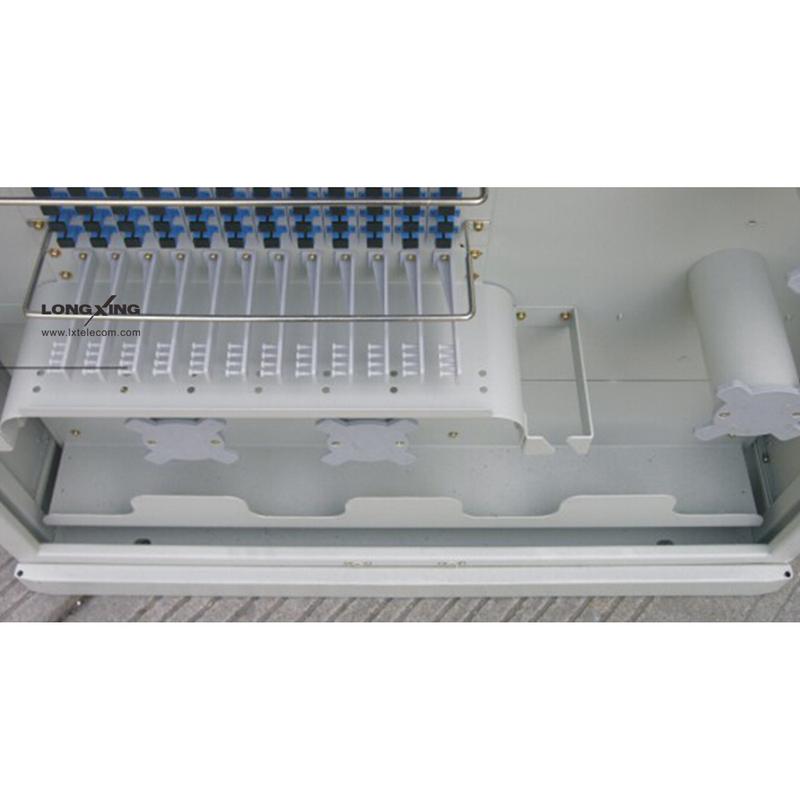

l Adapters are installed on the 12 cores splice and distribution integrated tray, as well as the tray is installed on the tray rack mount. (Capacity subjects to different requirements)

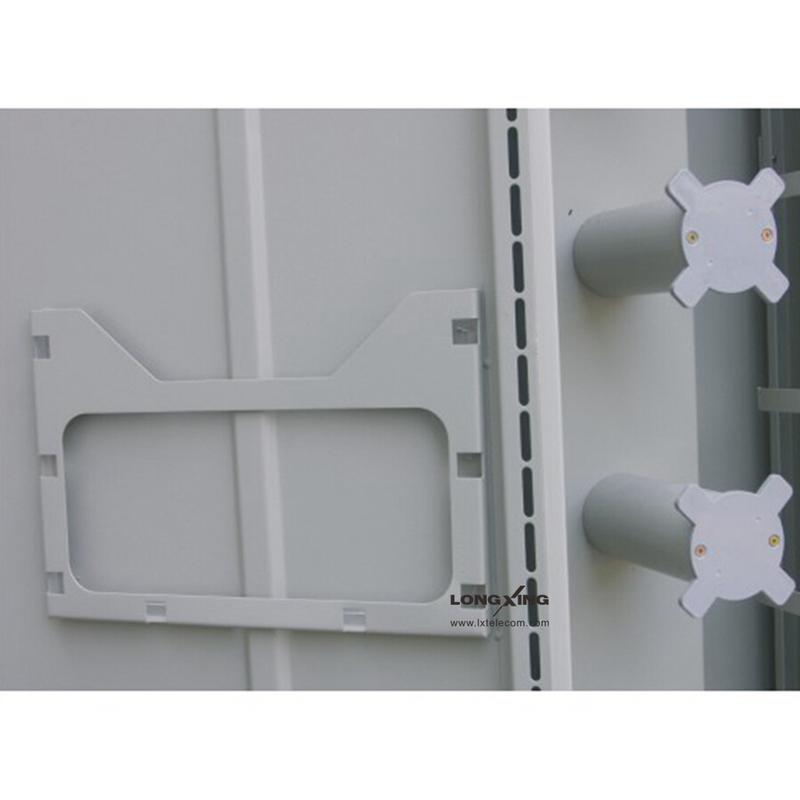

l Cable and pigtail can be inlet from the top of the frame. Cable (fiber) inlet hole is protected by cable-protected belt and contains enough space for fiber crossing.
l Both left and right sides of the frame are embedded removable structure, as well as the side rack should be removed when frames combine.
Add To Quote List
Add To Compare
Inquiry Now
l The frame has solid structure and pleasing appearance.
l The indoor frame contains the functions of optical fiber terminal, distribution, transfer and storage, with the advantage of big capacity, convenient for operation, as well as plays a major role in optical cable communications.
l Fully front side operation.
l Adapters are installed on the 12 cores splice and distribution integrated tray, as well as the tray is installed on the tray rack mount. (Capacity subjects to different requirements)
l Cable and pigtail can be inlet from the top of the frame. Cable (fiber) inlet hole is protected by cable-protected belt and contains enough space for fiber crossing.
l Both left and right sides of the frame are embedded removable structure, as well as the side rack should be removed when frames combine.
| Dimensions and Capability | |||
| Dimensions(H*W*D) | Capacity(Core / Unit) | Max Unit | Max Capacity |
| 2000*840*300 | 144 | 4 | 576 |
| 2200*840*300 | 144 | 5 | 720 |
| 2600*900*300 | 144 | 6 | 864 |
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | ODF 1 unit |
| Package Dimensions(W*H*D) | It depends on the dimensions of the product |
| Material | wooden box |
| Weight | It depends on the dimensions of the product |
| Lead Time | 10-15 working days normally |
