Mechanical Specification | |||
Parameter | 4 Channel | ||
MUX | DEMUX | ||
Channel Wavelength(nm) | C20 - C23 | ||
Center wavelength Accuracy(nm) | ±0.1 | ||
Channel Spacing (GHz) | 100 | ||
Channel Passband (@-0.5dB bandwidth) (nm) | >0.25 | ||
Insertion Loss(dB) | ≤2.0 | ||
Isolation(dB) | Adjacent | >30 | |
Non-adjacent | >40 | ||
Insertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||
Wavelength Temperature Shifting (nm/℃) | <0.002 | ||
Polarization Dependent Loss(dB) | <0.2 | ||
Polarization Mode Dispersion(PS) | <0.1 | ||
Directivity(dB) | >50 | ||
Return Loss(dB) | >45 | ||
Maximum Power Handling(mW) | 300 | ||
Operating Temperature(℃) | -25 ~ +70 | ||
Storage Temperature(℃) | -40 ~ +85 | ||

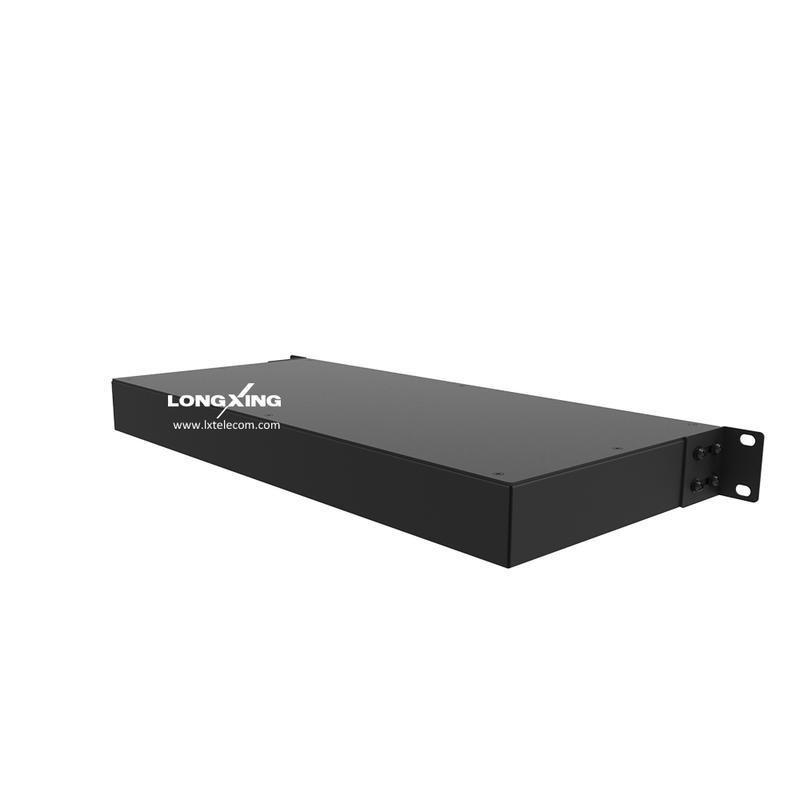

LGX Chassis Dimensions(L*W*H) (mm) | L482.6 x W200 x H44 | ||

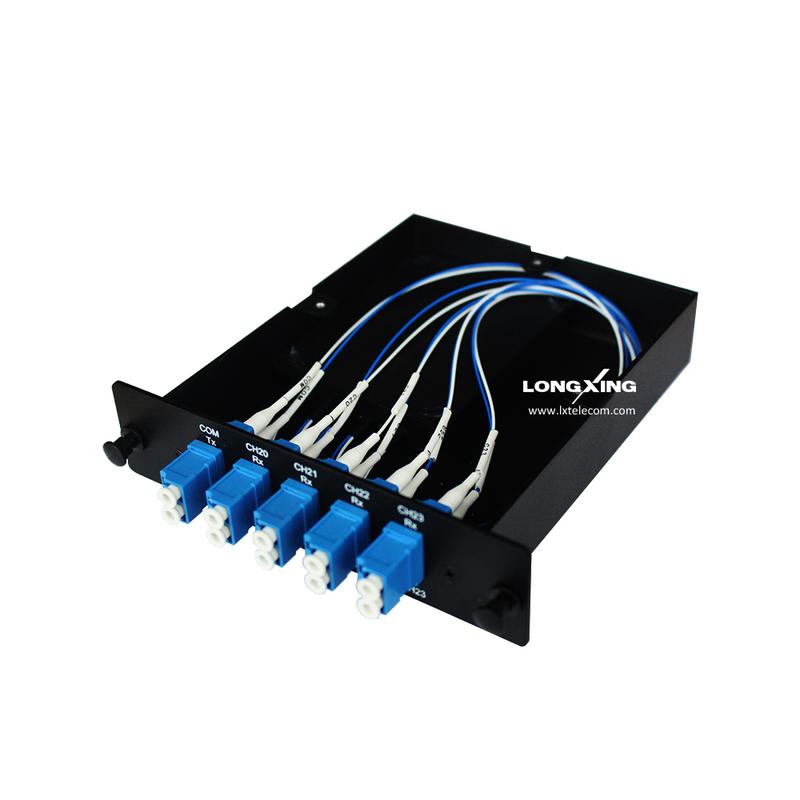

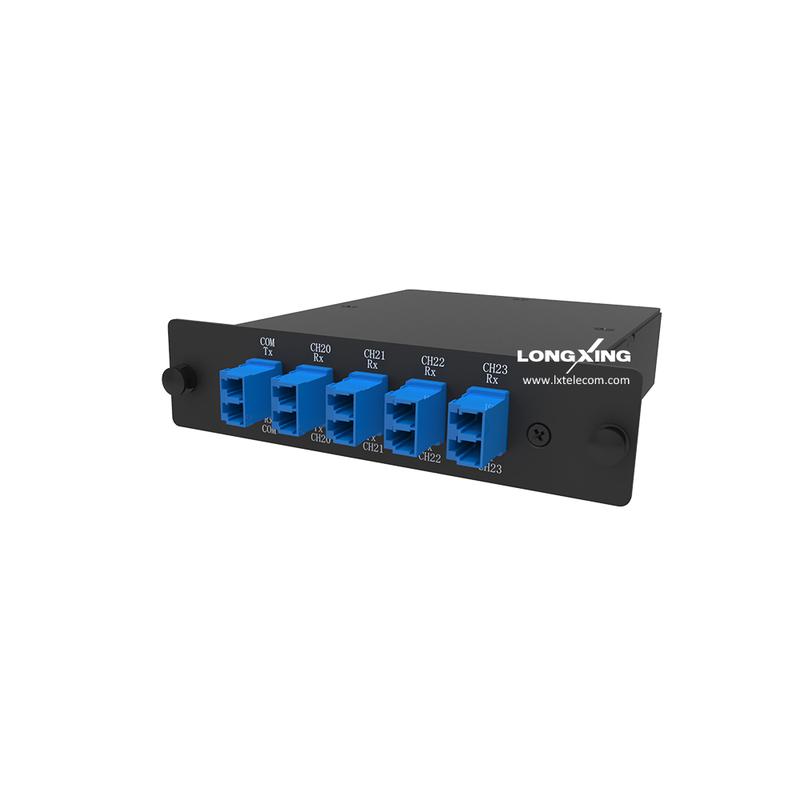

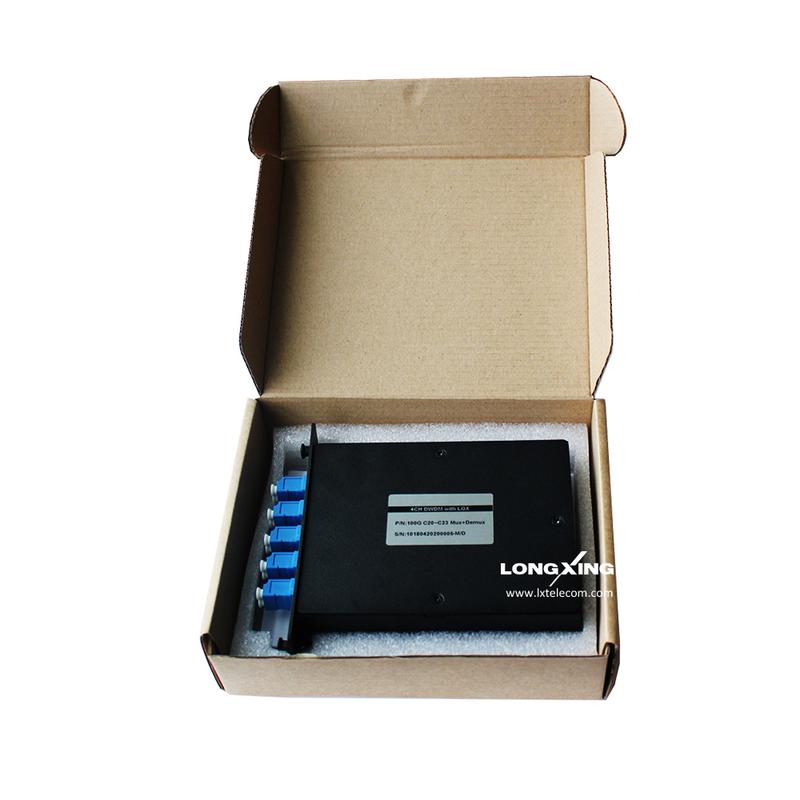

LGX Cassette Dimensions(L*W*H) (mm) | L129 x W102 x H28 |
