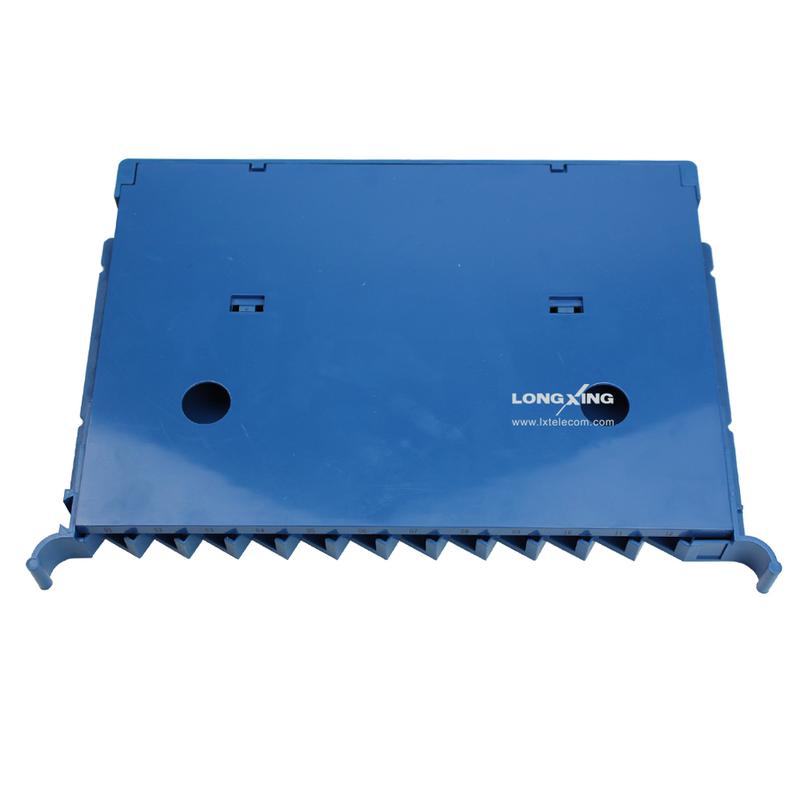

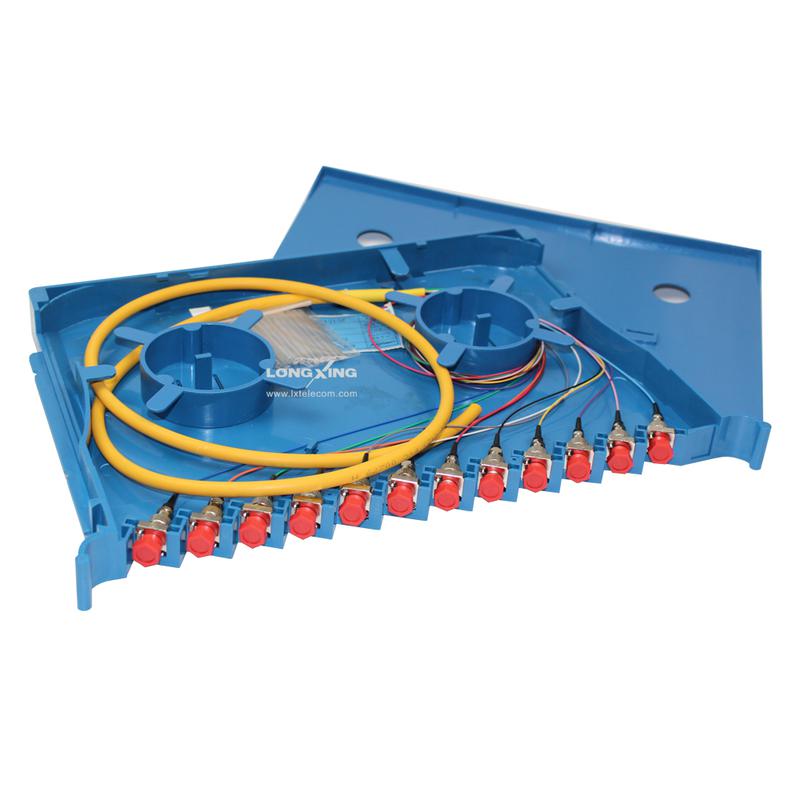

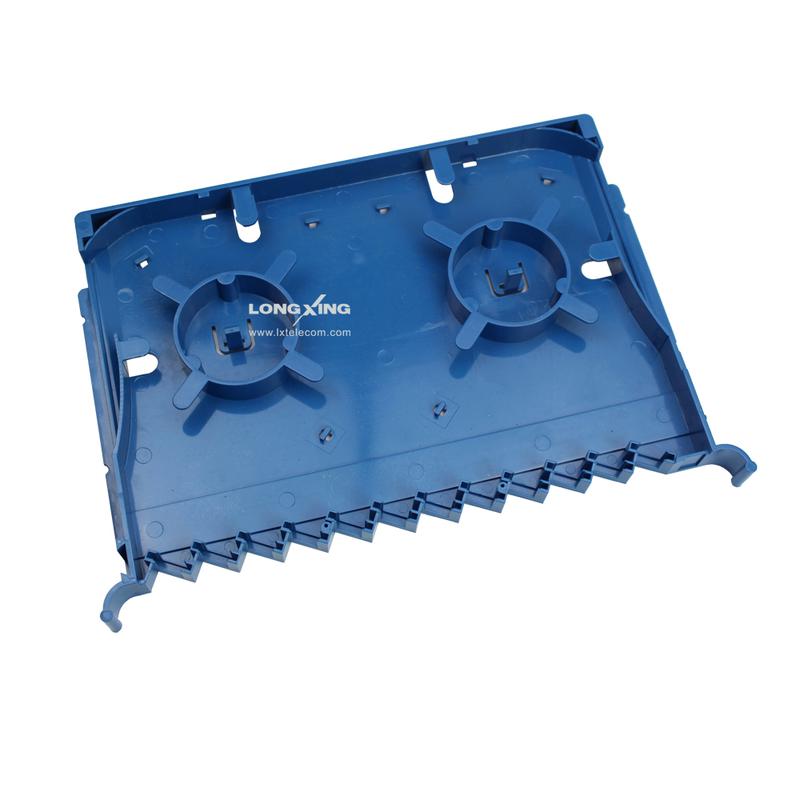

Optical Storage & Patching Module Series A (A5)
Overview
Optical distribution module Series AP-A5 is designed for the purpose of optic fiber patching, storage and protection within closures
, patch panels, fiber optical outdoor cabinets etc. LongXing provides the highest quality fiber management trays at the best prices.
Features
l ABS material
l Light and beautiful plastic structure
l RoHS compliant
l Ensuring minimum fiber bending radius
l A cover-plate on the tray for protection
l Multi functions: patching and storage
l Suitable for many kinds of adapters: FC, SC, ST, LC etc.
l Suitable for both ribbon fiber and bundle fiber
l Suitable for all kinds of equipment designed according to 19 inches machine frame standard
l Adapters are installed with a certain angel, easy for maintenance
Add To Quote List
Add To Compare
Inquiry Now
l Light and beautiful plastic structure
l RoHS compliant
l Ensuring minimum fiber bending radius
l A cover-plate on the tray for protection
l Multi functions: patching and storage
l Suitable for many kinds of adapters: FC, SC, ST, LC etc.
l Suitable for both ribbon fiber and bundle fiber
l Suitable for all kinds of equipment designed according to 19 inches machine frame standard
l Adapters are installed with a certain angel, easy for maintenance
| Dimensions and Capability | |
| Dimensions (H*W*D) | 25*303.4*205 mm |
| Function | Fiber patching and storage |
| Adapter Capacity | 12 for SC / FC / ST adapters 24 for LC adapters |
| Direction for exit cable | Left |
| Color | Blue |
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Optical distribution modules |
| Package Dimensions(W*H*D) | 170mm*50mm*130mm |
| Material | Carton box |
| Weight | 0.65 KG |
| Lead Time | 10-15 working days normally |
