Optical Splice & Distribution Module Series A (A0, A1, A2, A3, A4)
Overview
Optical distribution modules are designed for the purpose of optic fiber organization, storage and fiber optic fusion protection withinclosures, patch panels, fiber optical
outdoor cabinets etc. LongXing provides the highest quality fiber management trays at the best prices.
Features
l ABS material
l Light and beautiful plastic structure
l RoHS compliant
l Ensuring minimum fiber bending radius
l Double layer structure and a cover-plate on the tray after fusion
l Multi functions: optical fusion, storage and distribution
l Suitable for many kinds of adapters: FC, SC, ST, LC etc.
l Suitable for both ribbon fiber and bundle fiber
l Suitable for all kinds of equipment designed according to 19 inches machine frame standard
l Adapters are installed with a certain angel, easy for maintenance, and low transmission loss
Add To Quote List
Add To Compare
Inquiry Now
l Light and beautiful plastic structure
l RoHS compliant
l Ensuring minimum fiber bending radius
l Double layer structure and a cover-plate on the tray after fusion
l Multi functions: optical fusion, storage and distribution
l Suitable for many kinds of adapters: FC, SC, ST, LC etc.
l Suitable for both ribbon fiber and bundle fiber
l Suitable for all kinds of equipment designed according to 19 inches machine frame standard
l Adapters are installed with a certain angel, easy for maintenance, and low transmission loss
| Dimensions and Capability | |||||

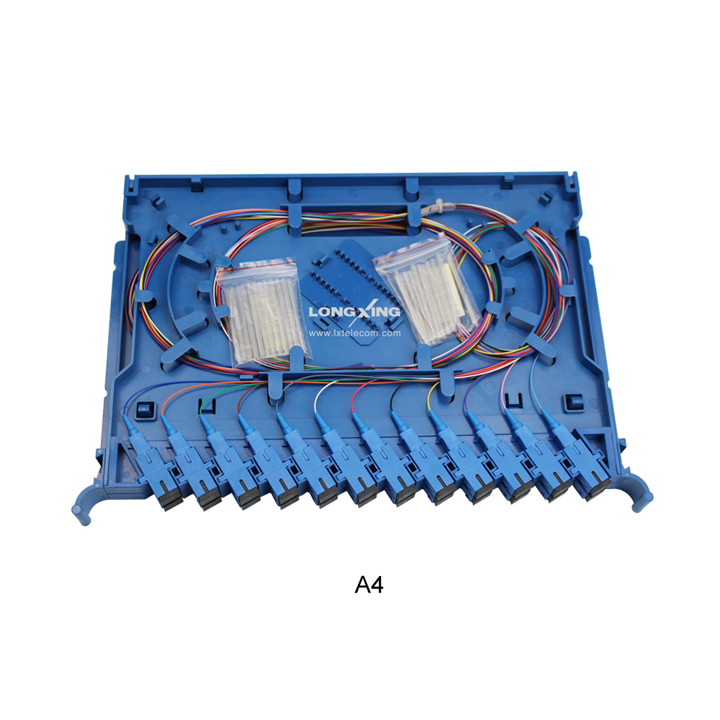

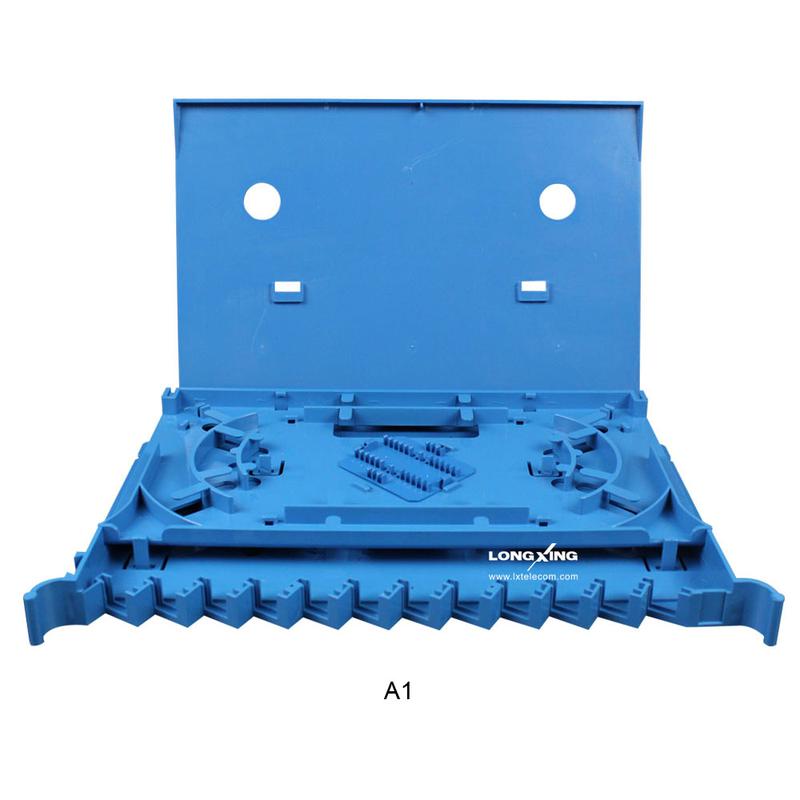

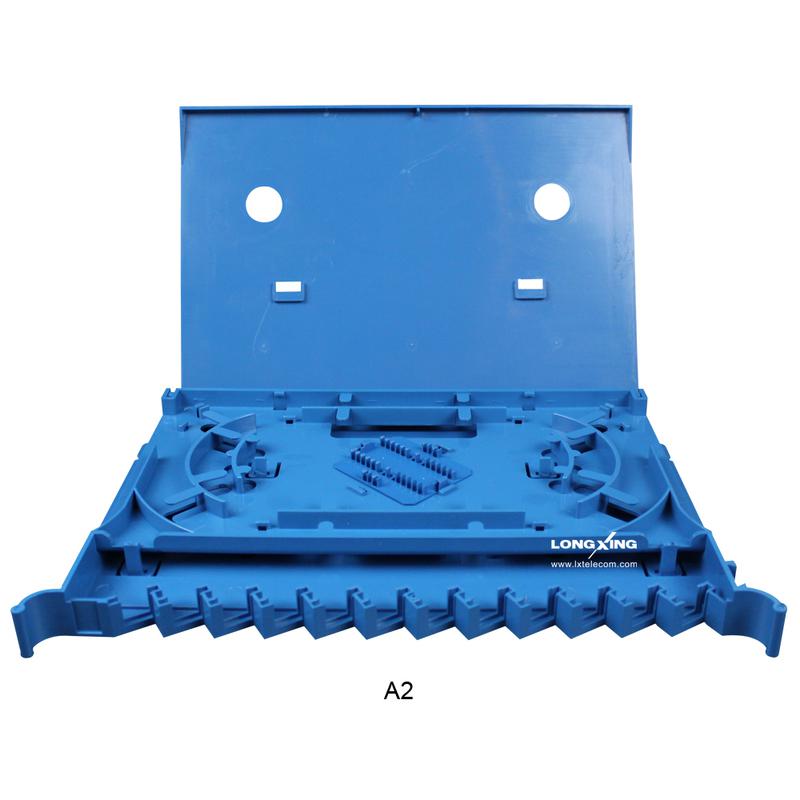

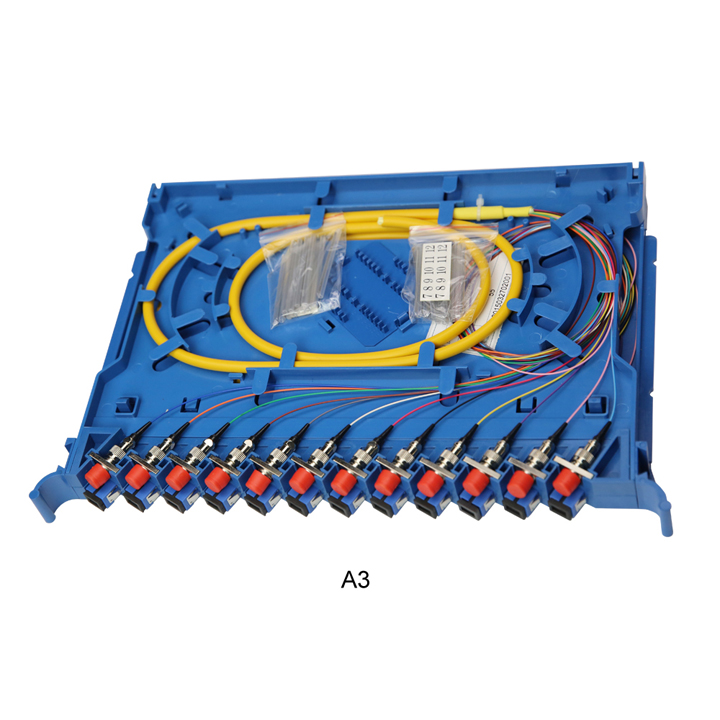

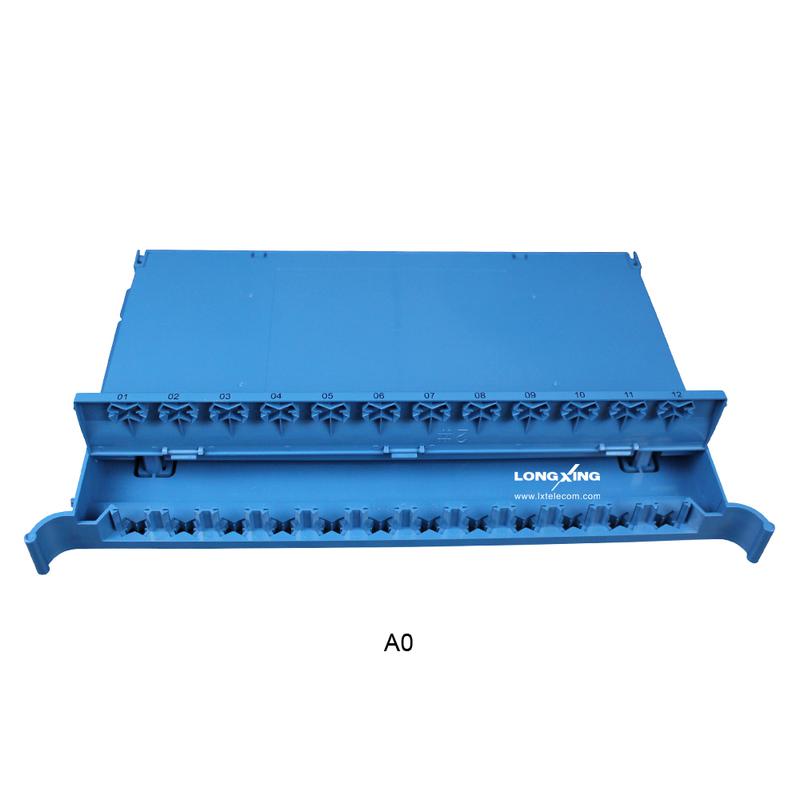

| A0 | A1 | A2 | A3 | A4 | |
| Direction for exit cable | Left or right | Left | Right | Left | Right |
| Adapter | SC/ FC/ ST/LC | SC/ FC | |||
| Capacity | 12 fibers for SC/ FC/ ST/LC adapters or 24 fiber for LC duplex adapters |
24 fibers for SC/ FC or 48 fiber for LC duplex adapters |
|||
| Two-layer structure | Upper: splice incoming fibers with pigtails and store over length pigtails Lower: fiber storage and connect pigtails with adapters |
Both layers offer spaces for splicing incoming fibers with pigtails and storing over-length pigtails as well as connection with adapters |
|||
| Color | Blue | ||||
| Dimensions (H*W*D) | 25mm*303.4mm*205 mm | ||||
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Optical distribution modules |
| Package Dimensions(W*H*D) | 170mm*50mm*130mm |
| Material | Carton box |
| Weight | 0.65 KG |
| Lead Time | 10-15 working days normally |
