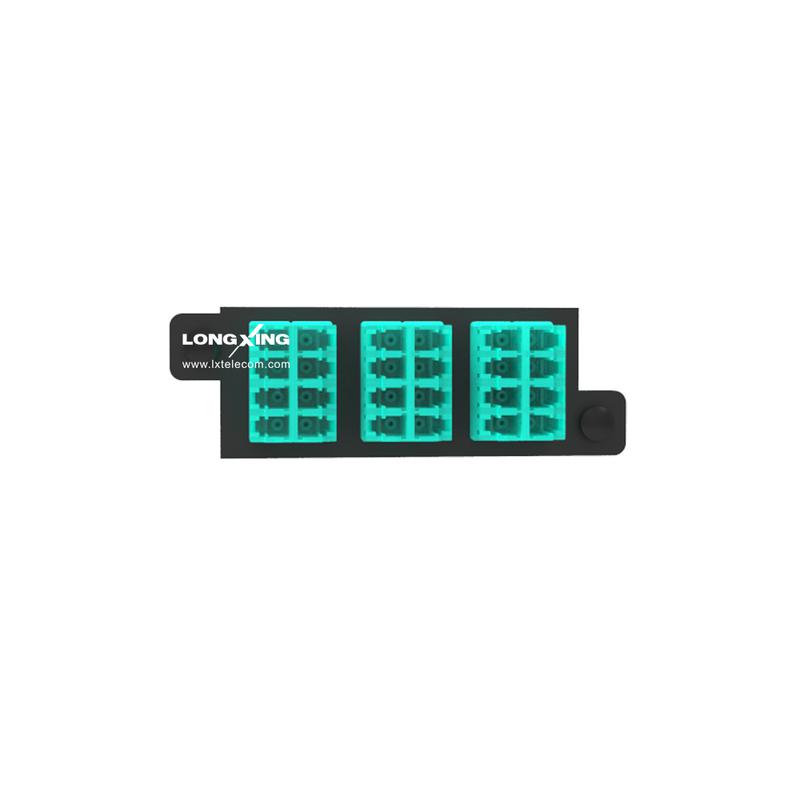

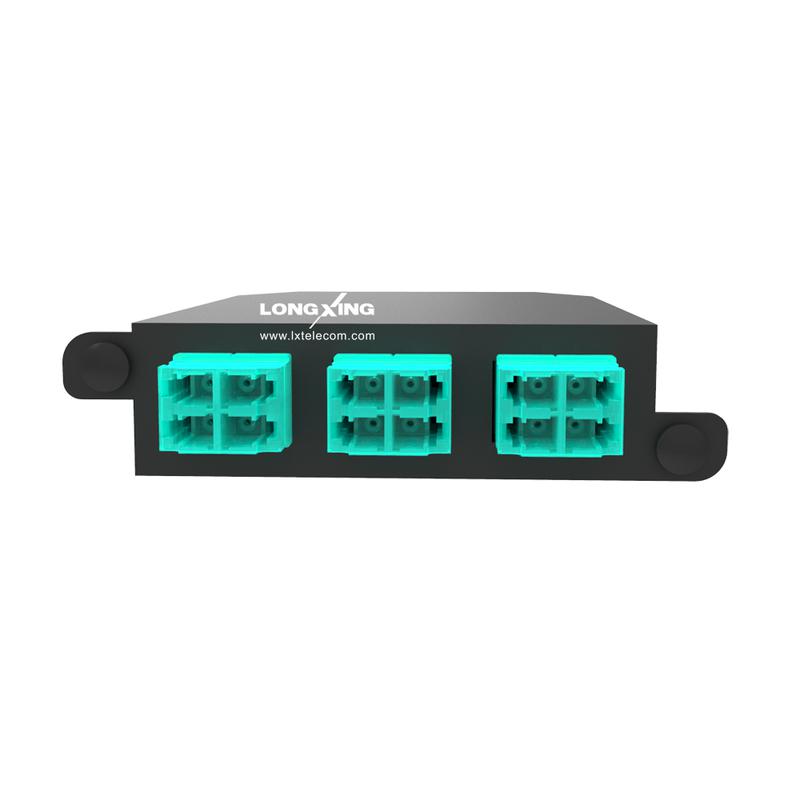

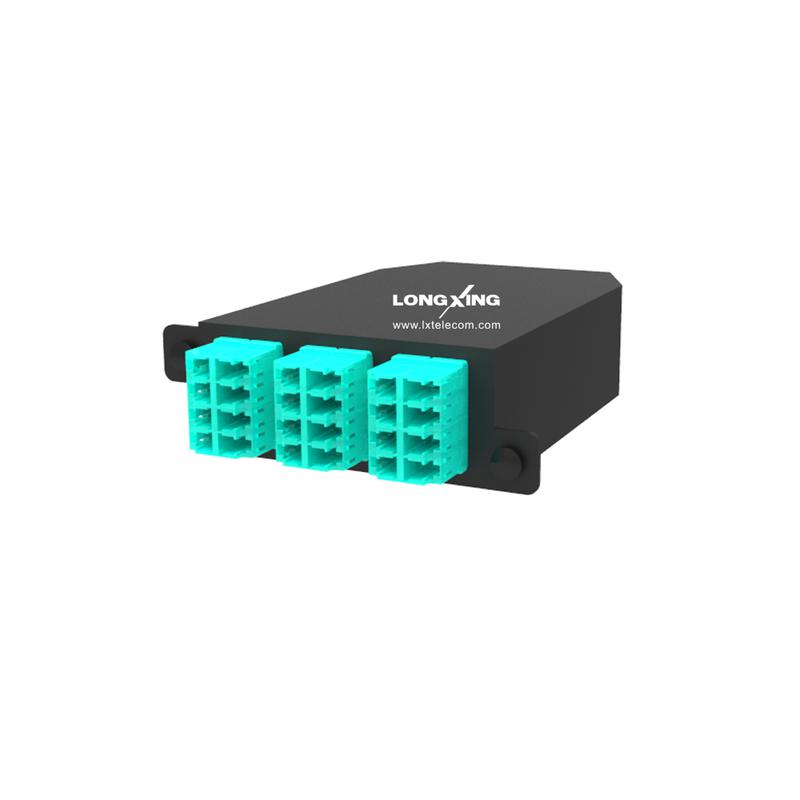

MTP/MPO Cassette LX-L
Overview
LongXing's pre-terminated MTP/MPO Adapter Cassettes provide a high density connection from LC, LC/APC, or SC fiber ports to MTP/MPO backbone trunks. These MTP/MPO cassettes are ideal for accompanying LongXing’s High Density and MPO fiber distribution patch panel enclosures. Featured options include 12 fiber ports, or 24 fiber ports in single-mode or multimode selections per MPO/MTP connection.
Features
l Compatible with LongXing Rack Mount ODU-18 HD Series Fiber Enclosures/Patch Panels
l Up to 4 Fiber Cassettes per 1U Fiber Patch Panel
l Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
l Available with LC, LC/APC, SC and MTP/MPO Adapters
l Easily Accessible MTP/MPO Ports for Connection to Trunk Cable
l Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.
Add To Quote List
Add To Compare
Inquiry Now
l Up to 4 Fiber Cassettes per 1U Fiber Patch Panel
l Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
l Available with LC, LC/APC, SC and MTP/MPO Adapters
l Easily Accessible MTP/MPO Ports for Connection to Trunk Cable
l Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.
| Technical Specifications | ||
| SPECIFICATION | LX-L-1 | LX-L-2 |
| Total Fiber Count | 12 | 24 |
| Front Adapter Type | LC Duplex | LC QUAD |
| Front Port Count | 6 | 6 |

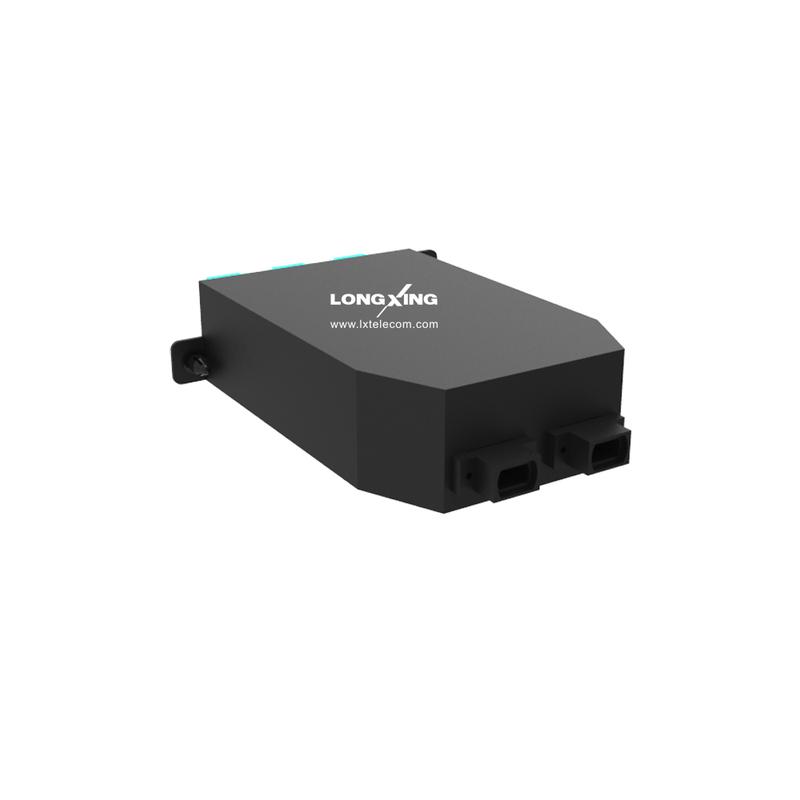

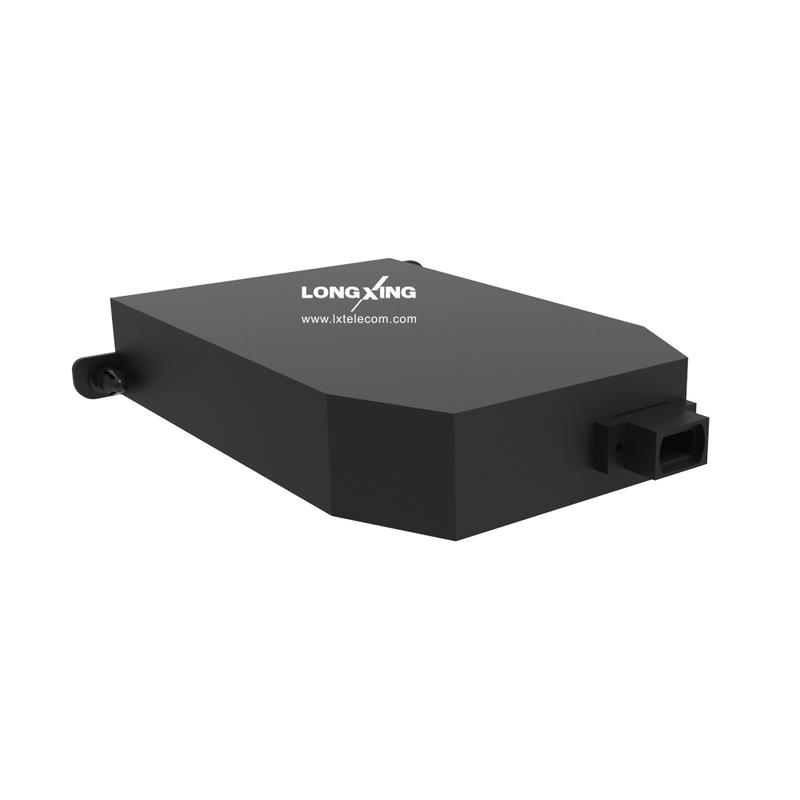

| Rear Adapter Type | MTP/MPO | MTP/MPO |
| Rear Port Count | 1 | 2 |
| Return Loss (MTP/MPO) | > 25 dB | |
| Insertion Loss (MTP/MPO) | Typical 0.15dB; Max 0.70dB | |
| Return Loss (LC) | > 50 dB | |
| Insertion Loss (LC) | Typical 0.15dB; Max 0.30dB | |
| Color | Black | |
| Material | Cold-rolled Steel | |
