MTP/MPO Fiber Optic Trunk Cable
Overview
MPO/MTP is the industry acronym for multi-fiber push on. LongXing’s new MPO/MTP connector offers up to 24 times the density of standard connectors, providing significant space and cost savings. MPO/MTP Connectors utilize precision molded MT Ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating.
Features
l Color coded connector;housings are available to differentiate fiber type as follows:

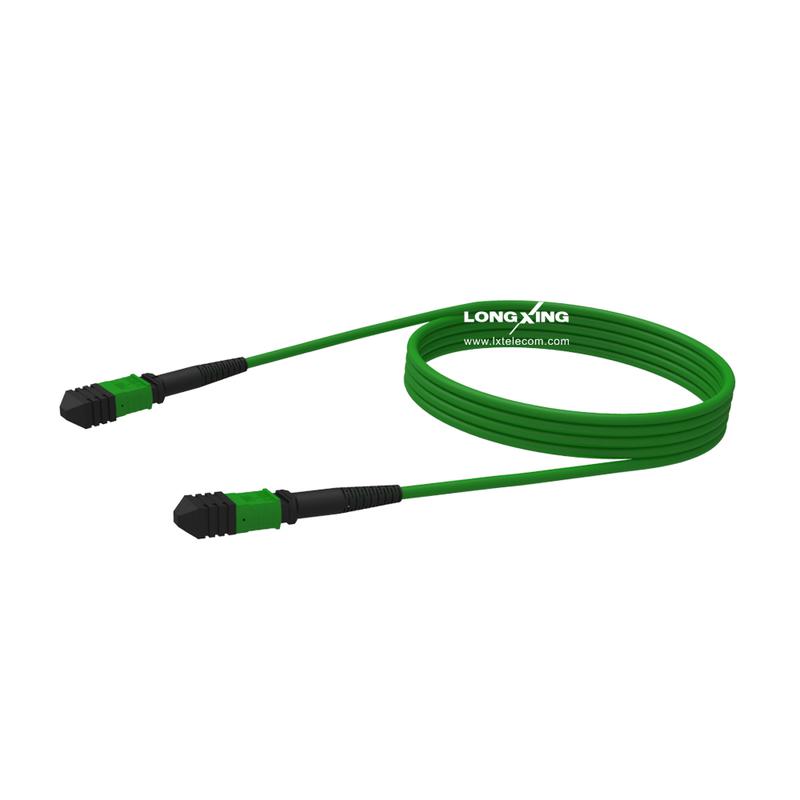

Ø Green for SM
Ø Yellow for SM Super Low loss
Ø Beige for MM

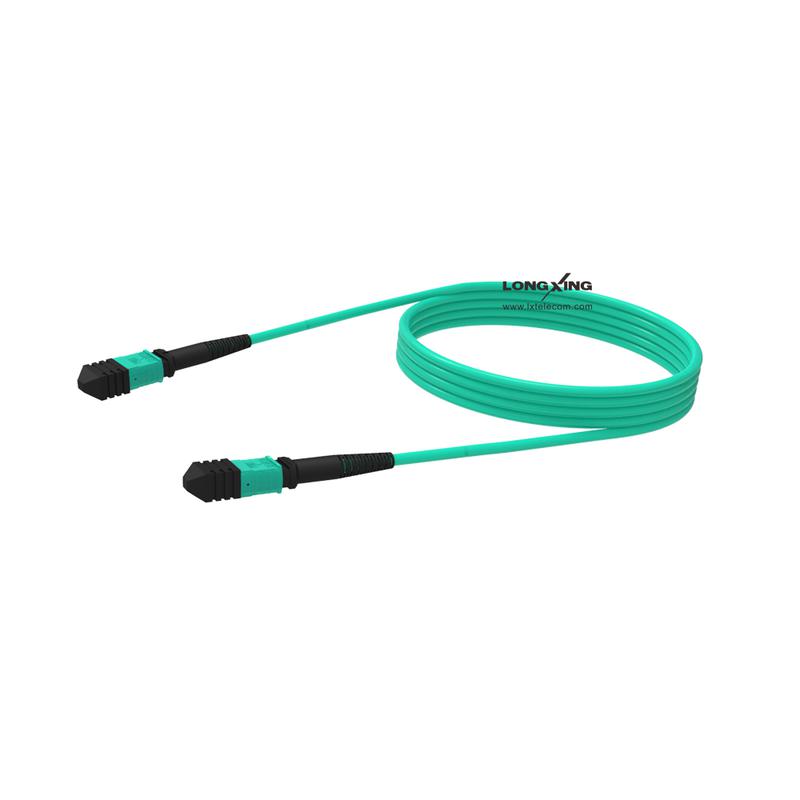

Ø Aqua for OM3 Fiber
Ø Heather-Violet for OM4 Fiber
l Capacity are available in 4, 8, 12 and 24.
l Ferrule are available for SM Standard, SM Super Low Loss, MM Standard and MM Low Loss.
l Boots are available for Ribbon Cable, Ribbon Fiber and Round boot.
Add To Quote List
Add To Compare
Inquiry Now
Ø Green for SM
Ø Yellow for SM Super Low loss
Ø Beige for MM
Ø Aqua for OM3 Fiber
Ø Heather-Violet for OM4 Fiber
l Capacity are available in 4, 8, 12 and 24.
l Ferrule are available for SM Standard, SM Super Low Loss, MM Standard and MM Low Loss.
l Boots are available for Ribbon Cable, Ribbon Fiber and Round boot.
| Technical Specifications | ||||
| SPECIFICATION | SM STANDARD | MM STANDARD | ||
| MPO | Typical | Max | Typical | Max |
| Insertion Loss | 0.2 dB | 0.7 dB | 0.15 dB | 0.50 dB |
| Return Loss | 60 dB (8° Polish) | 25 dB (Flat Polish) | ||
| Durability | <0.30dB change 500 matings | <0.20dB change 1000 matings | ||
| Ferrule type available | 4, 8, 12, 24 | 4, 8, 12, 24 | ||
| Operating Temperature | -40 to +75ºC | |||
| Storage Temperature | -40 to +85ºC | |||
| Wire map configurations | |||||
| Straight Type A wiring | Total flipped Type B wiring | Pair flipped Type C wiring | |||
| Fiber | Fiber | Fiber | Fiber | Fiber | Fiber |
| 1 | 1 | 1 | 12 | 1 | 2 |
| 2 | 2 | 2 | 11 | 2 | 1 |
| 3 | 3 | 3 | 10 | 3 | 4 |
| 4 | 4 | 4 | 9 | 4 | 3 |
| 5 | 5 | 5 | 8 | 5 | 6 |
| 6 | 6 | 6 | 7 | 6 | 5 |
| 7 | 7 | 7 | 6 | 7 | 8 |
| 8 | 8 | 8 | 5 | 8 | 7 |
| 9 | 9 | 9 | 4 | 9 | 10 |
| 10 | 10 | 10 | 3 | 10 | 9 |
| 11 | 11 | 11 | 2 | 11 | 12 |
| 12 | 12 | 12 | 1 | 12 | 11 |
