Fiber Optics Distribution Box GP31-2P48A
Overview
This distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
l Total enclosed structure.
l Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP55.
l Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
l Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

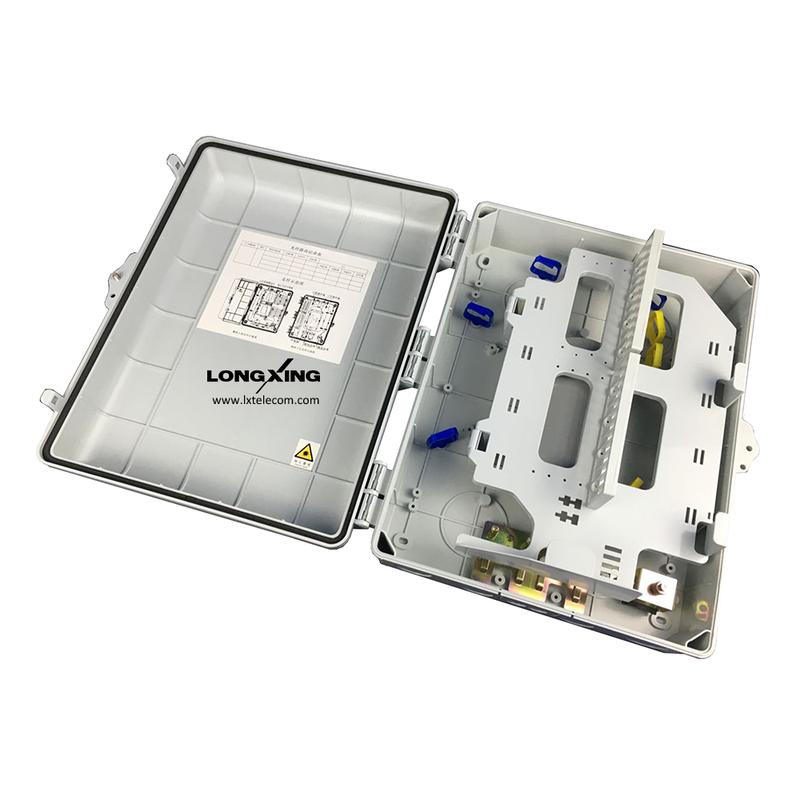

l Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

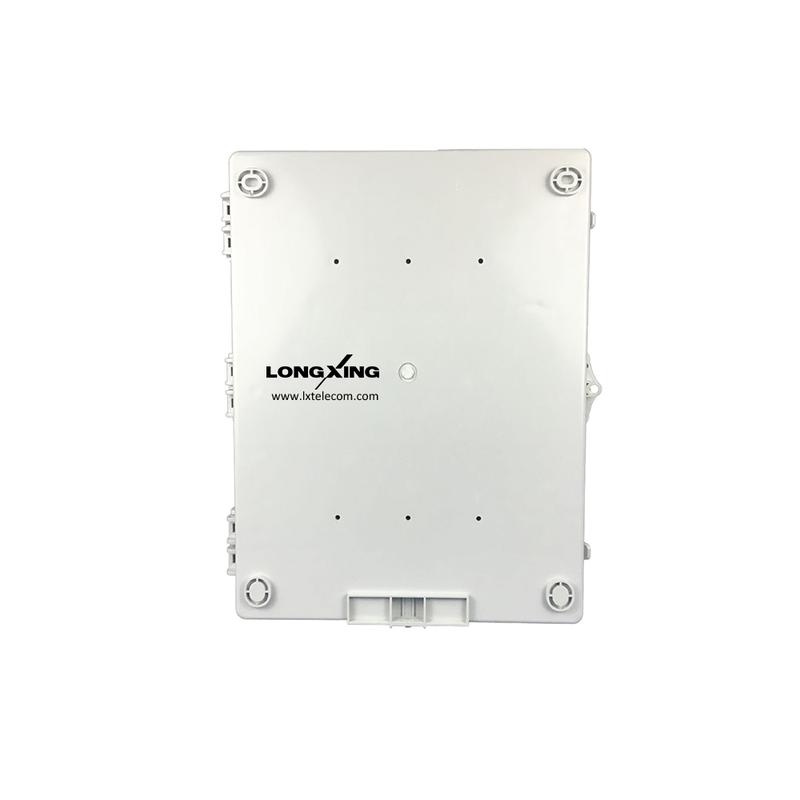

l Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Add To Quote List
Add To Compare
Inquiry Now
l Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP55.
l Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
l Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
l Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
l Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
| Dimensions and Capability | ||||
| Box Size(Fig.1) | Max Capacity | Installation Size(Fig.2) | ||
| AxBxC (mm) | Splitter | Splice | AxB (mm) | |
| 410x370x130 | 48 | 48 | 340x258 | |
| Operation Conditions | |
| Working Temperature | -40℃ -- +85℃ |
| Relative Humidity | ≤ 85% (+30℃) |
| Atmospheric pressure | 70kPa – 106kPa |
| Main Technical Datasheet | ||
| Insertion loss | ≤ 0.2 dB | |
| UPC return loss | ≥ 50 dB | |
| APC return loss | ≥ 60 dB | |
| Life of insertion and extraction | ＞ 1000 times | |
| Shipping Information | ||

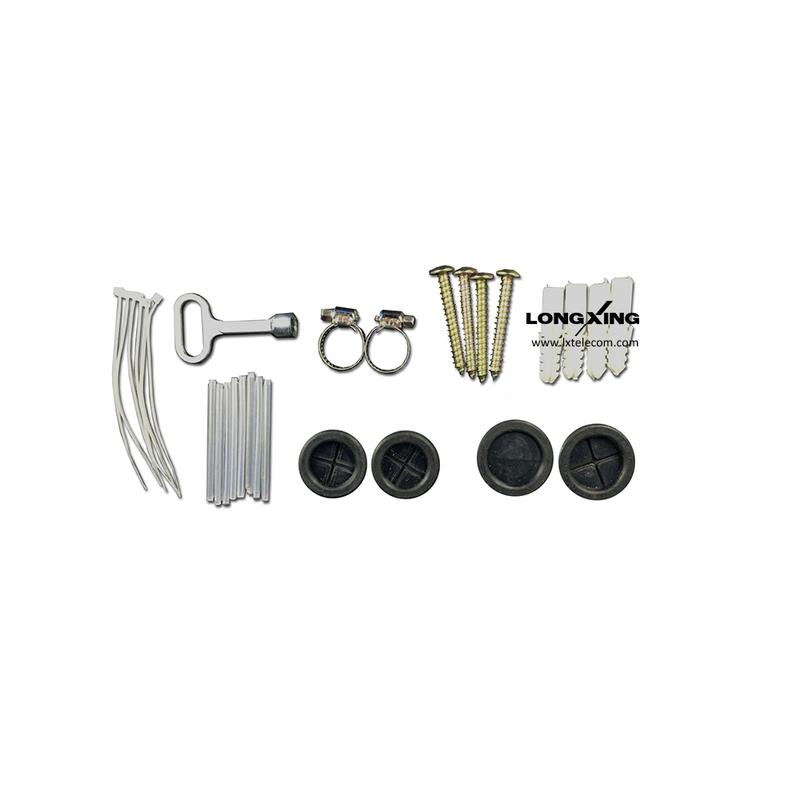

| Package Contents | Terminal box, 1 unit; Keys for lock, 2 keys; Accessories | |
| Package Dimensions(W*H*D) | 430 mm*390 mm*150 mm | |
| Material | Carton Box | |
| Weight | 1.8 KG | |
| Lead Time | 10-15 working days normally | |
