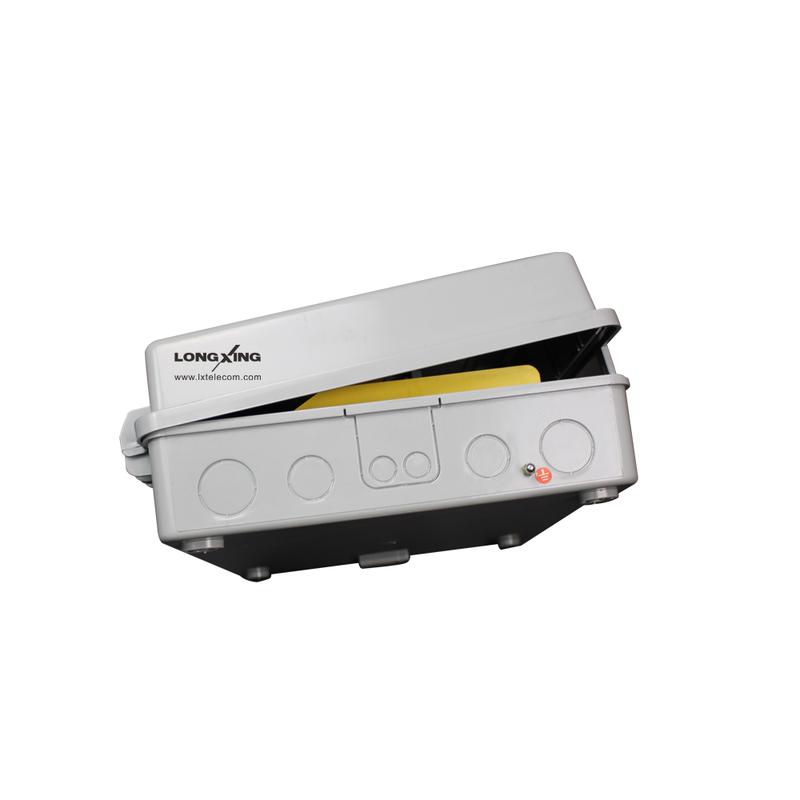

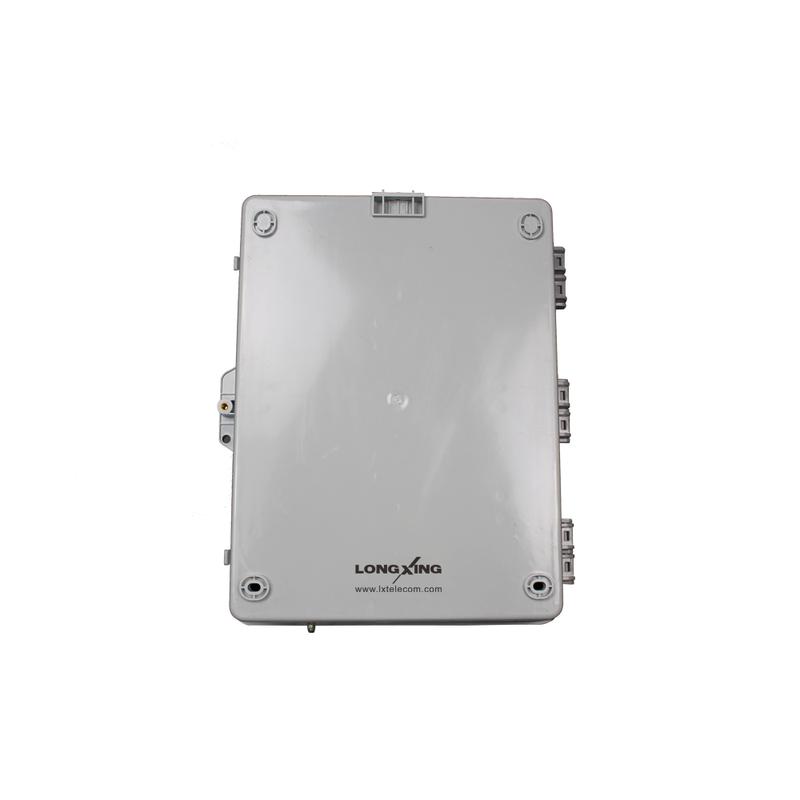

Fiber Optics Distribution Box GP31-2P32B
Overview
This distribution box terminates up to 2 fiber optic cables, offers spaces for splitters and up to 48 fusions, allocates 32 SC adapters and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Features
l Water-proof design for outdoor uses.
l Easy installations: Ready for wall mount and pole mount
l Ready for splitters: designed space for blade splitters.

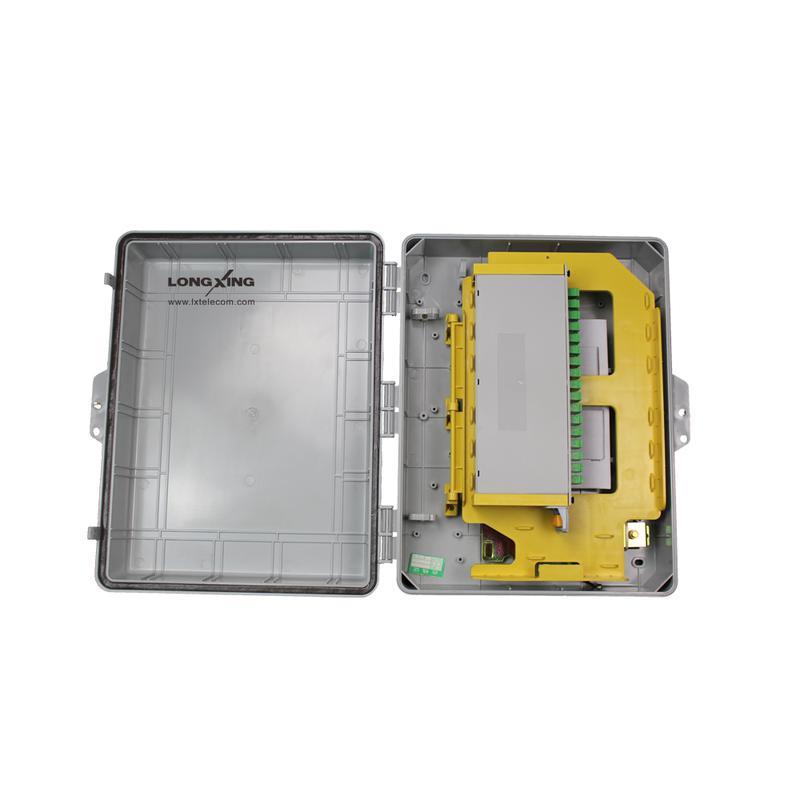

l Double-layer design for easier installation and maintenances:

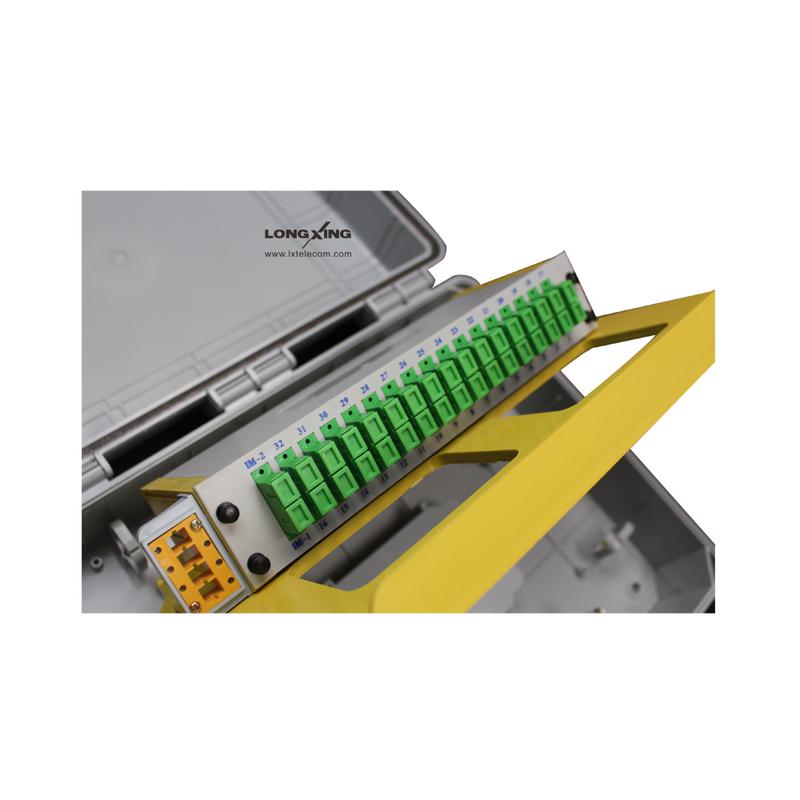

l Upper layer for splitters and distribution

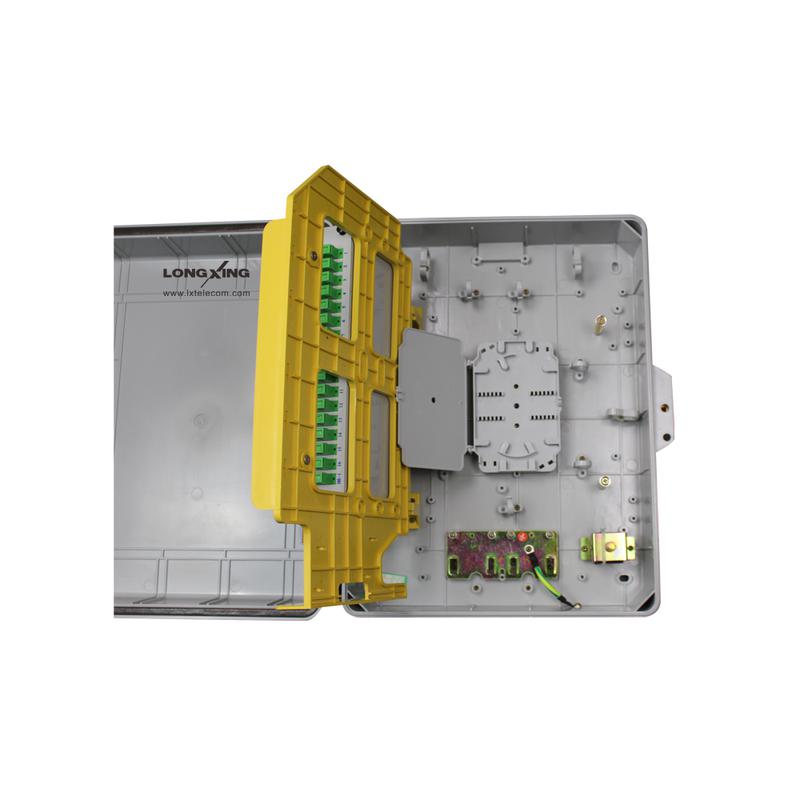

l Lower layer for splicing
l Cable fixing units provided for fixing the outdoor optical cable.
l Protection Level: IP 55.
l Accommodates both cable glands as well as tie-wraps
l Lock provided for extra security.
l 6 Adapter-Parking-Slots
l Four cable entrances: each diameter φ 24.5
l One cable exit: diameter φ 40
| Dimensions and Capability | |
| Adapter Capacity | SC Simplex |
| 32 | |
| Dimensions (W*H*D) | 400 mm*350 mm*110 mm |
| Number of Cable Entrance | Max Diameter 24mm*Q2, 12mm*Q2 |
| Number of Cable Exit | Max Diameter 30mm*Q2, Up to 32 Drop Cables |
| Weight | 1 KG |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Optical Splitter, Splice Tray |
| Installation | Wall-Mounted or Pole-Mounting |
| Operation Conditions | |
| Temperature | -40℃ -- 60℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | ||
| Package Contents | Terminal box, 1 unit; Keys for lock, 2 keys; Wall mount accessories: 1 set. Optional: fusion sleeves, pigtail protection tube, insulating tape, plastic strip, magic Velcro strip, and indoor cable sheath. | |
| Package Dimensions(W*H*D) | 500 mm*450 mm*210 mm | |
| Material | Carton Box | |
| Weight | 1.3 KG | |
| Lead Time | 10-15 working days normally | |
