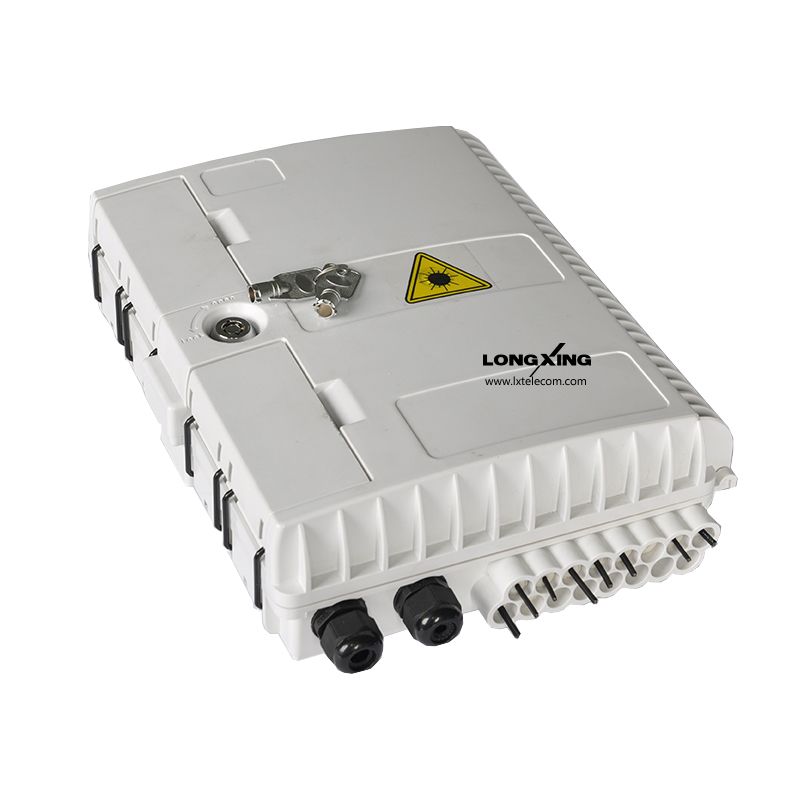

Fiber Optics Distribution Box GP31-2P16D
Overview
This fiber optics distribution box terminates up to 2 fiber optic cables, offers spaces for splitters and up to 16 fusions, allocates 16 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Features
l Water-proof design for outdoor uses.
l Mechanical seal: good sealing, can repeat use. Protective level:IP65.
l Laying: outdoor wall-mounting and pole-mounting.
l FTTH products ,passive optical points wiring special terminal box.
l The box body to scroll type structure, it has the function of guard against theft, large capacity function complete, easy to use.
l Can be installed 1:16 SC or 1:32 LC Mini-splitter.
l LC biggest for 32cores, SC biggest for 32 cores.
Add To Quote List
Add To Compare
Inquiry Now
l Mechanical seal: good sealing, can repeat use. Protective level:IP65.
l Laying: outdoor wall-mounting and pole-mounting.
l FTTH products ,passive optical points wiring special terminal box.
l The box body to scroll type structure, it has the function of guard against theft, large capacity function complete, easy to use.
l Can be installed 1:16 SC or 1:32 LC Mini-splitter.
l LC biggest for 32cores, SC biggest for 32 cores.
| Dimensions and Capability | ||
| Adapter Capacity | LC Duplex | SC Simplex |
| 32 | 16 | |
| Dimensions (W*H*D) | 306mm*240mm*106mm | |
| Number of Cable Entrance | Max Diameter 14mm*Q2 | |
| Number of Cable Exit | Up to 16 Drop Cables | |
| Weight | 1.8 KG | |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Splice Tray, Optical Splitter | |
| Installation | Wall-Mounted or Pole-Mounting | |
| Operation Conditions | |
| Temperature | -40℃ -- 60℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | |
| Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; Wall mount accessories, 1 set |
| Package Dimensions(W*H*D) | 325mm*240mm*118mm |
| Material | Carton box |
| Weight | 2.5 KG |
| Lead Time | 10-15 working days normally |
