Fiber Optics Distribution Box GP31-1P02D
Overview

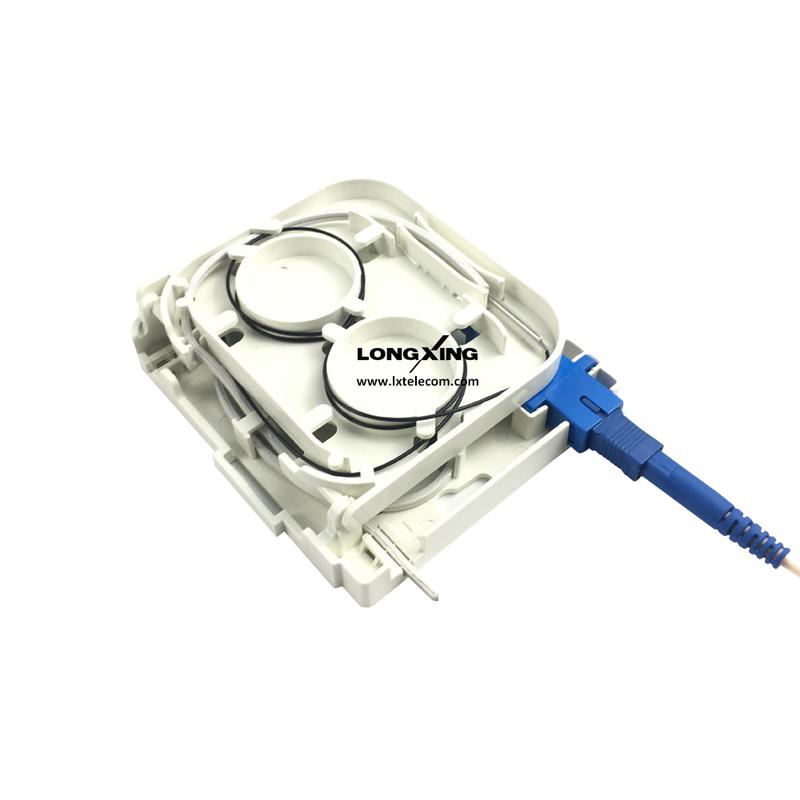

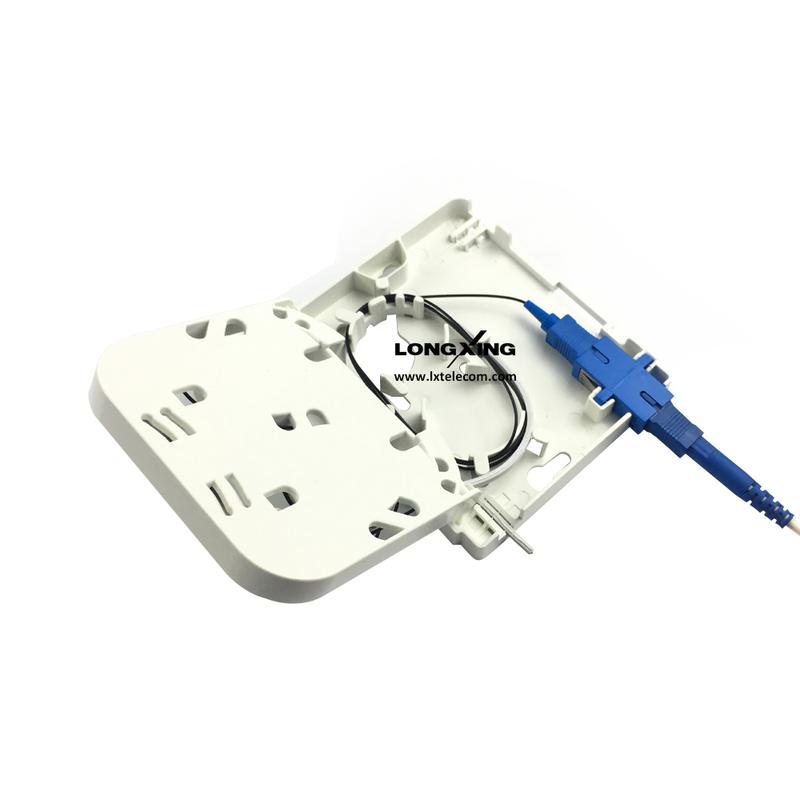

LongXing GP31-1P02D Indoor Fiber Distribution Terminal provides Customer Premises Equipment applications with a compact and secure enclosure for connecting fiber cables within building entrance locations, communications closets, and other indoor environments. This mini style distribution box is widely applied in the FTTX network to connect drop cable and ONU devices through fiber port.
Features
l Used for different kinds of modules and applied to the working area subsystem.
l Embedded surface frame, easy to install and disassemble.
l With protective door and dusty free.
l With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate.
l All modules are free of welding.
l Can do OEM for any customers and print requested LOGO.
Add To Quote List
Add To Compare
Inquiry Now
l Embedded surface frame, easy to install and disassemble.
l With protective door and dusty free.
l With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate.
l All modules are free of welding.
l Can do OEM for any customers and print requested LOGO.
| Dimensions and Capability | |
| Dimensions (W*H*D) | 86mm*115mm*23mm |
| Adapter Capacity | Accommodates 1 fibers with SC adapter 2 fibers with LC duplex adapters |
| Application | 3.0 x 2.0 mm drop cable or indoor cable |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Tight Cladding Diameter | 250μm & 900μm |
| Applicable Mode | Single mode & Duplex mode |
| Tensile strength | > 50 N |
| Insertion loss | ≤0.2dB（1310nm & 1550nm） |
| Output | 1 |
| Shipping Information | |
| Package Contents | Mini terminal box, 1 unit; Wall mount installation accessories, 1 set |
| Package Dimensions(W*H*D) | 100mm*210mm*35mm |
| Material | Carton box |
| Weight | 0.65kg |
| Lead Time | 10-15 working days normally |
