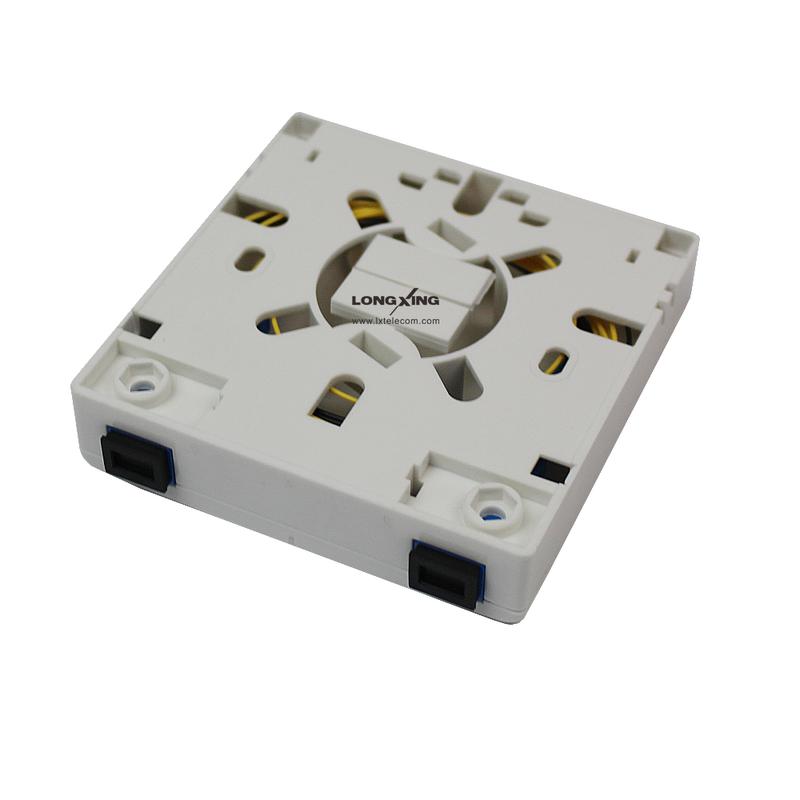

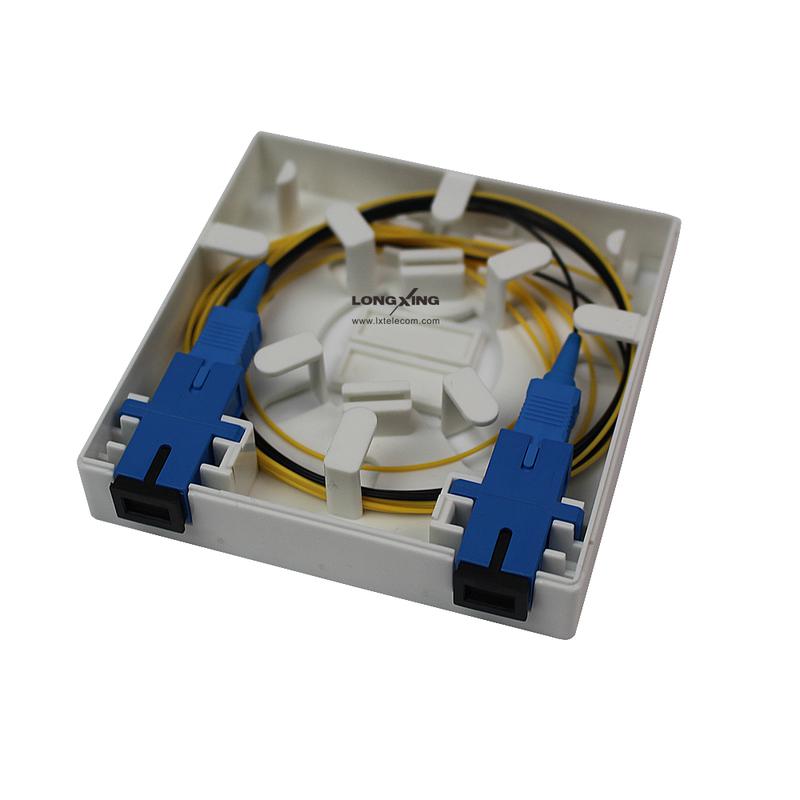

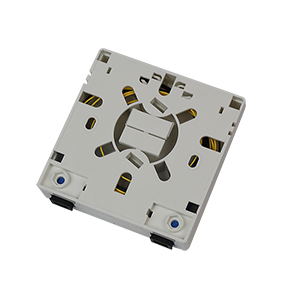

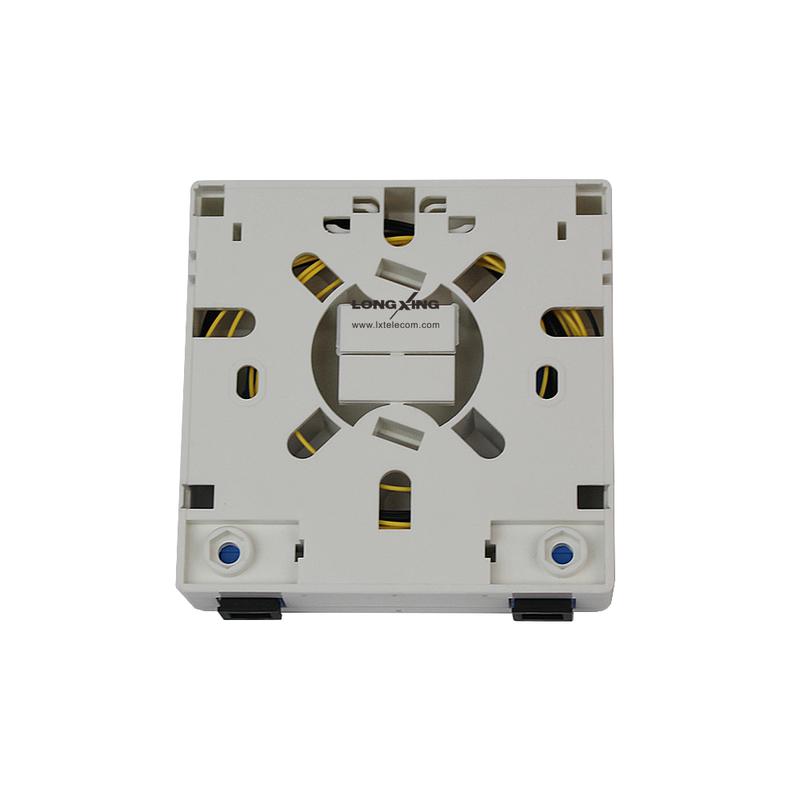

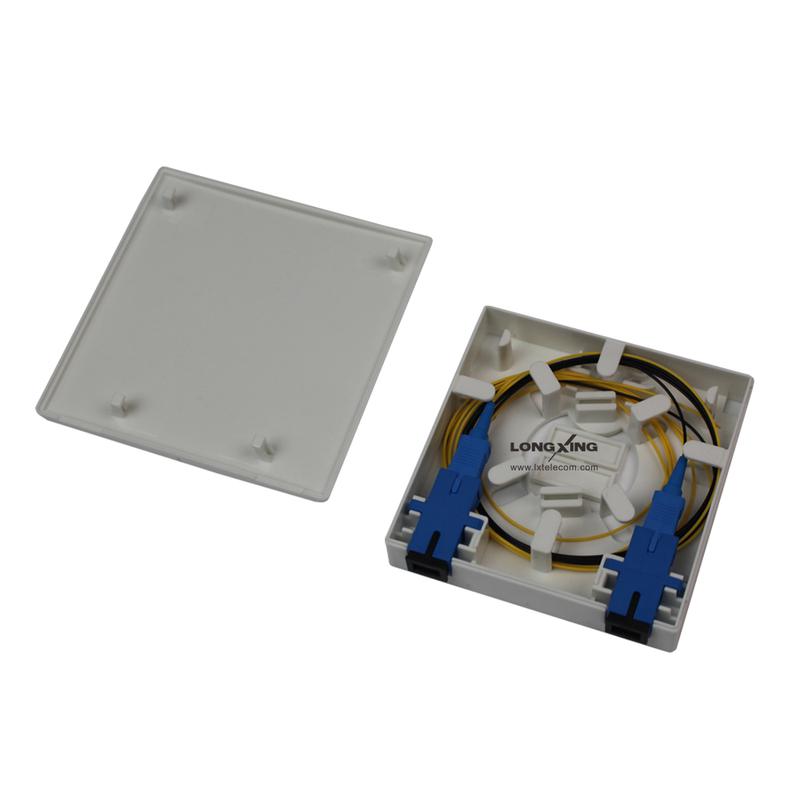

Fiber Optics Distribution Box GP31-1P02A
Overview
This mini style distribution box is widely applied in the FTTX network to connect drop cable and ONU devices through fiber port. It supports splicing, distribution, mechanical connection and wall mounted installation. The capacity of this box can be 1 core, 2 cores and 4 cores.
Features
l ABS material used ensures the body strong and light
l Easy installations: Mount on wall
l Easy operation: plug fiber with no need to open the shell
l Fiber cable inlets from every direction, supporting the cable inlets for different scenarios.
l Adoptable adapter: SC, LC
Add To Quote List
Add To Compare
Inquiry Now
l Easy installations: Mount on wall
l Easy operation: plug fiber with no need to open the shell
l Fiber cable inlets from every direction, supporting the cable inlets for different scenarios.
l Adoptable adapter: SC, LC
| Dimensions and Capability | ||
| Adapter Capacity | LC Duplex | SC Simplex |
| 4 | 2 | |
| Dimensions (W*H*D) | 86mm*86mm*24mm | |
| Number of Cable Entrance | Max Diameter 4mm*Q1 | |
| Weight | 0.65 KG | |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes | |
| Installation | Wall-Mounted | |
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Mini terminal box, 1 unit; Wall mount installation accessories, 1 set |
| Package Dimensions(W*H*D) | 90mm*90mm*30mm |
| Material | Carton box |
| Weight | 0.65kg |
| Lead Time | 10-15 working days normally |
