Fiber Optics Distribution Box GP31-2M96A (Pre GP31-2-A1X-2)
Overview

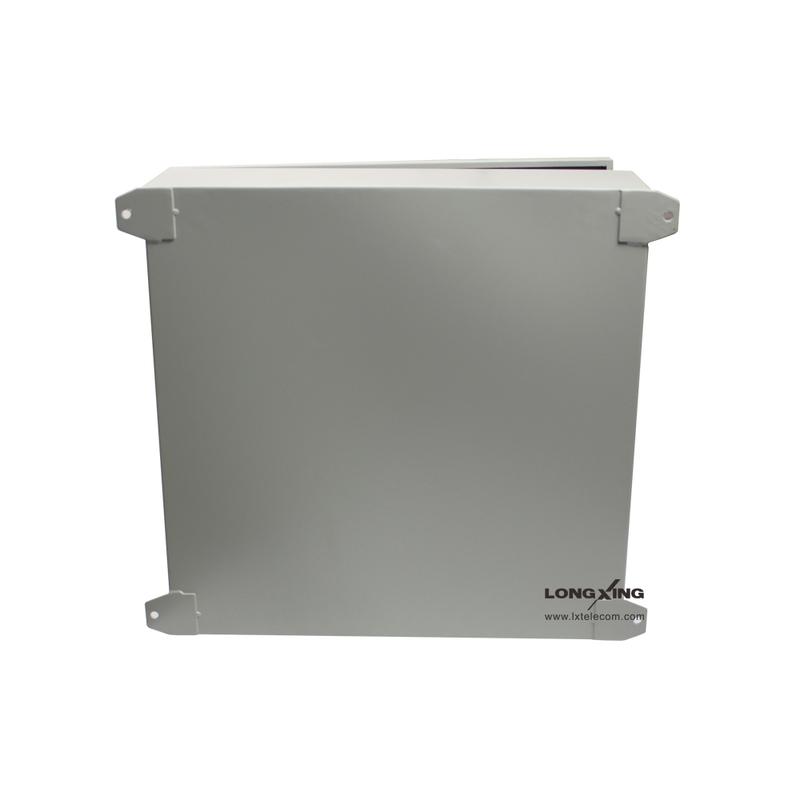

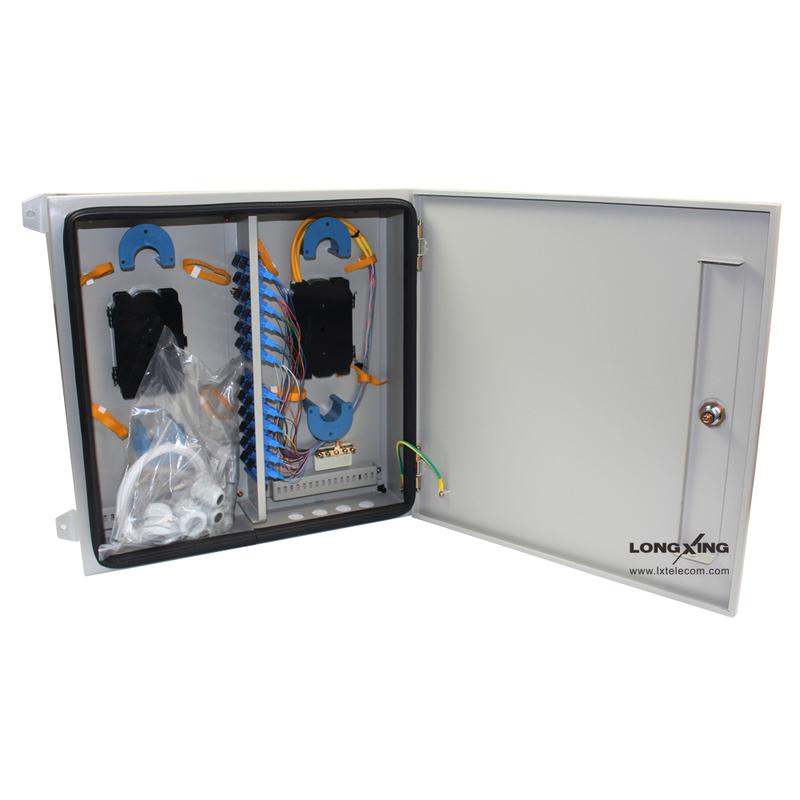

LongXing GP31-2M96A outdoor cross-connect cabinet is the best choice for cross-connecting outdoor optical cables. The cabinets offer ideal environment for fibers to be spliced and well organized under any outdoor environments.
Features
l The cabinet has functions of cable termination, splicing, distribution and cross-connection.
l Cold rolled steel with electrostatics plastic-spray surface
l Stainless steel with electrostatics plastic-spray surface
l Excellent waterproof and dustproof performance.

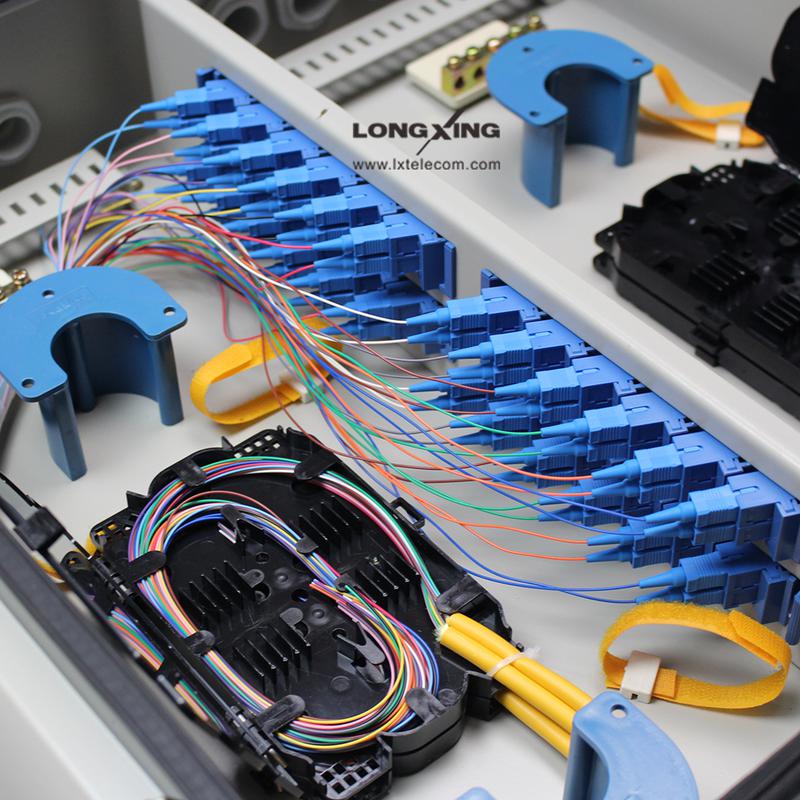

l The central board (for adapters) separates the incoming cables and the exiting cables.

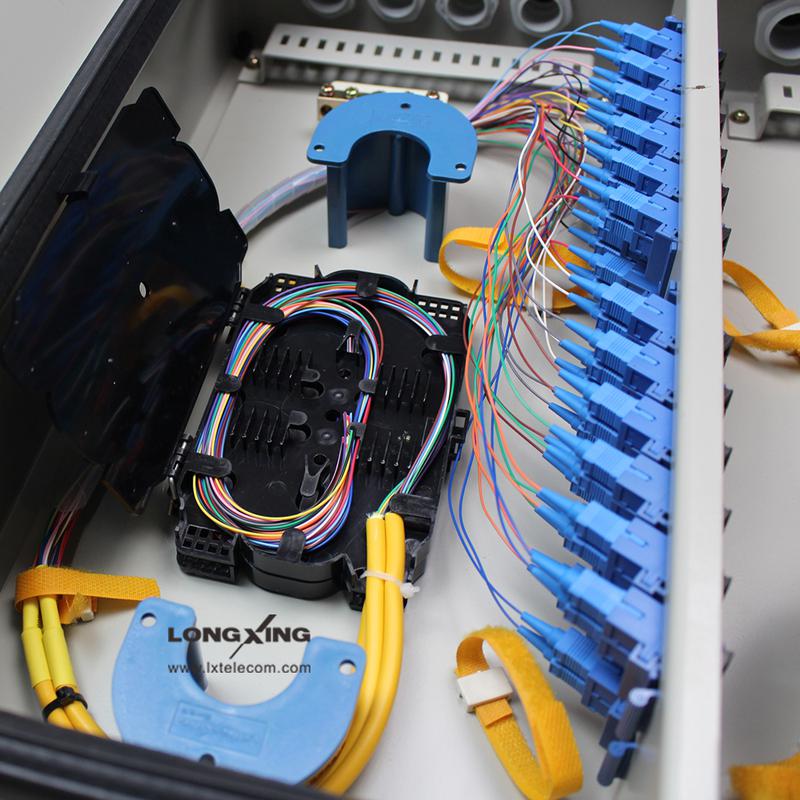

l Splice trays can be turned over, also can be pulled out to operate outside the box, easy to increase capacity (when space is enough).

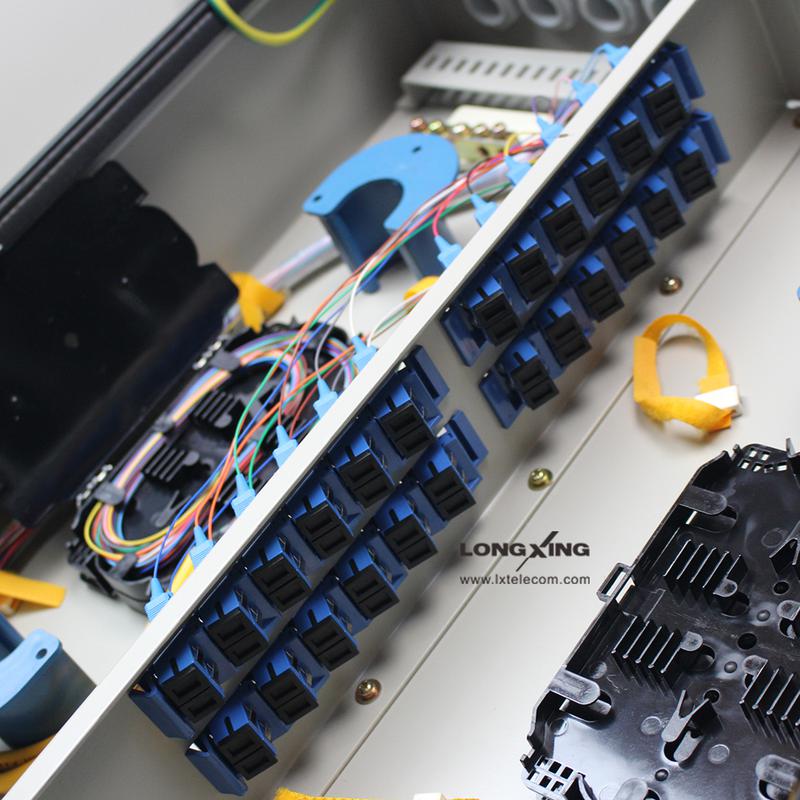

l Adapters are installed on our 6-position adapter holders, no screws need for installing any type adapters, which is very easy for future maintenance and keeps the transmission loss at low level.
Add To Quote List
Add To Compare
Inquiry Now
l Cold rolled steel with electrostatics plastic-spray surface
l Stainless steel with electrostatics plastic-spray surface
l Excellent waterproof and dustproof performance.
l The central board (for adapters) separates the incoming cables and the exiting cables.
l Splice trays can be turned over, also can be pulled out to operate outside the box, easy to increase capacity (when space is enough).
l Adapters are installed on our 6-position adapter holders, no screws need for installing any type adapters, which is very easy for future maintenance and keeps the transmission loss at low level.
| Dimensions and Capacity | |||
| Connector Type | Dimensions W x D x H (mm) |
Core Capacity | Cable Port (Max) |
| FC/SC Simplex Adapter | 480*480*110 | 12 | 8 |
| 480*480*130 | 24 | 8 | |
| 480*480*150 | 36 | 8 | |
| 480*480*170 | 48 | 8 | |
| 480*480*220 | 72 | 8 | |
| 480*520*270 | 96 | 8 | |
| LC Duplex Adapter | 480*480*110 | 24 | 8 |
| 480*480*130 | 48 | 8 | |
| 480*480*150 | 72 | 8 | |
| 480*480*170 | 96 | 8 | |
| Operation Conditions | |
| Temperature | -30ºC - 75ºC |
| Humidity | ≤90% (at 30 ºC) |
| Air Pressure | 70kPa – 106kPa |
| Specifications | |
| Insertion Loss (IL) | PC≤0.35dB, UPC≤0.30dB, APC≤0.20dB |
| Return Loss (RL) | PC≥45dB UPC≥50dB APC≥55dB |
| Shipping Information | |
| Package Contents | Terminal box, 1 unit; Installation accessories, 1 set |
| Material | Carton box |
| Lead Time | 10-15 working days normally |
