Fiber Optics Terminal Box GP31-1M12A
Overview

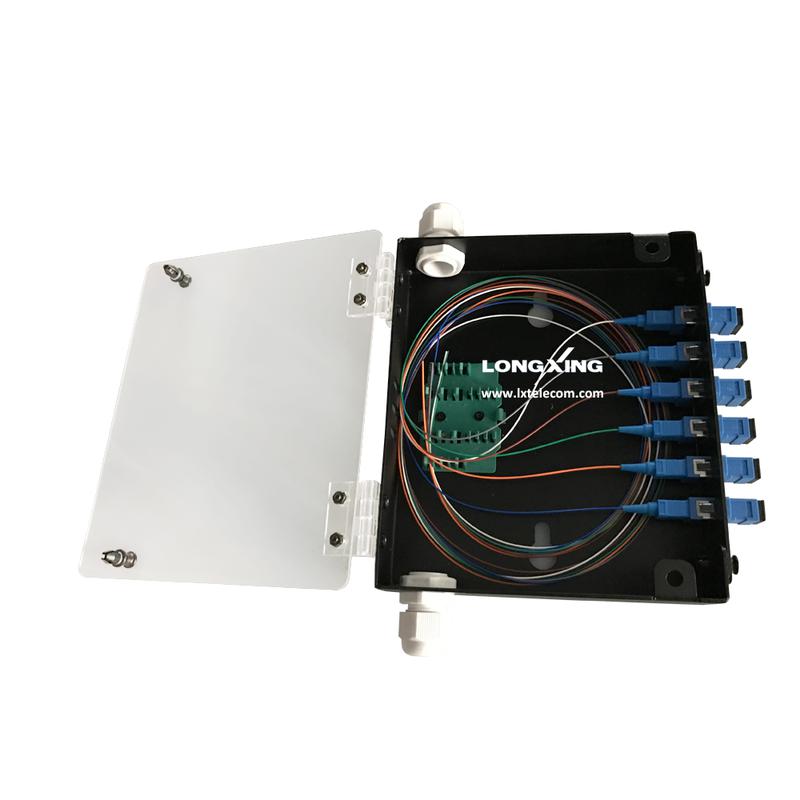

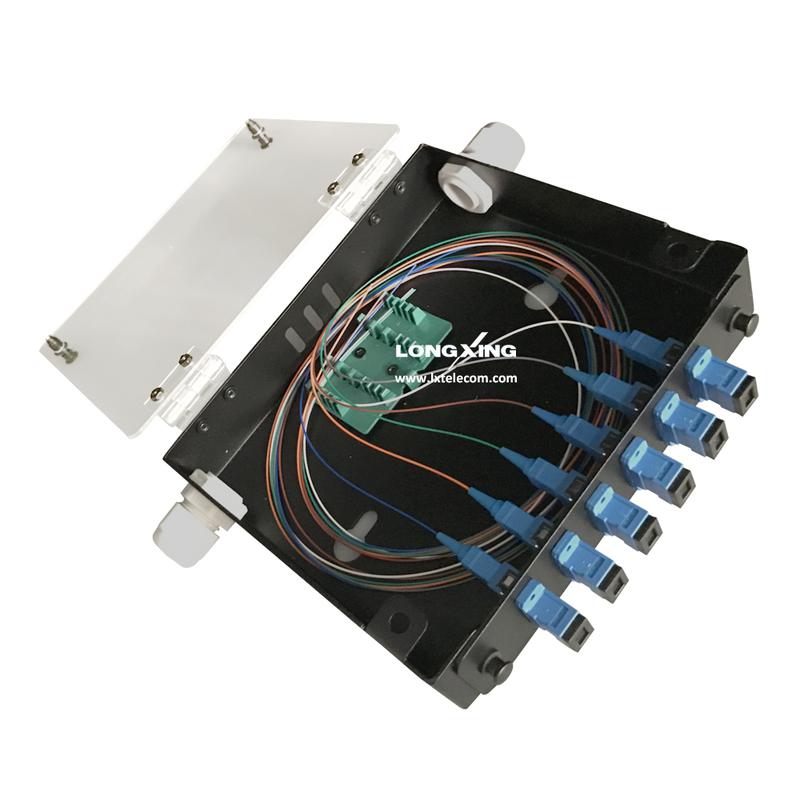

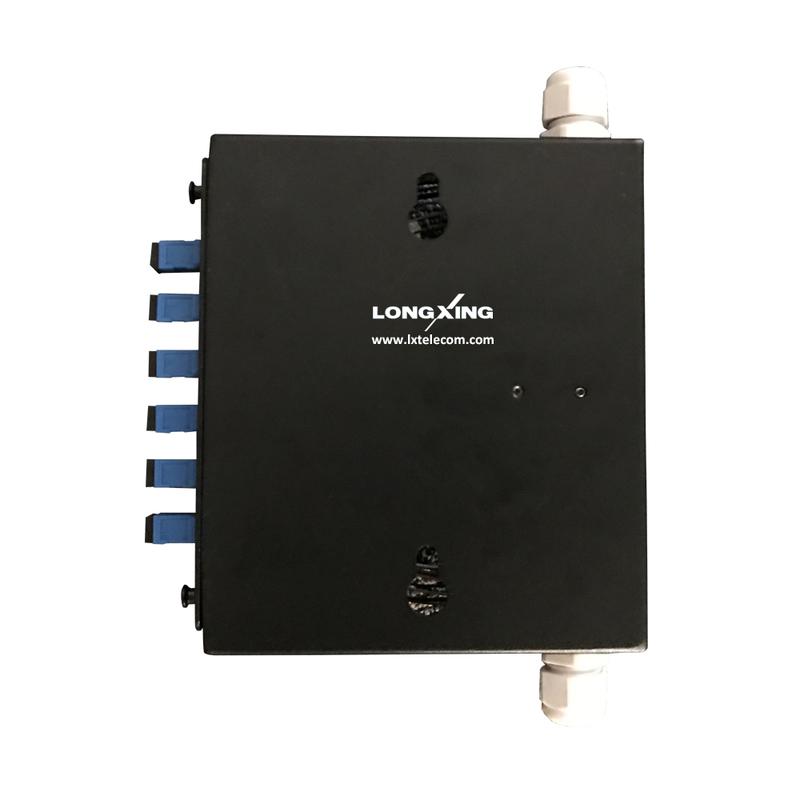

LongXing GP31-1M12A Optical Splice Box offers ideal environment for optical fibers
to be spliced and interconnected. It has small size but high density and comes with
an adapter plate that accommodates up to 12 fibers.
Features
l The box has functions of cable termination and splicing.
l Small size and customizable.
l Hinged glass door - pleasing and intuitive appearance.
l Material: Aluminum alloy - light weight.
l Easy installations: Wall mountable.
l Adapter plate for different types of adapters.
l Adoptable adapter types: FC, SC, LC/Duplex
| Dimensions and Capacity | ||
| Dimension(H x W x D）mm | Capacity for SC | Capacity for LC |
| 168 x 143 x 33 | 6 | 12 |
Customized designs available upon request.
| Operation Conditions | |
| Temperature | -30ºC - 75ºC |
| Humidity | ≤90% (at 30 ºC) |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Terminal box, 1 unit; Key, 1pc |
| Package Dimensions(W*H*D) | 200mm*170mm*80mm |
| Material | Carton box |
| Weight | 1.2 KG |
| Lead Time | 10-15 working days normally |
