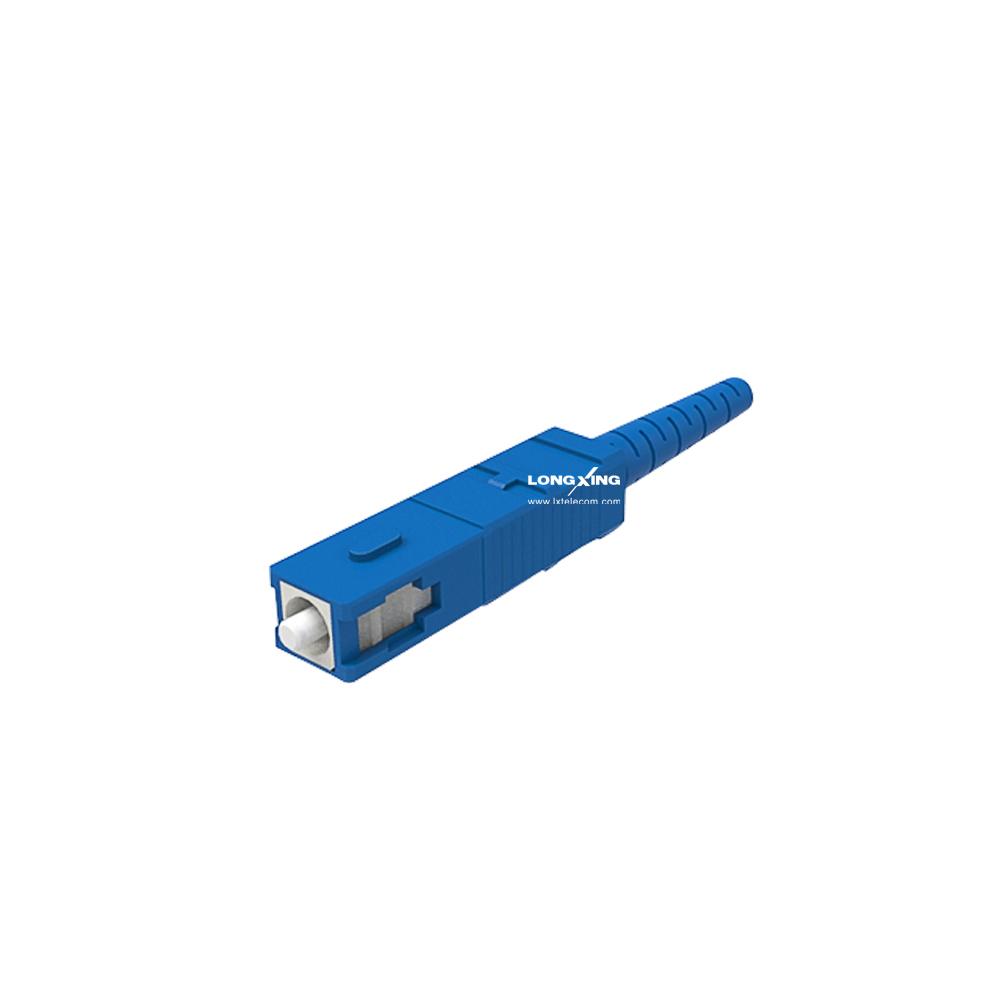

Fiber Optic Fast Connector SC
Overview
LongXing Fast connectors make fiber terminations fast, easy and reliable. These fiber optic
connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Assembly of the quickly assembly fiber connector requires only normal fiber preparation tools, no electrical power supply is needed
Features
l Compatible with standard SC connectors;
l Field installable, cost effective, user friendly;

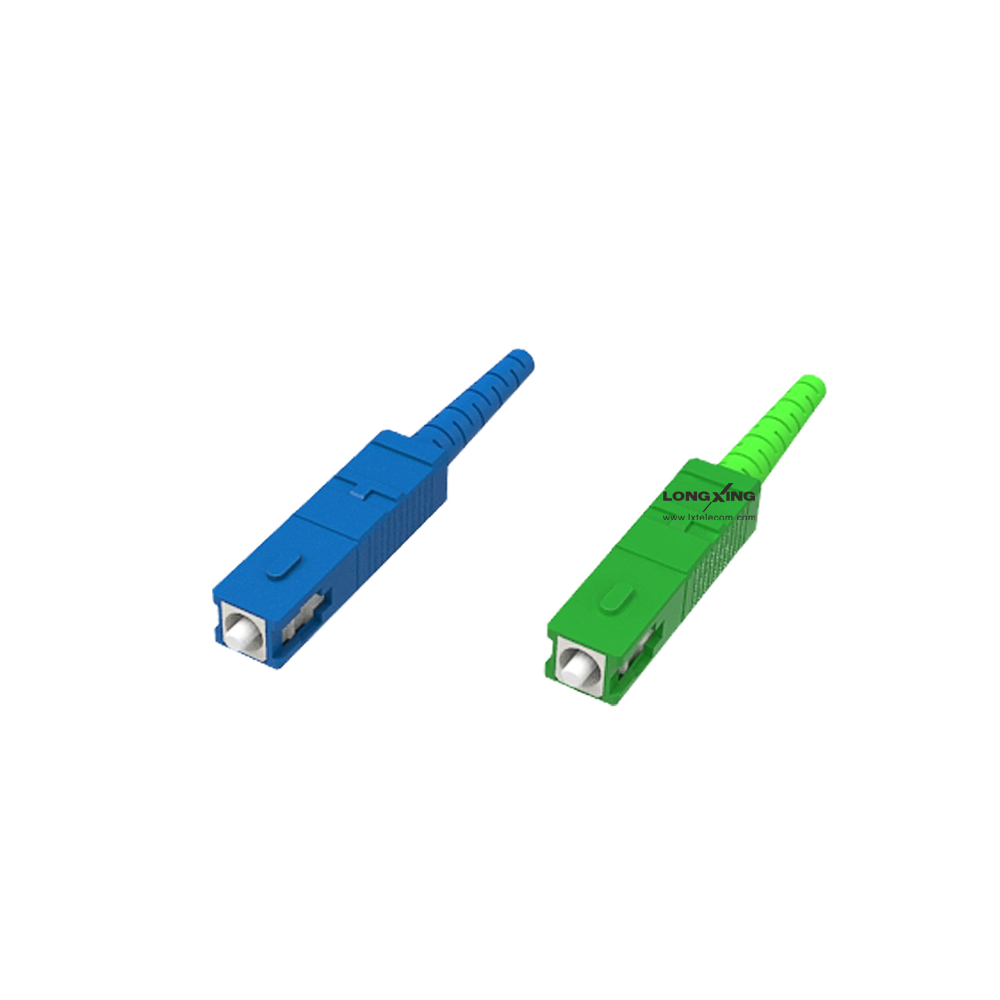

l PC, APC polishing optional;
l No electricity required;
l FTTH cable, fiber optic cable optional;
l Reliable durable and superior optical performance
l Low insertion loss and high return loss
l Stable capability and high reliability
l Excellent mechanical capability
Add To Quote List
Add To Compare
Inquiry Now
l Field installable, cost effective, user friendly;
l PC, APC polishing optional;
l No electricity required;
l FTTH cable, fiber optic cable optional;
l Reliable durable and superior optical performance
l Low insertion loss and high return loss
l Stable capability and high reliability
l Excellent mechanical capability
| Highlights |
| No-epoxy/no-polish or other consumables required Quick and easy installation, less than one minute per connector on average |
| 100 percent factory tested for insertion loss Typical insertion loss of 0.2 dB for UPC and 0.3 dB for APC connectors |
| Factory-polished end face Low insertion loss and high-performance return loss |
| Reliable, proven mechanical splice technology Over 70 million connectors deployed in various applications |
| No need for electrical power for ovens or lights Reduces complexity |
| Angled Fiber Stub Inside all OptiSnap connectors regardless of polish to maximize back reflection performance |
| Standards | |
| Intermateability | Connectors are FOCIS Compliant with TIA/EIA 604- 3 (SC), FOCIS 10 (LC) |
| Approvals and Listings | Passed EIA/TIA 568-B.3 |
| Design and Test Criteria | Telcordia GR-1209 and GR-1221 |
| Technical Specifications | |
| Insertion Loss | Average ≤ 0.2dB，Max ≤ 0.4dB |
| Return Loss | UPC ≥ 40dB, 55dB typical at 25 degrees C + 5degrees APC ≥ 55dB, 60dB typical at 25 degrees C +/- 5degrees |
| One-Time Assembly Yield | ≥ 97% |
| Assembly Repeatability | ≥ 5 times |
| Average Assembly Time | ≤ 3 minutes |
| Life-Time | ≥ 30 years |
| Tensile Strength | ≥ 30N（2.0x3.0 drop cable.） |
| Operation Temperature | -40℃~+85℃ |
