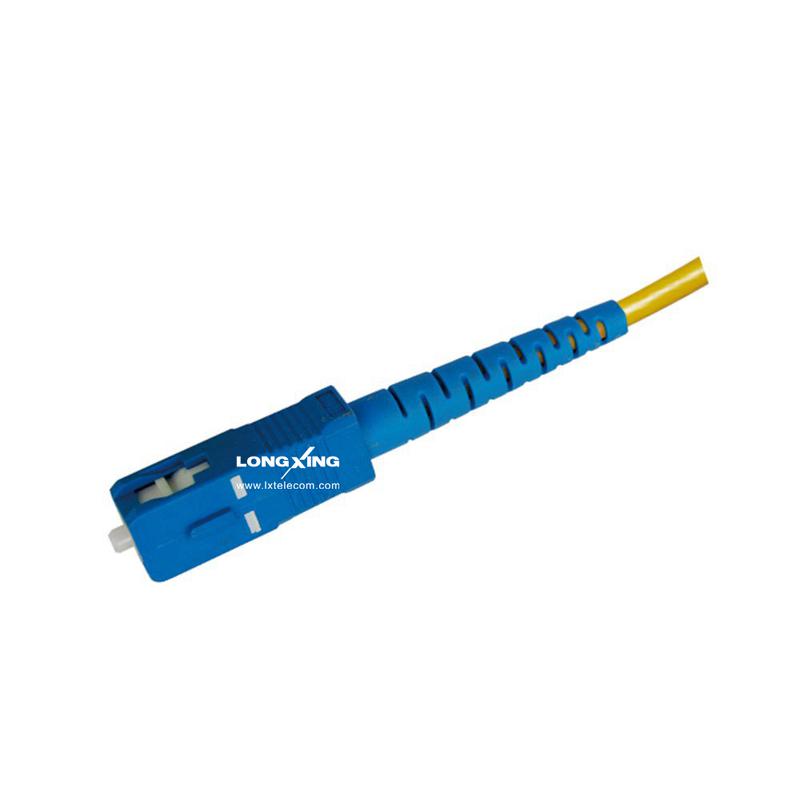

Fiber Optic Connector SC
Overview
The SC connectorsr are the most used set for modern day optical fiber systems. With the audible click locking mechanism and pull proof design this connector provides a secure interconnect.
Features
l High return loss, Low insertion loss
l Push-and-pull structure, convenient for operation;
l Split zirconia (ceramic) ferrule is adopted.
l Available fiber diameter: 0.9mm, 2.0mm, 3.0mm
l Usually mounted in a distribution panel or wall box .
l The connectors are color coded allowing easy identification of the connector type.

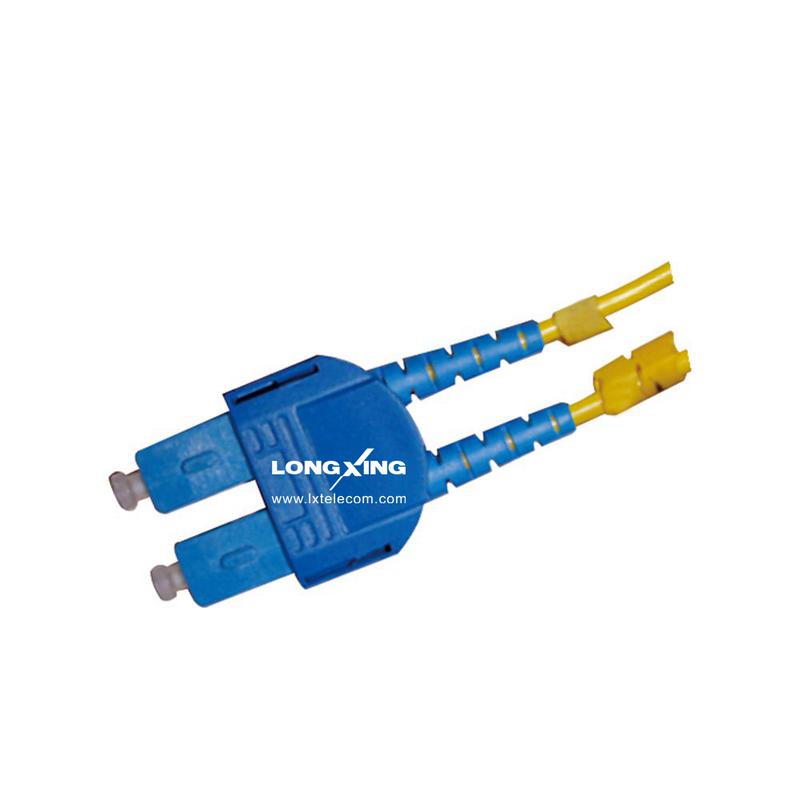

l Available with single-core & multi-core patch cords and pigtails.
Add To Quote List
Add To Compare
Inquiry Now
l Push-and-pull structure, convenient for operation;
l Split zirconia (ceramic) ferrule is adopted.
l Available fiber diameter: 0.9mm, 2.0mm, 3.0mm
l Usually mounted in a distribution panel or wall box .
l The connectors are color coded allowing easy identification of the connector type.
l Available with single-core & multi-core patch cords and pigtails.
| Technical Specifications | |||

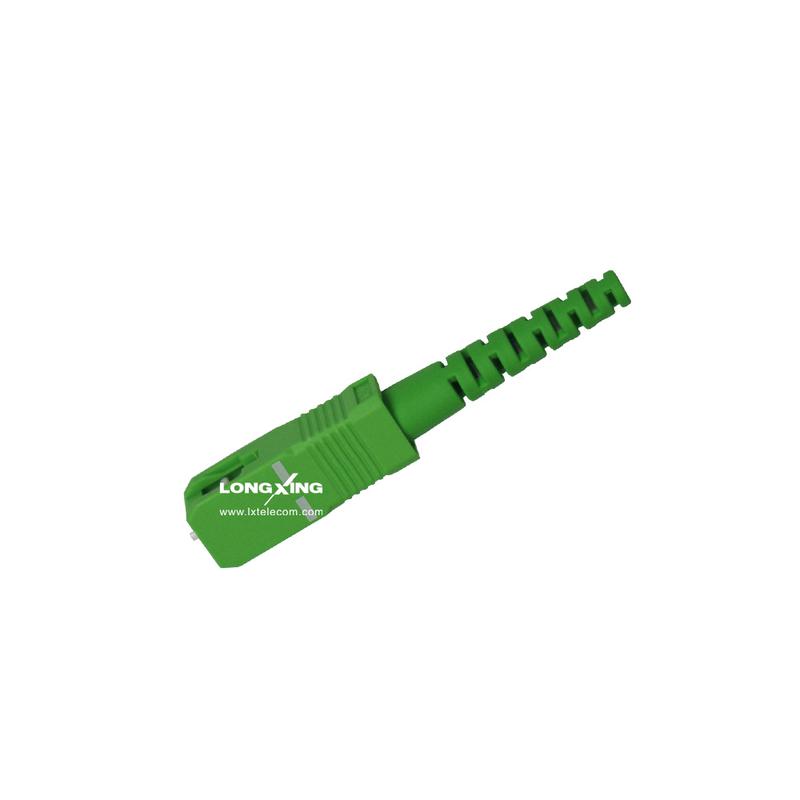

| Parameters | SC/PC | SC/UPC | SC/APC |
| Working Temperature (°C) | -25— +75 | ||
| Insertion Loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss( dB) | ≥45 | ≥50 | ≥60 |
