Compact Type Busbar Trunking System FCM-II
Overview

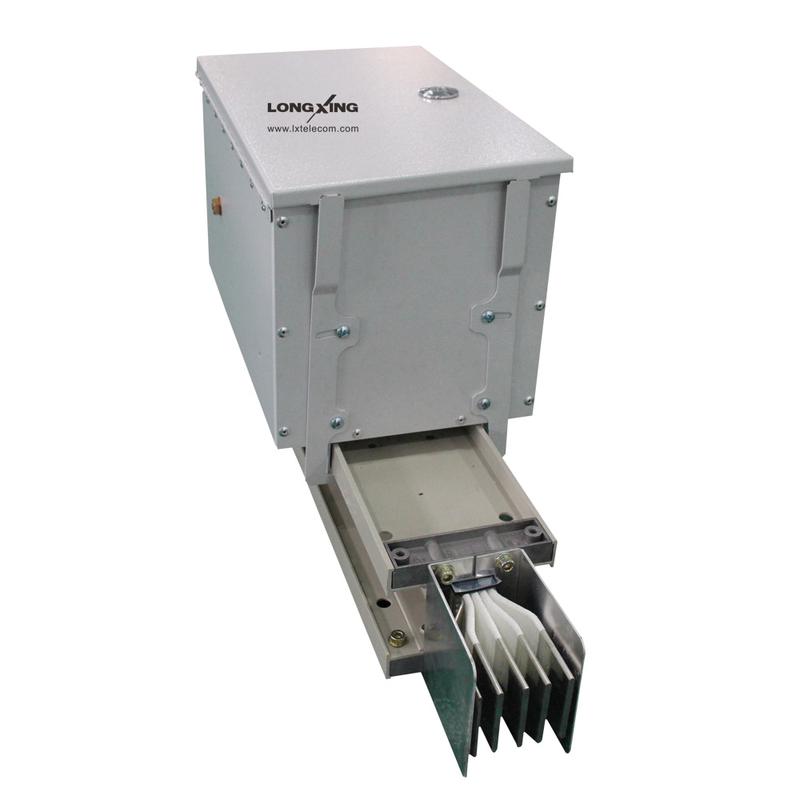

LongXing FCM-II compact type busbar system fully combined with the Chinese electricity environment, enjoys elaborate R&D, safe and reliable performance, and also attractive appearance.The product conforms to GB7251 and IEC60439 standard, with the rated voltage 1000V, rated current ranges from 400A to 6300A, 16A to 1250A plug-in current, and the max protection level IP65, it can be applicable to 3P3W, 3P4W and 3P5W syetem etc. FCM-II enjoys the best overal performance in low voltage busbar field, and gets a wide use in large commercial plaza, high-rise buildings, intelligent building, gymnasium, industrial factories, hospitals and other important occasion.
Features
l Total compact length (including plug-in):
² Low impedance with lower line loss
² Small size, space saving
² Fast heat dissipation capacity with lower temperature-rise.
² Longer service life.
² Conducting heat dissipation
² Load capacity is not affected by installation method
² No hollow structure, no "chimney effect".
l Plug-in and joint pack are phase dislocation protected, ensuring correct installation phase sequence.
l Automatic riveted assembly: High efficiency, fast delivery. Stable processing quality. Better electrical continuity of enclosure .
l Various diversion units: Layout can adapt to different site environment.
