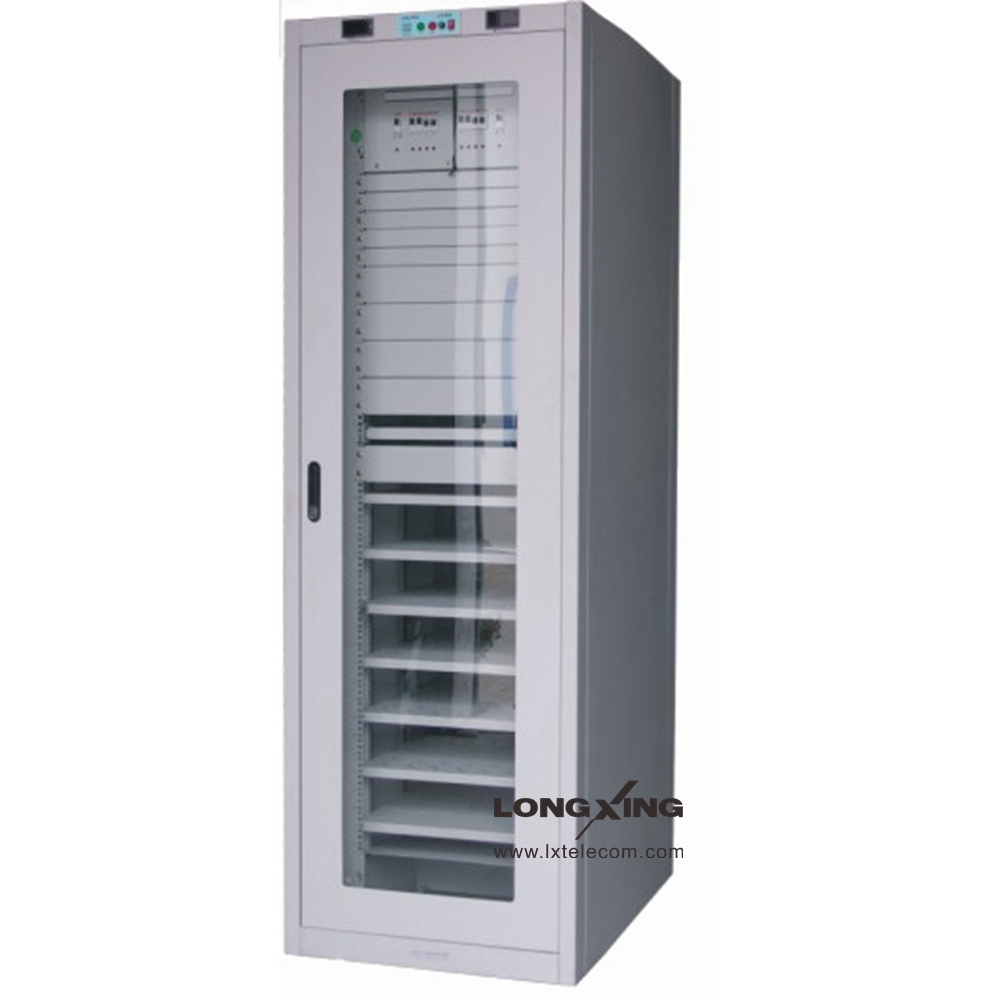

Network Rack Cabinets NPX06-Z7
Overview
NPX06-Z series network cabinets are designed and manufactured in LongXing’s ISO9001 registered facility, which are fully qualified to IEC297.1, IEC297.2 and GB/T3047.2-92 standards. This cabinet is currently being widely used for housing of standard electrical equipment and server in indoor conditions.
Features
l Top quality steel with cover by electrostatic painted ensures the strong body and pleasing appearance.
l The cabinets are classified as wide and narrow racks.
l Two types of structures for easier installation and maintenances:
l Closed type: Front and back doors, quick release left and right side panels;
l Open type: Without front or back doors, only duty frame.
l Grounding kit and warn unit available.
l Full height cable tray.
l Front door: glass door;
l Back door: full extreme circle perforated back door;
l High density of the circle holes in the panel ensures maximum ventilation.
l Outtake is available.
Add To Quote List
Add To Compare
Inquiry Now
l The cabinets are classified as wide and narrow racks.
l Two types of structures for easier installation and maintenances:
l Closed type: Front and back doors, quick release left and right side panels;
l Open type: Without front or back doors, only duty frame.
l Grounding kit and warn unit available.
l Full height cable tray.
l Front door: glass door;
l Back door: full extreme circle perforated back door;
l High density of the circle holes in the panel ensures maximum ventilation.
l Outtake is available.
| Dimensions and Capability | ||||
| Height (mm) |
Width (mm) |
Depth (mm) |
Capacity | Color |
| 2600 | 700 | 600 | Enter the accessroies required | White/ Gray/ Black/ Other colors may available |
| 2250 | 600 | 600 | ||
| Technical Specifications | |
| Inlet volt | 48Vdc (±10%) or 220Vac (±10%) |
| Transmission speed |
3.1kHz, 100Mbit/s, 155Mbit/s |
| Insulation resistance |
Pressurization between the frame high voltage protection earth device and the frame ≥ 3000Vdc for 1 minute without any breakdown or flashover; |
| Pressurization between any two conductors or between any conductor and frame earth ≥ 1000Vdc for 1 minute without any breakdown or flashover. |
|
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | ≤85% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Network rack cabinet 1 unit |
| Package Dimensions(W*H*D) | It depends on the dimensions of the product |
| Material | Wooden box |
| Weight | It depends on the dimensions of the product |
| Lead Time | 10-15 working days normally |
