Physical Specifications | |
Assembly Size (L*W*H) | 125mm*75.5mm*54mm |
Inlet | Antenna bolt |
Outlet | 7/8" feeder cable(27-29mm) |
Packing Dimension | 40PCS/CTN, 47.7cm*34cm*33.5cm |
Packing Gross/Net Weight | 9.5KGS/7.5KGS |
Technical Specifications | |
IP Rating | IP 68 |
Fire Rating | HB |
Temperature Range | -40--+65℃ |
Lifespan | >10 Years |
ROHS Compliant | Pass |
Solar Radiation Test | Pass |
Chemical Corrosion Test | Pass |
Rainstorm Resistance | 100E150mm/h |
Ice-snow Resistance | Up to 100mm, No water leakage, No shape change |
Optional Designs | |||
Part Number | Dimensions ( L*W*H) | Type | Specs |
JHKF-T11 | 198mm*88mm*55mm | In-line Transitions | Seal 1/2” jumper-to-7/8” feeder |
JHKF-T12 | 120mm*85mm*40mm | Grounding Kit Closure | Seal grounding kit for 7/8” feeder |
JHKF-T13 | 150mm*70mm*42mm | Antenna Transitions | Seal 1/2” jumper-to-antenna |

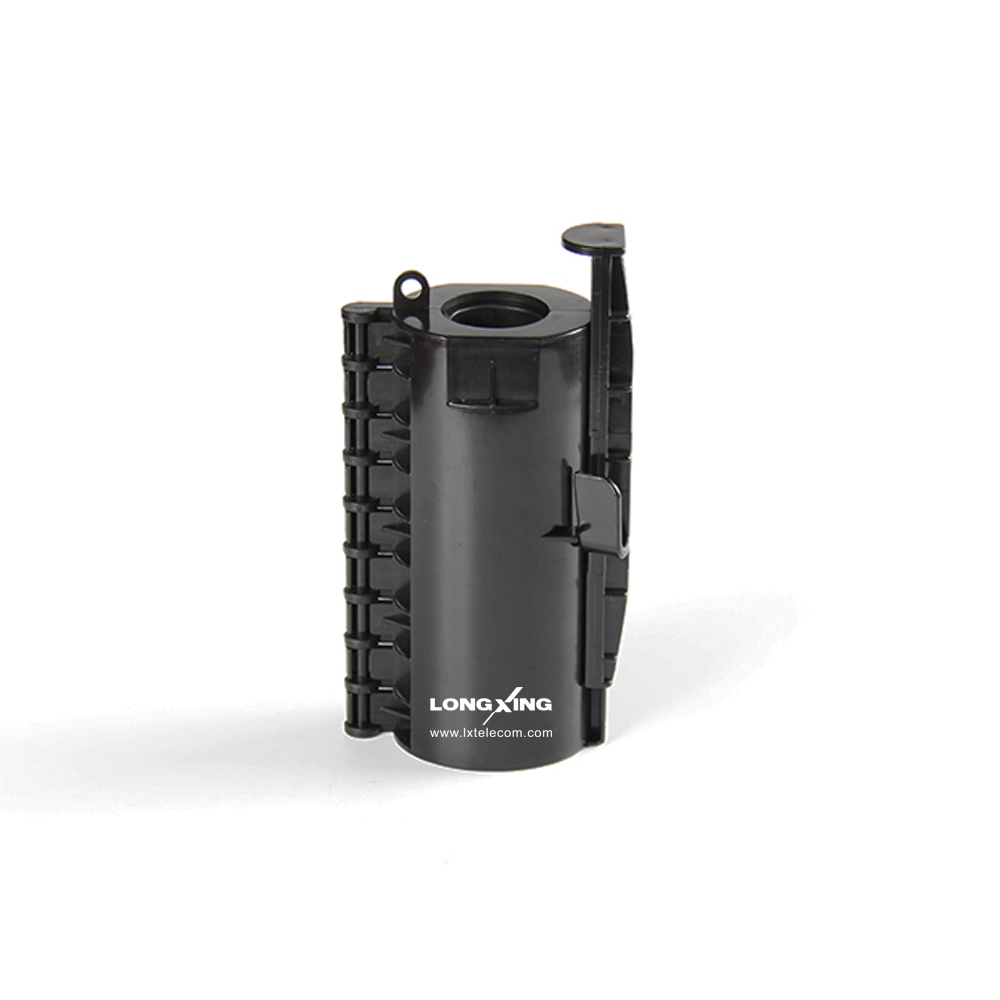

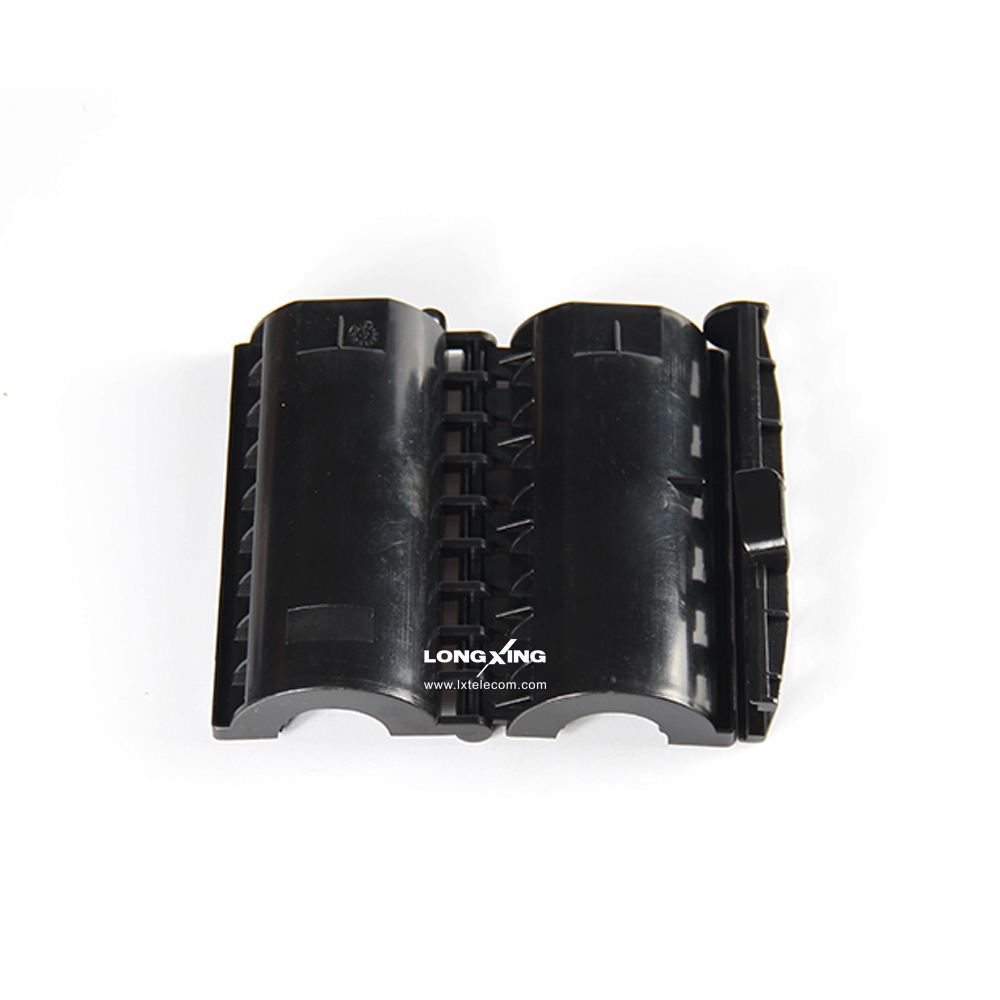

JHKF-T14 | 125mm*75.5mm*54mm | Antenna Transitions | Seal 7/8” jumper-to-antenna |
JHKF-T15 | 230mm*99mm*74mm | In-line Transitions | Seal 1/2” jumper-to-1-1/4” feeder |
JHKF-T16 | 255mm*105mm*85mm | In-line Transitions | Seal 1/2” jumper-to-1-5/8” feeder |
JHKF-T17 | 125mm*45mm*27mm | In-line Transitions | Seal jumper cable to antenna or RRU device in TD-SCDMA |
JHKF-T18 | 91.2mm*22.5mm*94.4mm | Antenna Transitions | Seal 1/2” jumper-to-antenna (Shorter one) |
