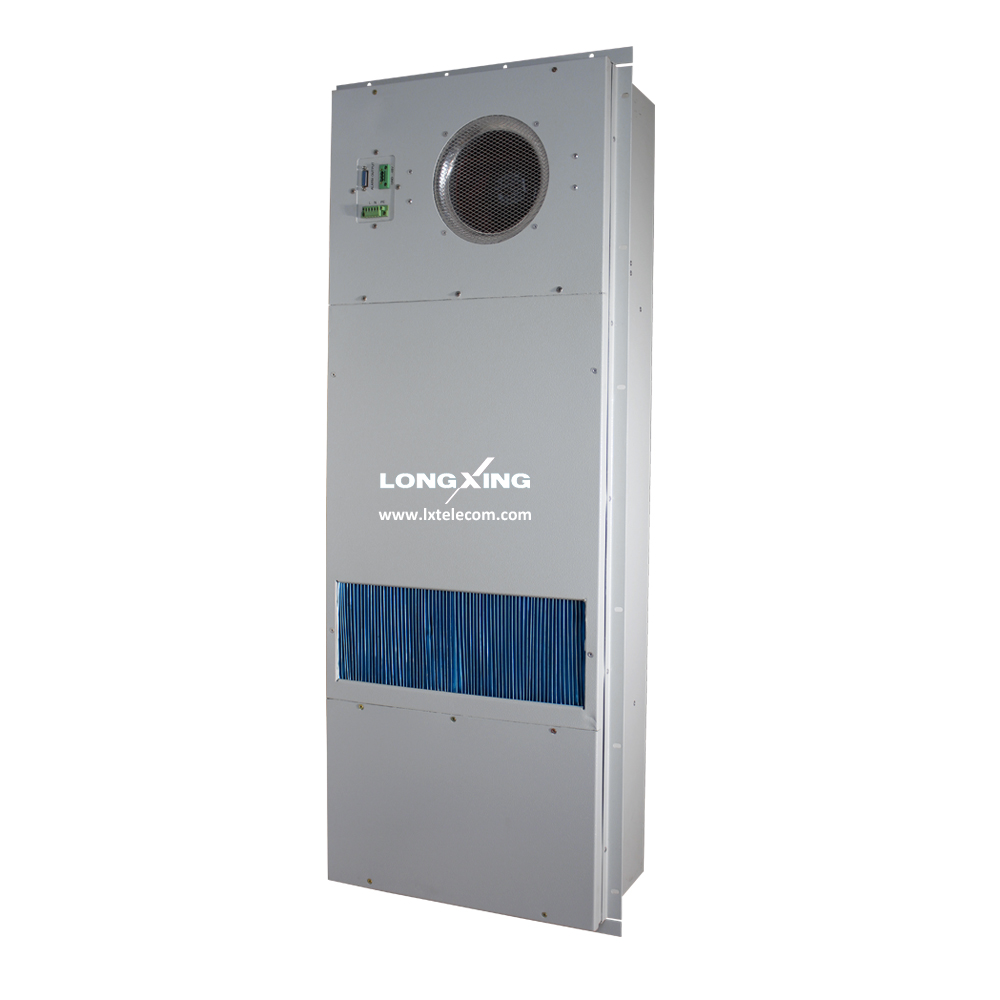

Plate Heat Exchanger LXRJH-15
Overview
LongXing LXRJH Series of heat exchangers can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc.
Features
l Remote measure, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function
l Strict process control and international brand parts deployed to ensure high quality and reliable of this product
l Multiple self protection design & Interchangeable monitoring software interface, RS485 communication(MODBUS protocol)
l Circulation fans stepless speed regulation function
l LED Display, all the settings can changed at the field
l The heating function is optional
l Dry contact alarm output,NO/NC optional
Add To Quote List
Add To Compare
Inquiry Now
l Strict process control and international brand parts deployed to ensure high quality and reliable of this product
l Multiple self protection design & Interchangeable monitoring software interface, RS485 communication(MODBUS protocol)
l Circulation fans stepless speed regulation function
l LED Display, all the settings can changed at the field
l The heating function is optional
l Dry contact alarm output,NO/NC optional
| Technical parameters | |
| Name | DC Cabinet Heat Exchanger |
| Code | LXRJH-15 |
| Mounting Method | Semi-embedded Mounting |
| Power Supply DC | 36~72 VDC |
| Rated Current DC | 3.8A |
| Start-up Current DC | 4.6A |
| Cooling Capacity | 150W/K |
| Fans | 2*DA22551/PWM |
| Fans Power Consumption | 190W |
| Internal Airflow | 18.8m³/min |
| Rated Voltage AC | 220VAC±20% |
| Frequency AC | 50~60±3Hz |
| Rated Current AC | 5.4A |
| Heater Power | 1000W |
| Working Temperature Range | -40℃~+65℃ |
| Noise Level | 50~65dB(A) |
| IP Grade | IP55 |
| Net Weight | 30kg |
| Dimensions(H*W*D)mm | 1300mmX506mmX231mm |
| CE&RoHS Compliant | Yes |
| Surface Treatment | Outdoor type powder coating Standard color：RAL7035 |
