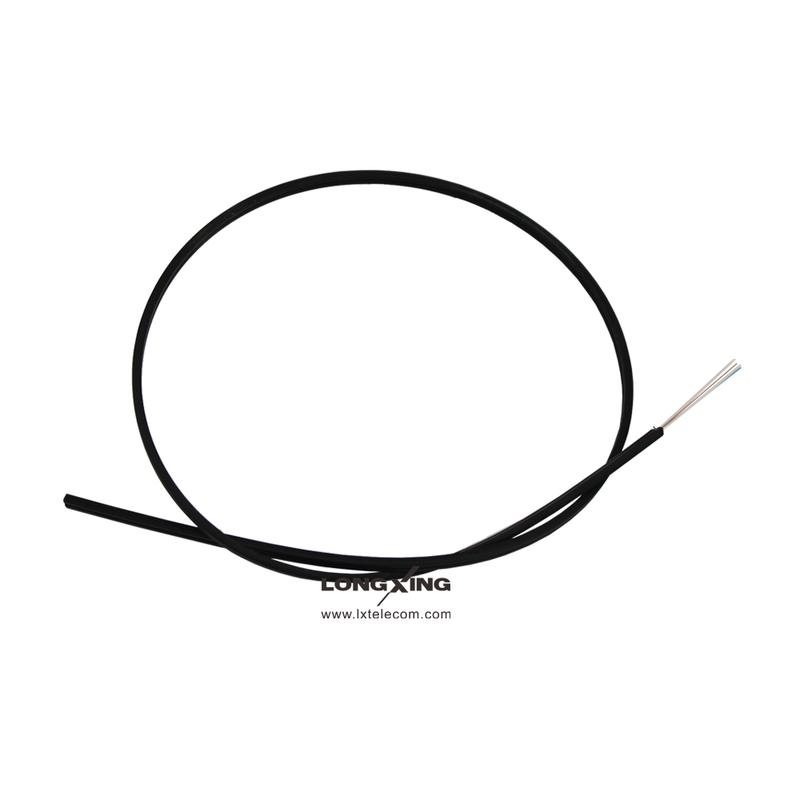

Drop Cable
Overview

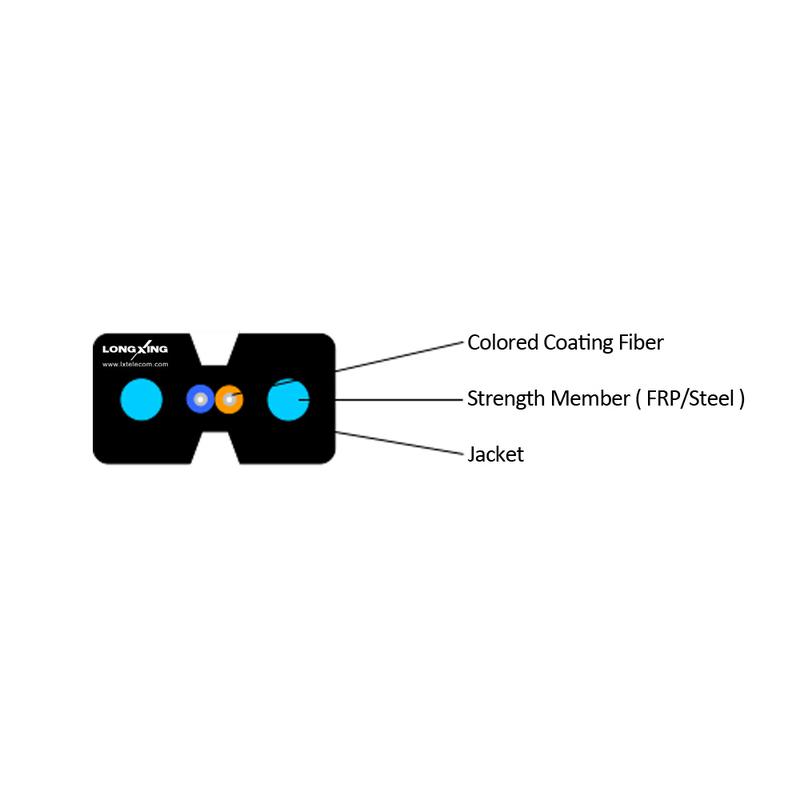

The optical fiber units is positioned in the center.Two stell wired or FRP are placed at the two sides.A steel wired as the additional strength member is also applied.Then the cable has a black color and white LSZH sheath.
Features
l Applicable for multi-level or high building with cable installed indoors;
l Small diameter and light weight;
l Small curvature radius, excellent performance of tension-resistant, anti-interference and against;
l Easy to peel and install inside buildings;
l LSZH, no metal materials;
l Simplex, duplex and multi-fiber available;
l Available patch cords connectors: SC/UPC, SC/APC.
Add To Quote List
Add To Compare
Inquiry Now
l Small diameter and light weight;
l Small curvature radius, excellent performance of tension-resistant, anti-interference and against;
l Easy to peel and install inside buildings;
l LSZH, no metal materials;
l Simplex, duplex and multi-fiber available;
l Available patch cords connectors: SC/UPC, SC/APC.
| Cable Parameters | ||||||||||
| Fiber Count |
Cable Dimension (mm) |
Cable Weight (kg/km) |
Tensile (N) |
Crush (N/ 100mm) |
Min. Bend Radius (mm) |
Range of Temperature (°C) |
||||
| Long Term |
Short Term |
Long Term |
Short Term |
Dynamic | Static | |||||
| 1~2 | 3.0×2.0 | 9.0 | 40/100 | 80/200 | 500/1000 | 1000/2200 | 60 | 30 | -20 ~ +60 | |
| Note: 1.All the values provided in the table, which are for your reference, are subject to change without notice; 2.The cable dimension and weight are subject to simplex cable of 250μm; 3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used; 4.The minimum bend radius (static) is 15mm when G657 fiber is used. |
||||||||||
| Technical Specifications | |||
| Parameters | SC/PC | SC/UPC | SC/APC |
| Working Temperature (°C) | -25 — +75 | ||
| Insertion Loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss( dB) | ≥45 | ≥50 | ≥60 |
| Endurance(Times) | ≥600 | ≥600 | ≥600 |
| Tensile strength (≥Φ1.0mm)(N) |
≥55N | ≥55N | ≥55N |
